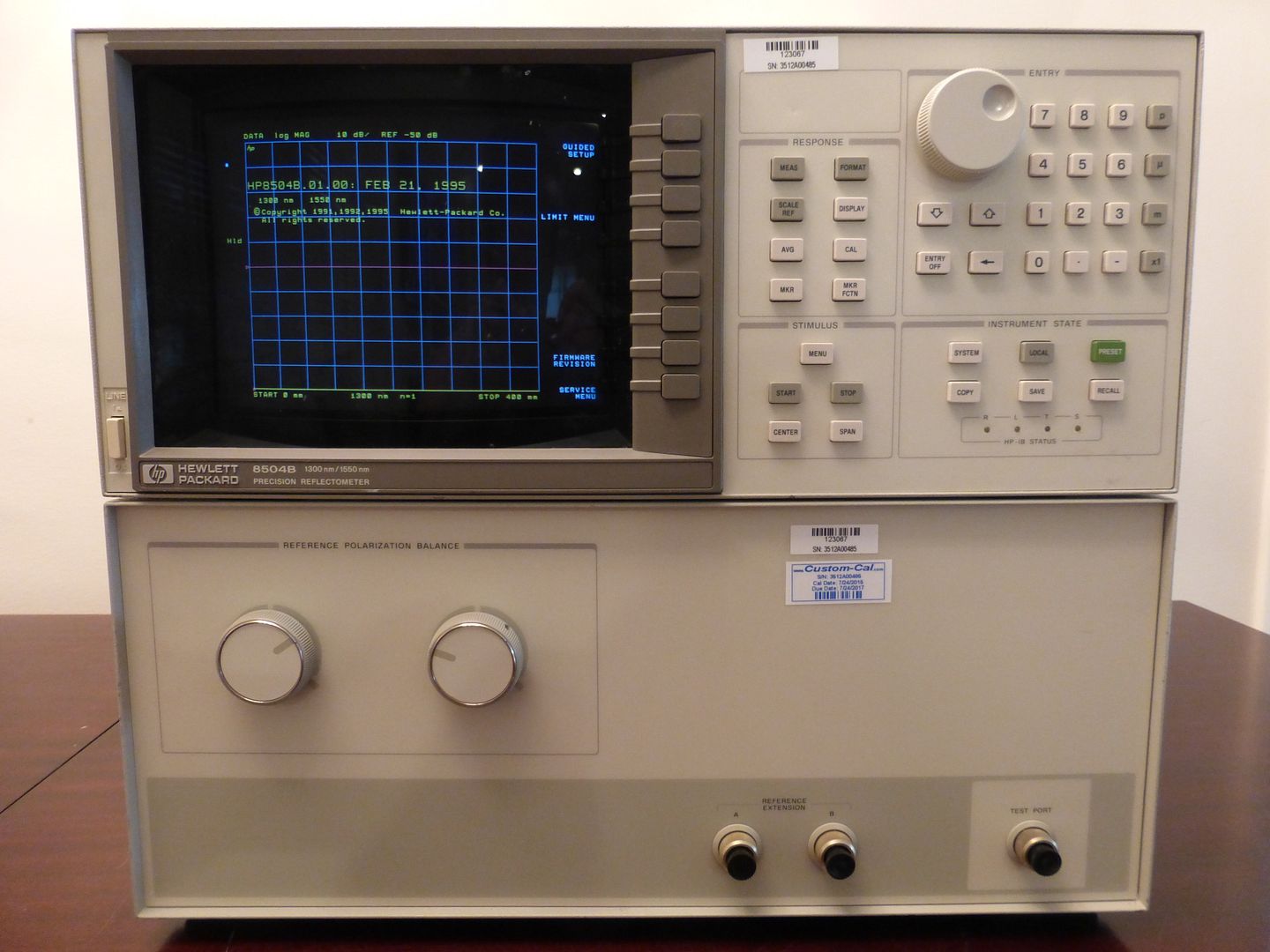

Agilent / HP 8504B 1300 to 1550nm Precision Reflectometer Lightwave System

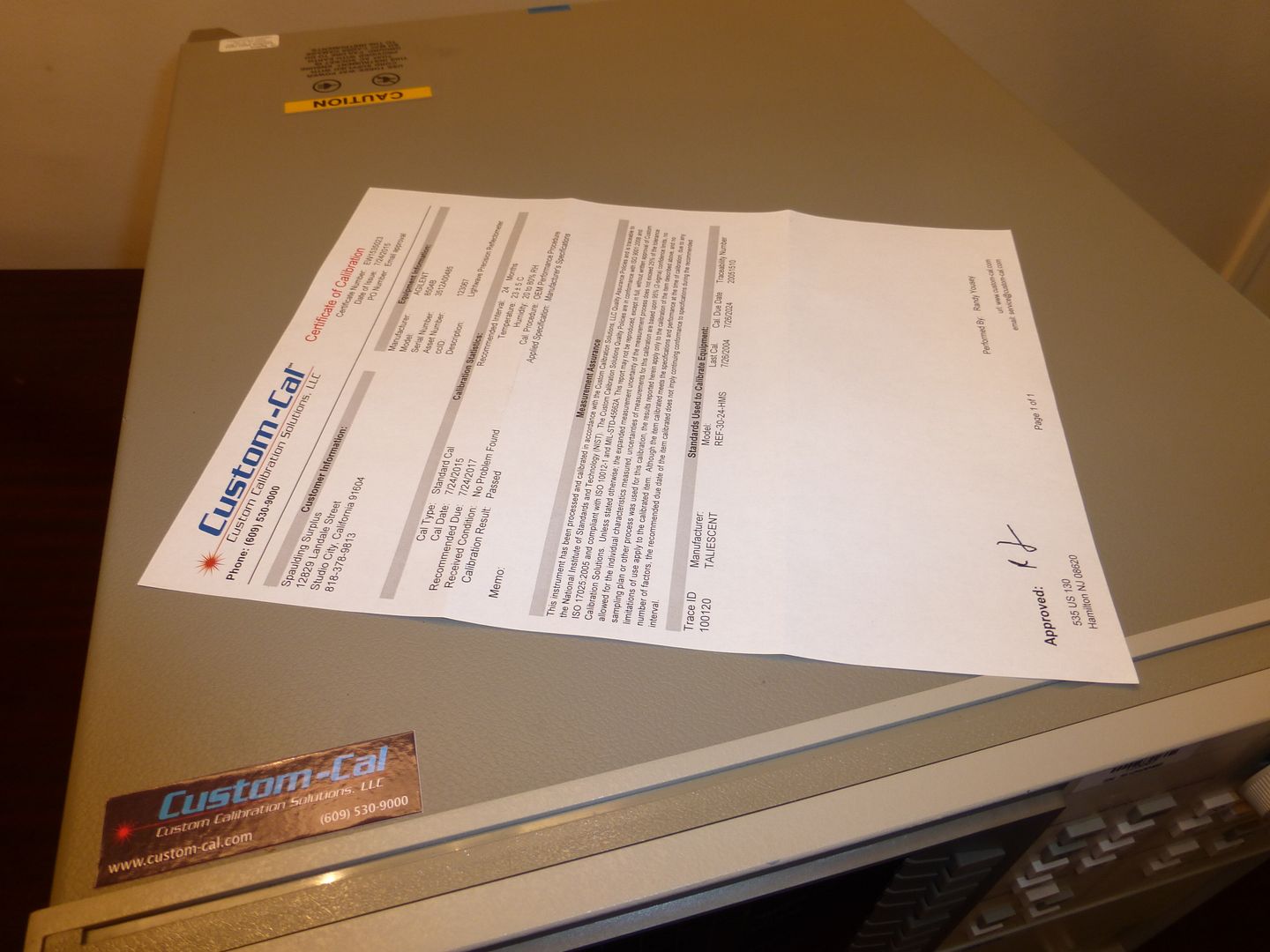

You are bidding on an Agilent / HP 8504B 1300 to 1550nm Precision Reflectometer Lightwave System. It comes complete with the standard interconnect cables and has been fully tested by an ISO17025 accredited lab!
The HP 8504B precision reflectometer can make accurate measurements using sm 9/125 micrometer fiber and components. Measurements range from reflections within lightwave components, differential path length failure mode analysis, differential propagation delay in multiple or birefringent devices and source coherence functions. There are two internal wavelength sources, 1300 and 1550 nm. Peak wavelengths for both sources can occur within +/- 30 nm of center. The spectral width for both sources is 55 nm. Return loss can be measured across a range from 10 to 80 dB on both wavelength sources to an accuracy of +/- 2 dB. For measurements of closely spaced reflections, the spatial resolution at 1300 nm is 17 micrometers. The spatial resolution at 1550 nm is 44 micrometers.
The 8504B can also measure two events at varying relative distances. For a measurement span of 1 to 10 mm, measurements are accurate to +/- 2% of span. For a measurement span of 10 to 400 mm, measurements are accurate to +/- 1% of span. The full measurement span is 1 to 400 mm, but can be extended with provided extension cables. The Agilent 8504B has low level spurious response, with levels >65 dB below largest reflection at 1300 and 1550 nm. The sweep speed is 18 mm/sec.
Features:
Return Loss Range:
1300 nm: 10 to 80 dB
1550 nm: 10 to 80 dB
Compatible Fiber: 9/125 um

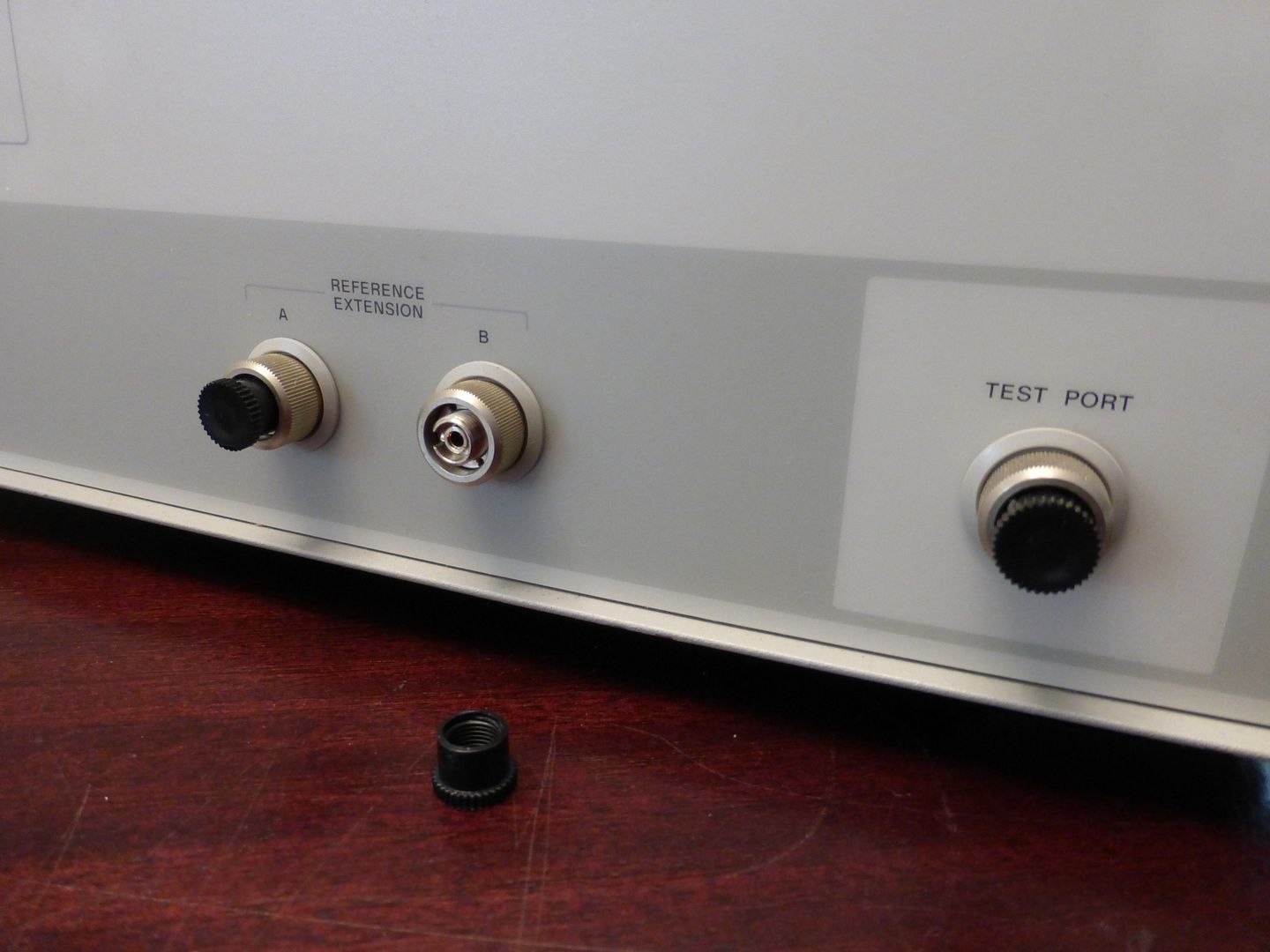

Connector Type: FC/PC
Sweep Speed: 18 mm/sec
Return Loss Accuracy: ±2.0 dB
Measurement Span: 1 to 400 (270) mm
Source Characteristics:
Peak Wavelength: 1308 nm ±30 nm; 1550 nm ±30 nm
Spectral Width (–3 dB) 55 nm
Average Power: –17 dBm
Two-Event Spatial Resolution:
1300 nm 25 (17) um
1550 nm 65 (44) um
Two-Event Spatial Accuracy:
1 to 10 mm ±2 % of span
10 to 400 mm ±1 % of span

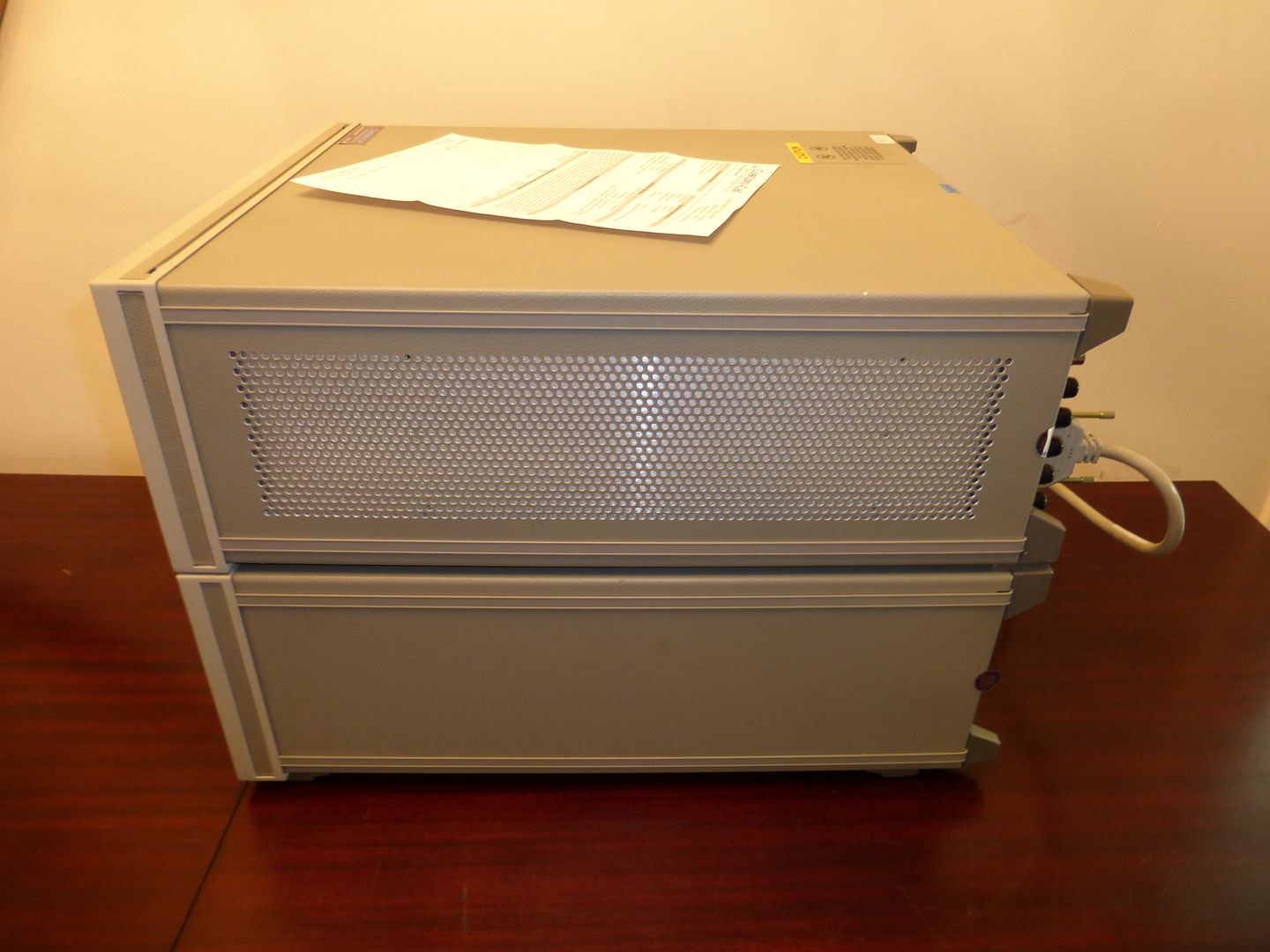

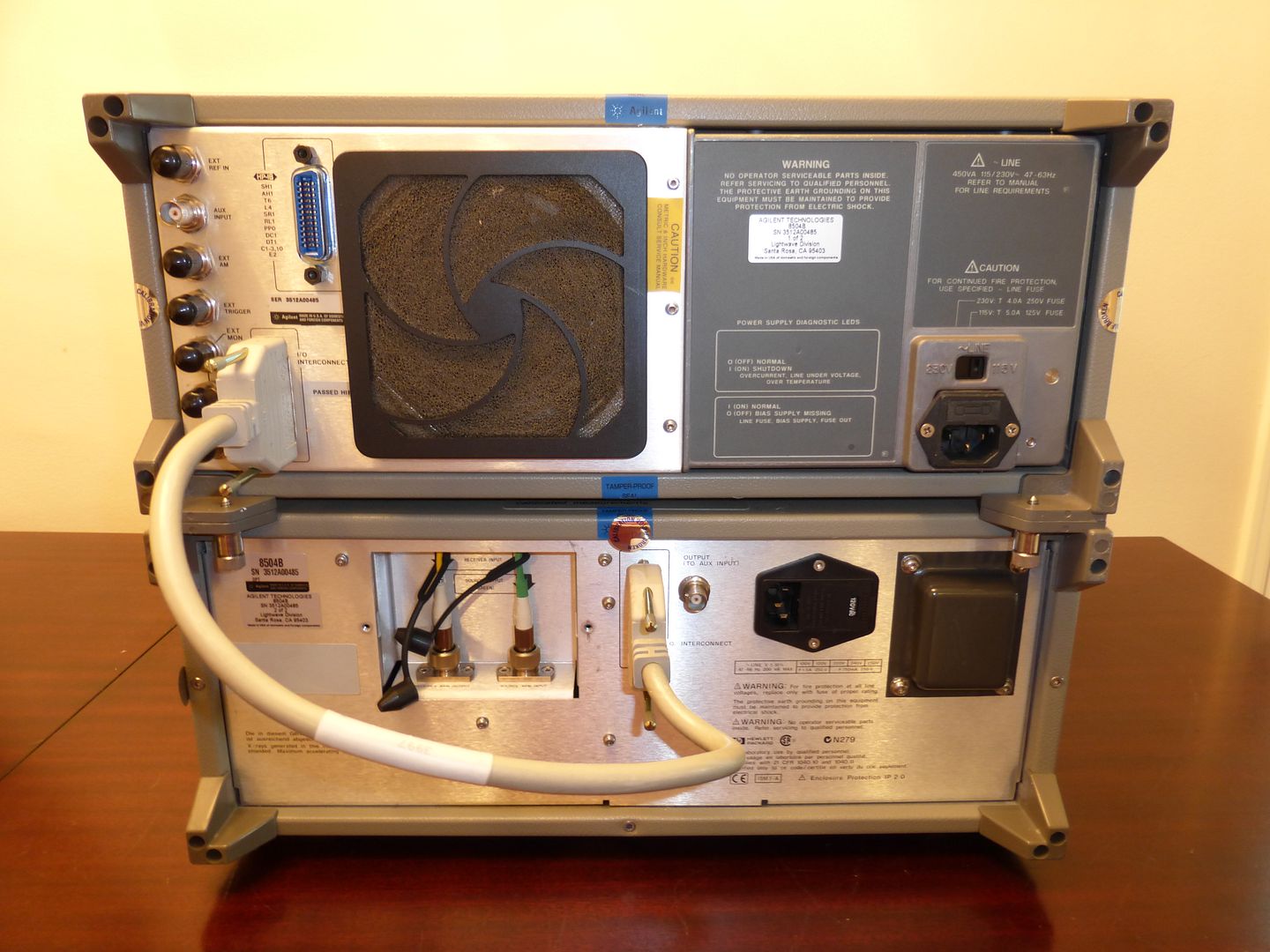

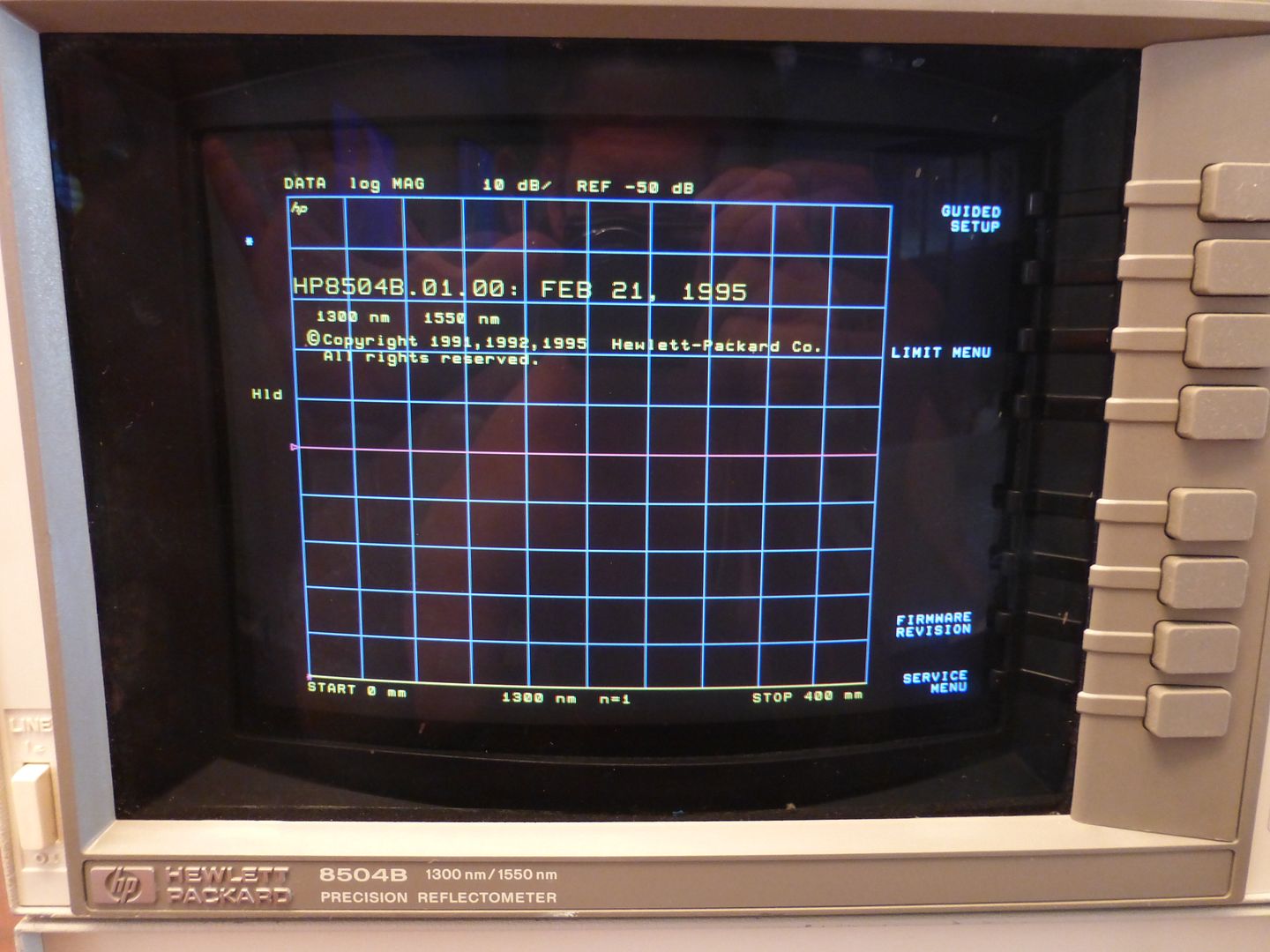

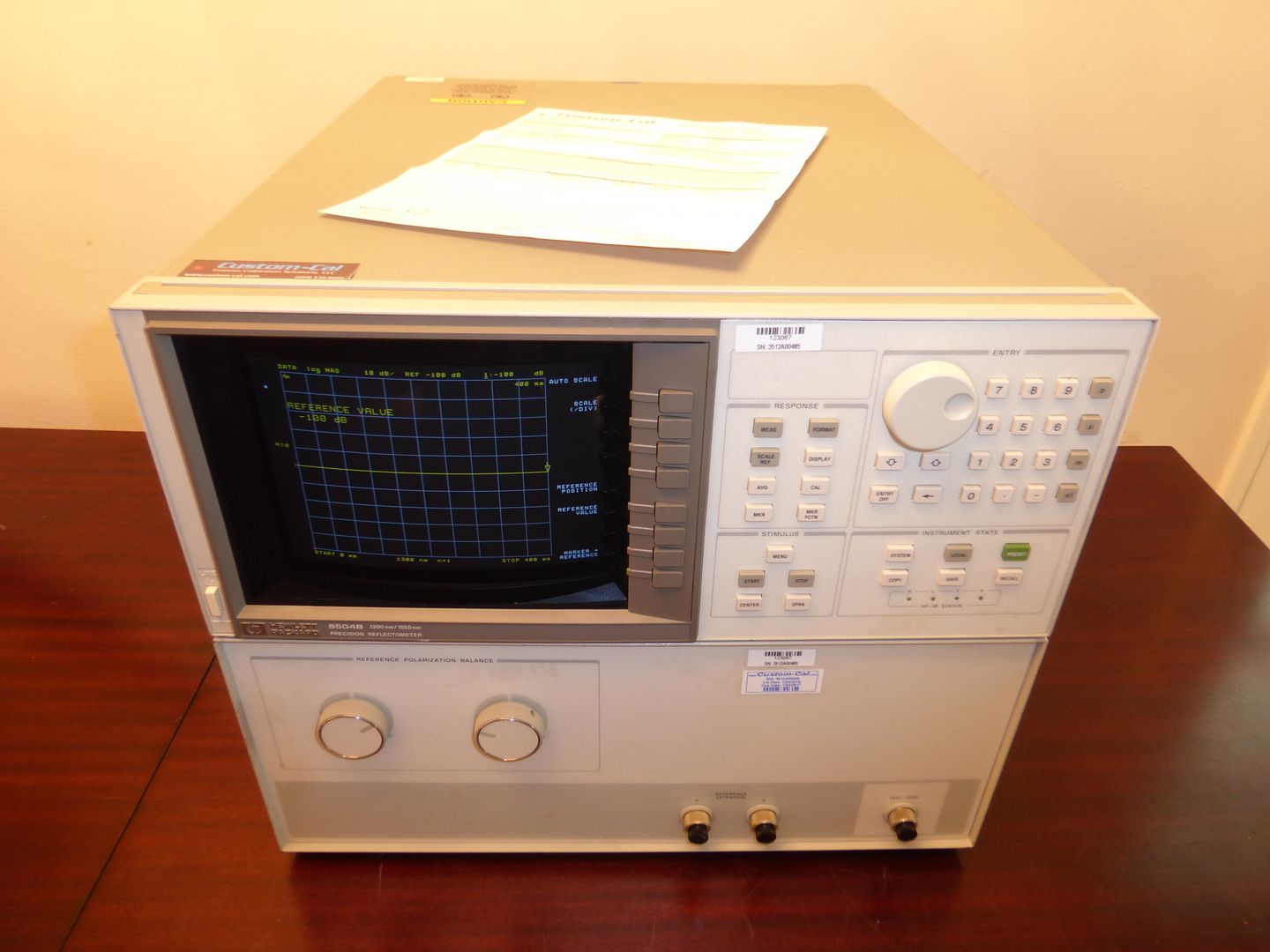

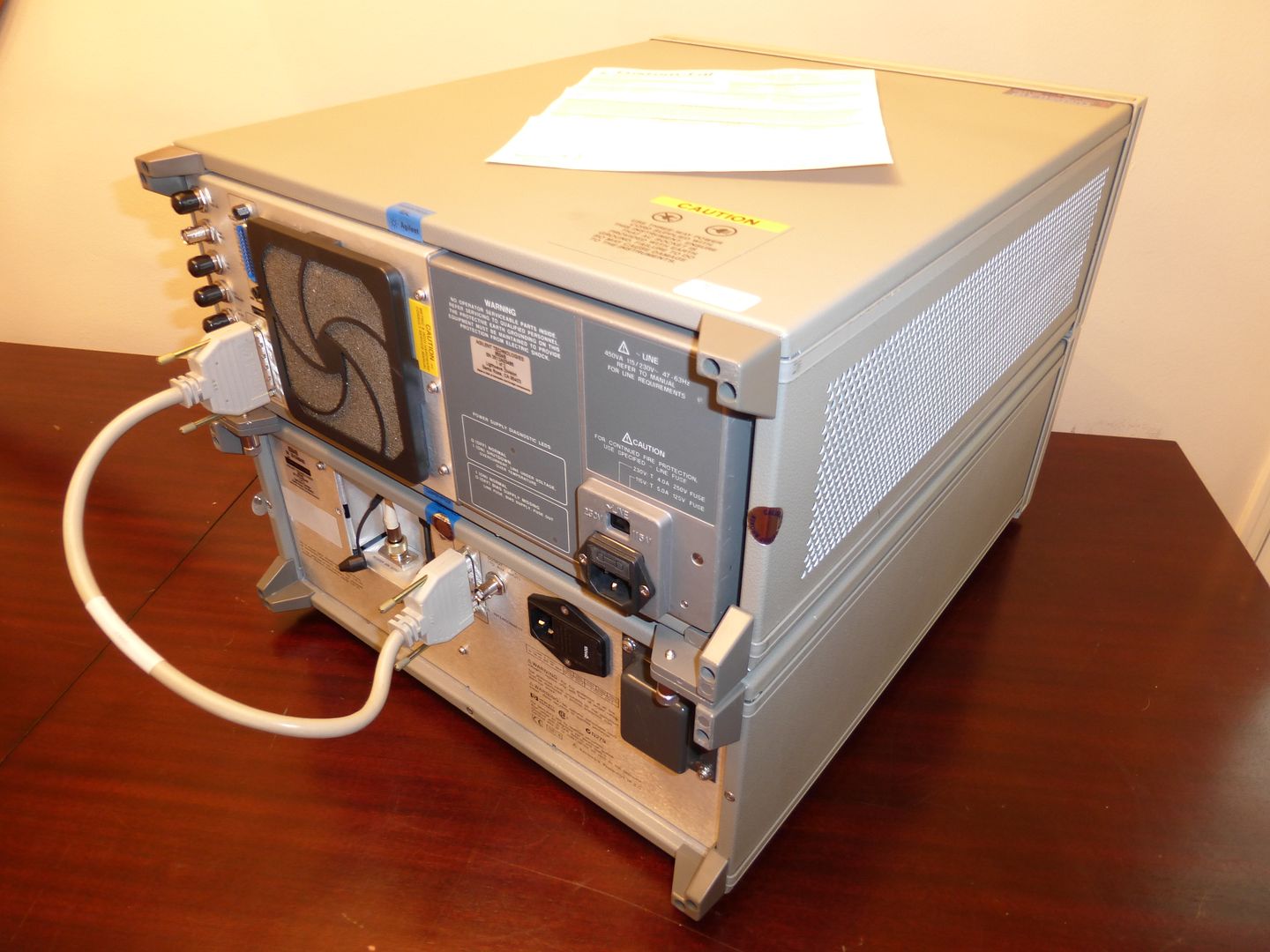

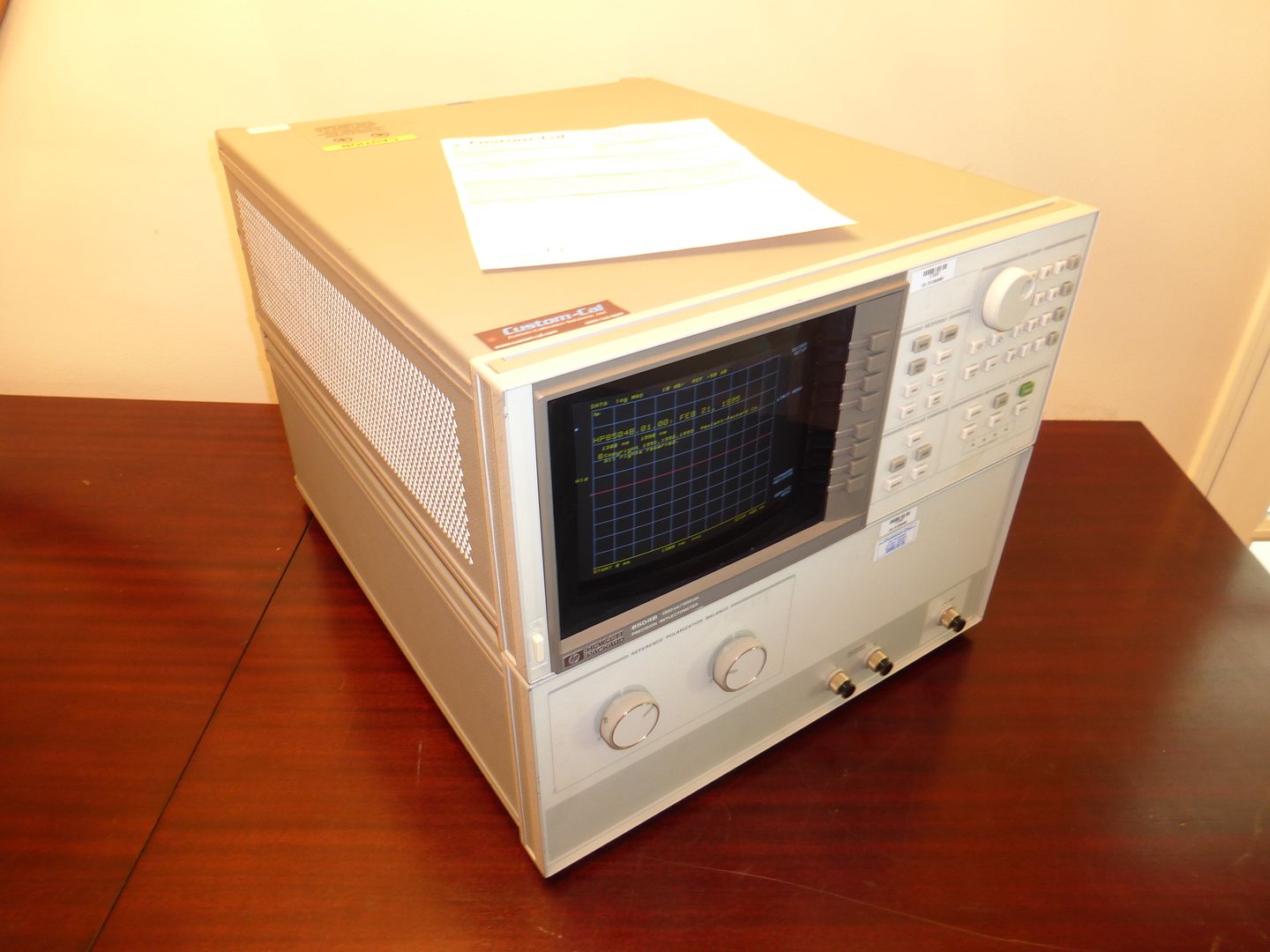

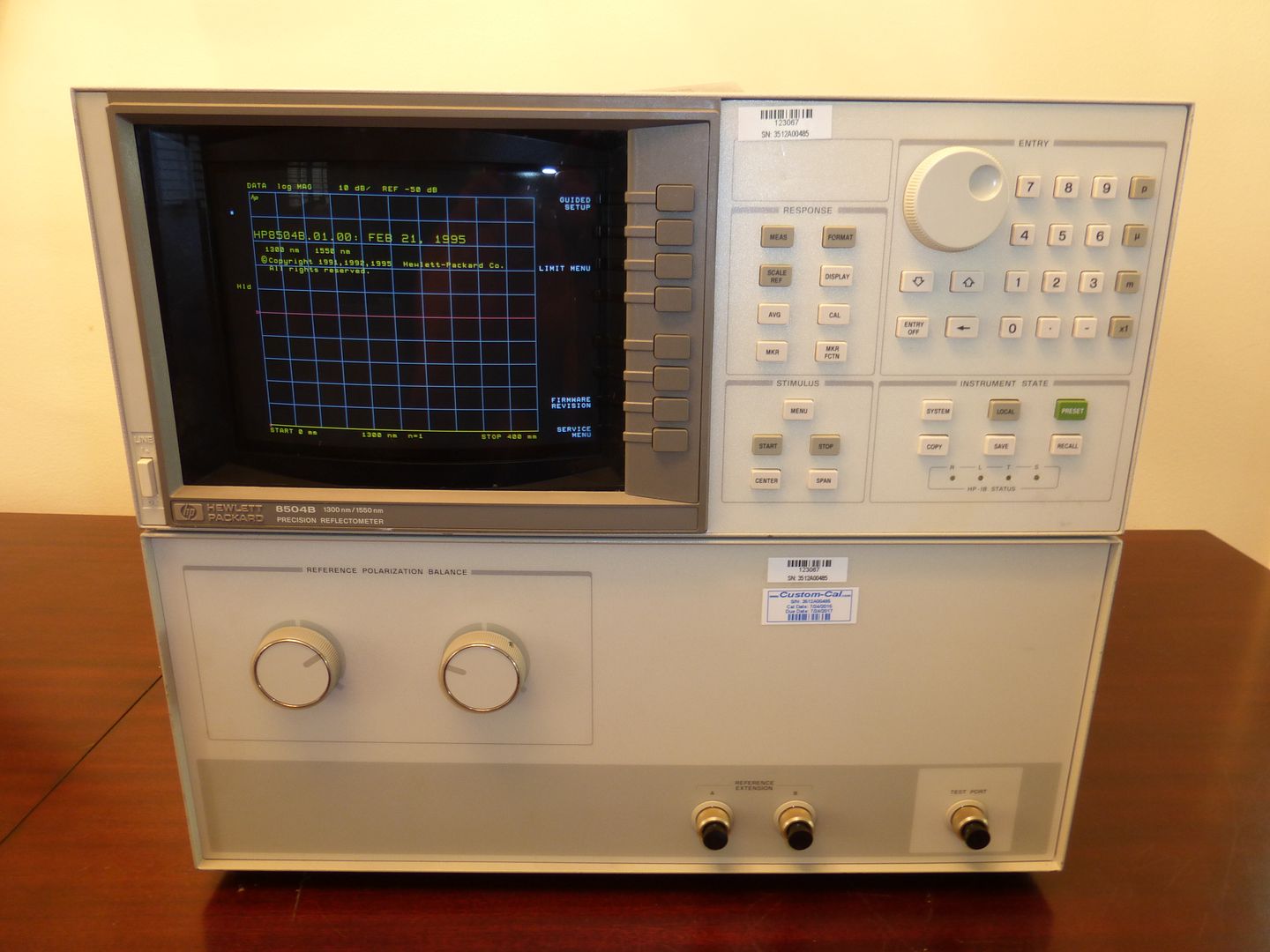

This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes w/ a 5 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.
We will accept payment for this item by company check, cashier’s check and wire transfer only.
If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.
Please note that shipping and insurance costs are non-refundable.
Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.
Make sure that you check out our other auctions for more great deals on test and measurement equipment.
Thank you and good luck bidding.
