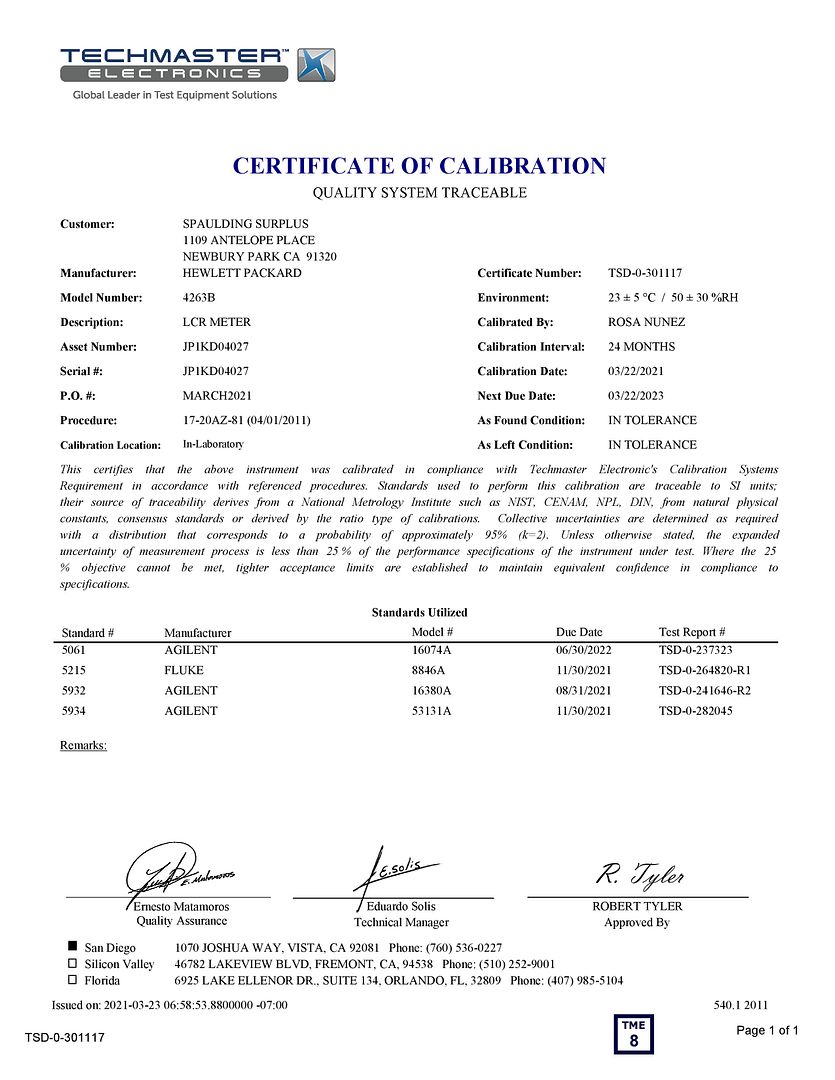

Agilent Keysight 4263B 100Hz - 100kHz LCR Meter w/ Opts 001 & 002 - CALIBRATED!

HP 4263B LCR meter is Hewlett-Packard's most cost-effective low-end LCR meter, designed for both component evaluation on the production line and fundamental impedance testing for bench-top applications.  The 4263B has five test frequencies that allow you to simulate testing under the correct conditions: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz.  An optional 20 kHz test frequency can be added to those five frequencies Option 002).

High-Speed Measurements

The 4263B can boost throughput with a measurement speed of 25 ms at any test frequency.  This ability improves the throughput of electrolytic capacitor and transformer testing.  The 4263B can check the contact condition between the test terminals and the device-under-test (DUT).  This function ensures the reliability of PASS/FAIL testing with automatic handlers in production.  The quick recovery system of the 4263B improves throughput.  Normal operation is resumed the instant a faulty DUT is removed from the handler, so the handler can always be operated at its full speed.

Electrolytic Capacitor Measurements

The 4263B's accuracy and wide measurement range are the right tools to make precise measurements of electrolytic capacitors.  Charged capacitors can discharge through the front end and destroy an instrument.  The 4263B's front end is designed for protection and maintains test integrity.

Transformer Parameter Measurements

With the 4263B's ability to make turns ratio (N), mutual inductance (M), and dc resistance (DCR) measurements, data calculations and changing test setups are no longer time-consuming tasks (Option 001).  The flexible signal level setting and the voltage-and-current monitor function facilitate the use of the H4263B for level dependent DUTs, such as core inductors.

• 0.1% basic accuracy
• 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz test frequencies
• 20 mV to 1 Vrms in 5m Vrms steps
• Test signal level monitor function
• High-speed measurement: 25 ms
• High-speed contact check
• Wide capacitance test range
• Transformer parameter measurements (option 001)
• Select from 11 impedance parameters
• Add three complex transformer parameters with Option 4263B-001
• Set signal level with 5mVrms resolution
• Monitor actual ac voltage and current levels
• Pick from many test fixtures and accessories
• Save and recall up to ten measurement setups

This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.

Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.

We will accept payment for this item by company check, cashier’s check and wire transfer only.

If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.

Please note that shipping and insurance costs are non-refundable.

Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.

Make sure that you check out our other auctions for more great deals on test and measurement equipment.

Thank you and good luck bidding
