Agilent MSO6054A 500 MHz 4 Ch 4 GSa/s MSO Oscilloscope, 18 Opts Installed, CAL'D

$2,950.00
(No reviews yet) Write a Review
SKU:
275333584440
Brand:
Agilent/Keysight
Model:
Agilent MSO6054A
Maximum Real-Time Sampling Rate:
4 GSa/s
Oscilloscope Type:
Digital Oscilloscope
Number of Channels:
4
MPN:
MSO6054A
Maximum Bandwidth:
500 MHz
Agilent MSO6054A 500 MHz 4 Ch 4 GSa/s MSO Oscilloscope, 18 Opts Installed, CAL'D

Product Description

Agilent MSO6054A 500 MHz, 4 Channel, 4 GSa/s Mixed Signal Oscilloscope - CALIBRATED!

mso6054a(1)

Agilent MSO6054A 500 MHz, 4 Channel, 4 GSa/s Mixed Signal Oscilloscope with Probes & Tons of Options - CALIBRATED!

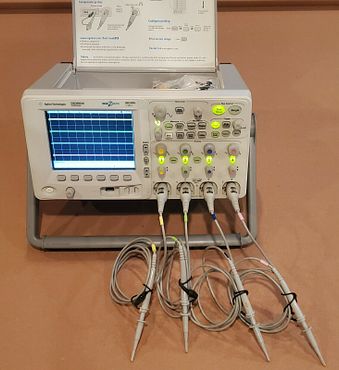

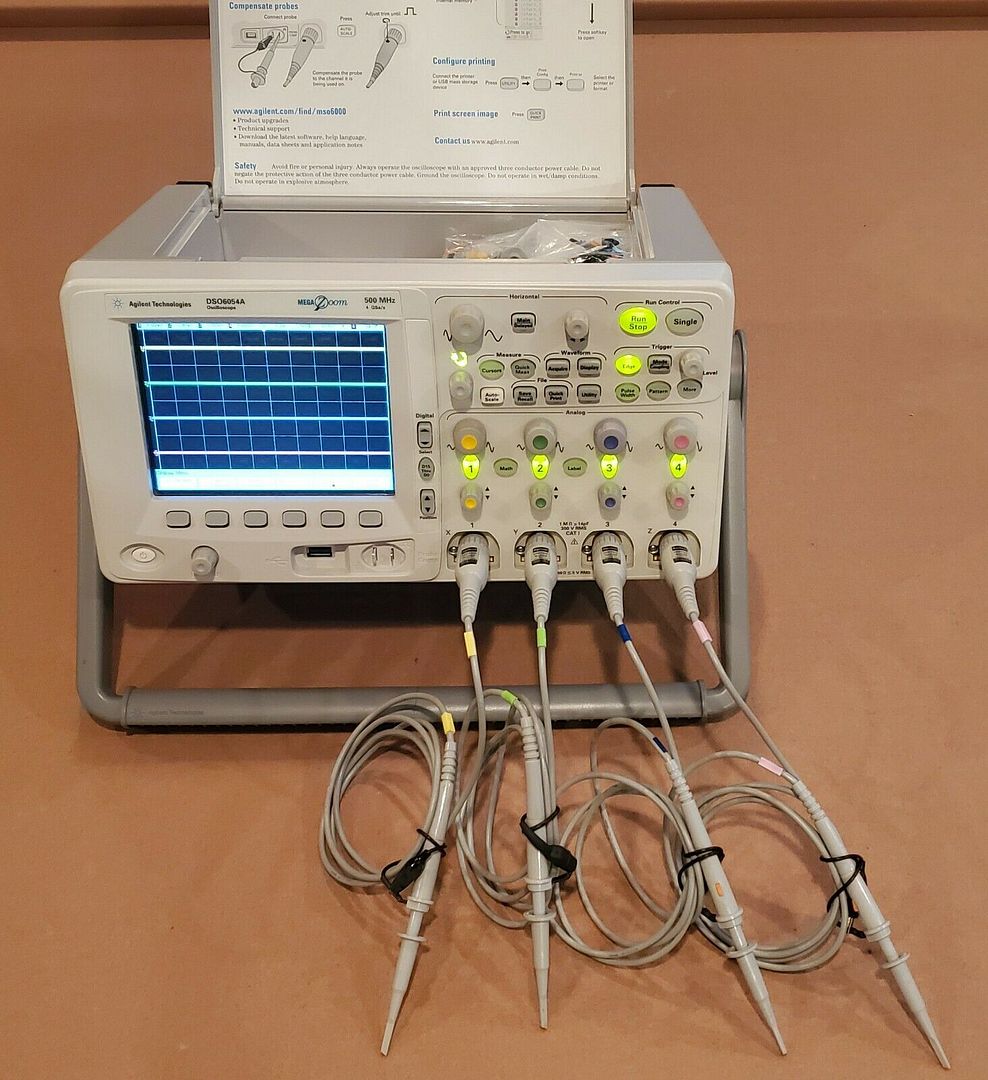

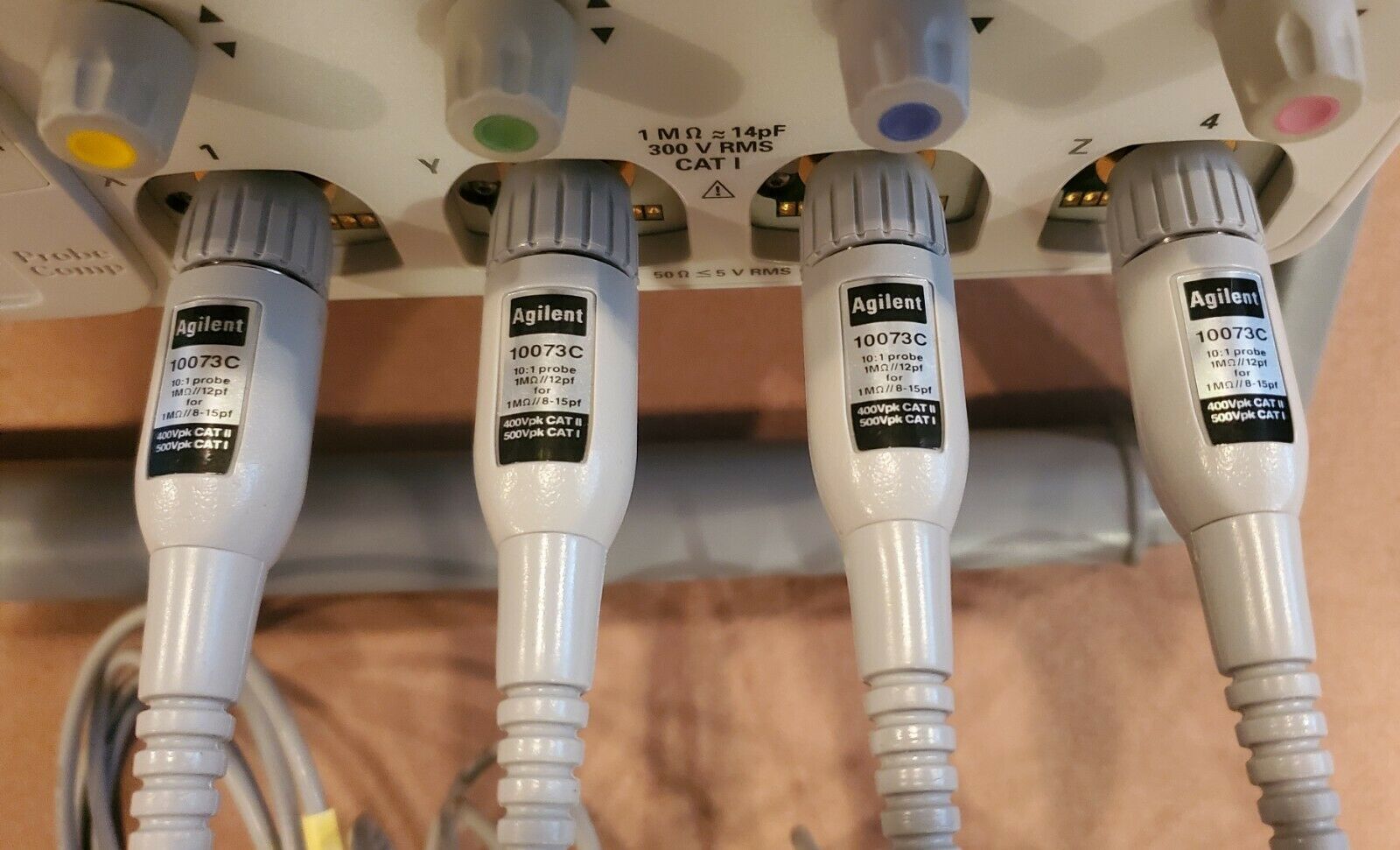

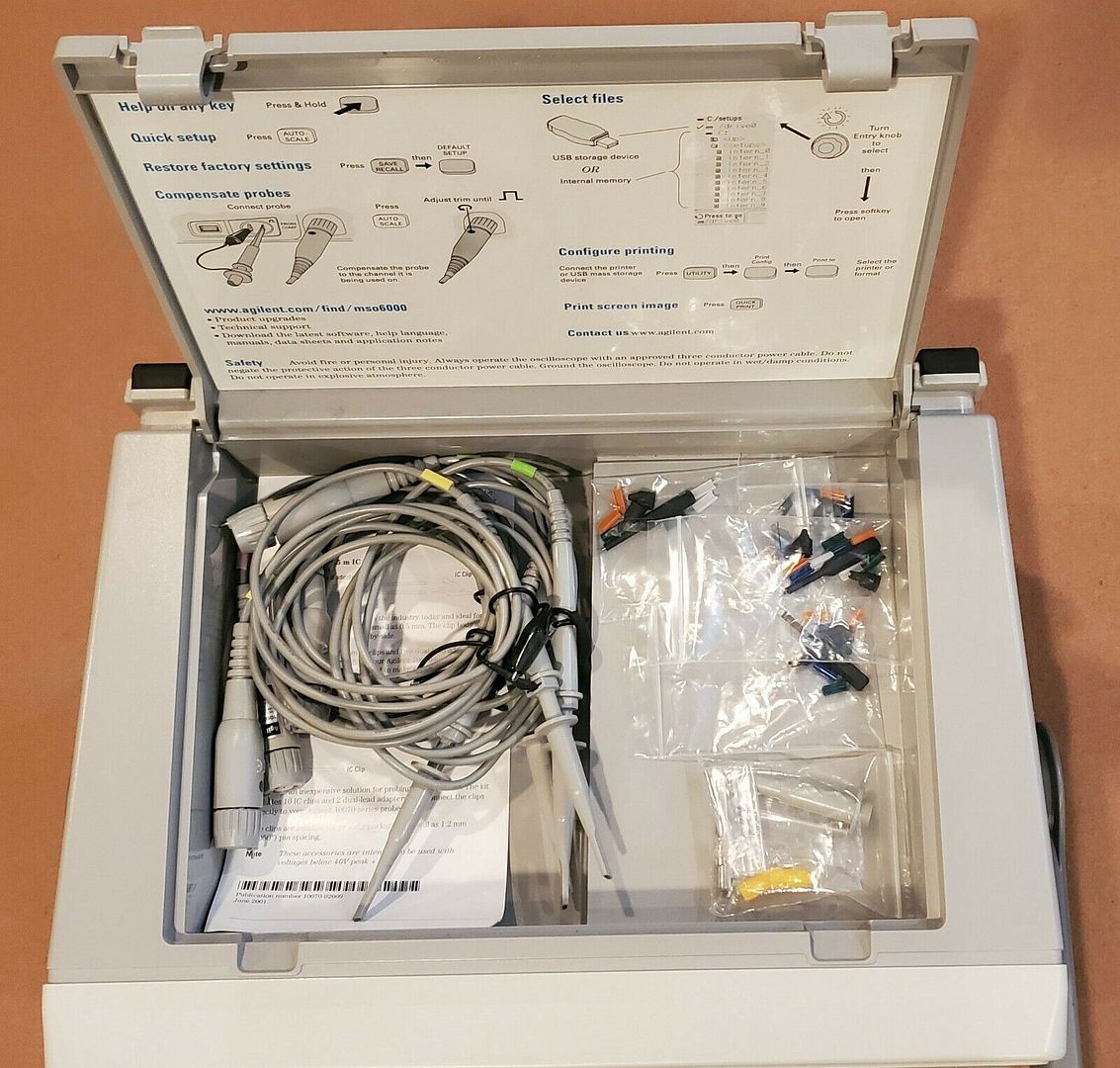

You are bidding on an Agilent DSO6054A 500 MHz, 4 Channel, 4 GSa/s Mixed Signal Oscilloscope that was converted to an MSO6054A.  It is absolutely loaded with Options (see installed option list below).  It also includes qty 4 Agilent 10073C 500 MHz probes.  This unit will arrive with a fresh certificate of calibration from an ISO 17025 accredited lab. The list price for this scope with all 18 of the options installed is over 30K!

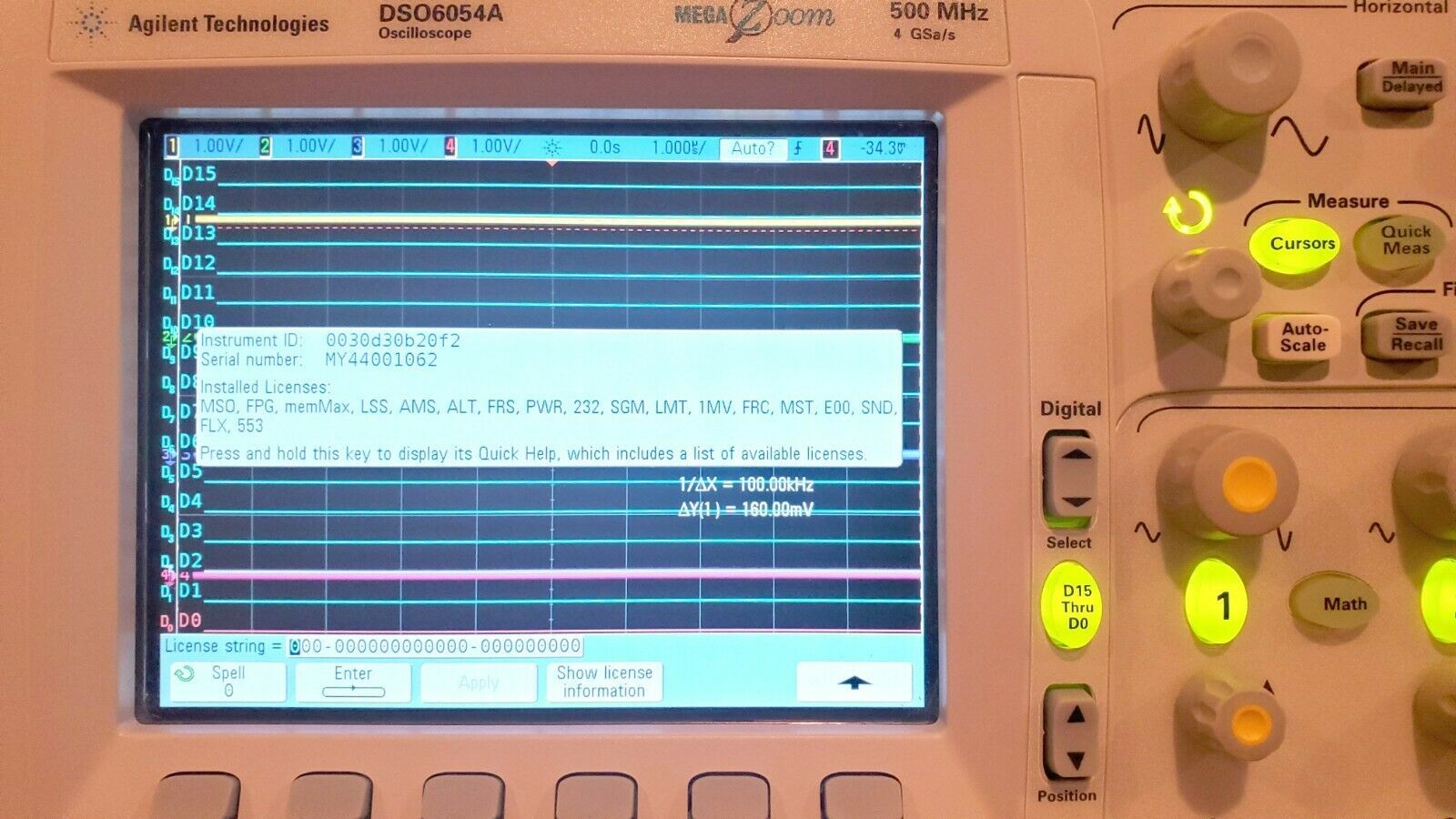

Options installed:
  • 1MV — 1mV Channel Scale Limit
  •
    232 — UART (Universal Asynchronous Receiver/Transmitter) and RS232 (Recommended Standard 232) trigger and decode. This license provides trigger and decode capability for many UART protocols including RS-232.
  • 553 — MIL-STD 1553 trigger and decode. This license provides trigger and serial decode capability for MIL-STD 1553 buses.
  • ALT — Altera FPGA Dynamic Probe. This license provides internal FPGA visibility and quick instrument setup.
  • AMS — Automotive Serial Decode. This license provides serial decode of CAN and LIN buses.
  • E00 — Enhancements, version 5.25. Includes Lister, FlexRay eye diagram/trigger macros (requires option FRS), additional trigger types for 5000 Series models, and the previous Option MST features.
  • FPG — Xilinx FPGA Dynamic Probe. This license provides internal FPGA visibility and quick instrument setup.
  • FRS - FlexRay triggering and decode
  • FLX - FlexRay serial bus triggering, hardware-accelerated protocol decoding and eye-diagram mask-testing so you can more efficiently and effectively debug your automotive FlexRay designs.
  • FRC — FlexRay Physical Layer Conformance Test Application.
  • LMT — Mask Limit Test. This license lets you create a mask and test waveforms to determine whether they comply to the mask.
  • LSS — Low Speed Serial Decode. This license provides serial decode of I2C and SPI buses.
  • memMax — Memory Upgrade. It shows the total memory depth (8 Mpts interleaved).
  • MSO — Mixed Signal Oscilloscope. This license adds 16 digital channels. An Agilent 54620-68701 probe cable is required for digital channels
  • MST — Measurement Statistics & Tracking Cursors
  • PWR— This license lets your oscilloscope communicate with software running on a PC for characterizing power devices.
  • SGM — Segmented memory. This license lets you capture infrequent or burst signals with great resolution by eliminating the capture of your signal’s “dead time.”
  • SND — I2S serial decode option
Upgraded to an MSO

A license has been installed to activate the digital channels of the oscilloscope. The mixed signal oscilloscope has analog channels plus 16 time-correlated digital timing channels. Note that the Agilent 54620-68701 probe cable for digital channels is not included.  Upgraded to 8 Mpts deep memory.


The Agilent MSO6054A 6000 Series oscilloscopes deliver more powerful features and higher performance than any other scopes in their price range.

Agilent focuses on developing products that help you do your job better. Agilent’s 6000 Series scopes are optimized for your measurement needs. Choose the one that’s right for your application and your budget.

Bring your toughest problems into focus with the right combination of features and performance If you work with both analog and digital circuitry, Agilent Technologies 6000 Series oscilloscopes can help you easily see more signal activity in your designs.

The unique 2+16- or 4+16-channel mixed signal oscilloscope (MSO) models and the traditional 2- and 4-channel digital storage oscilloscope (DSO) models are optimized with the capabilities you need for verifying and debugging designs that include embedded 8- or 16-bit microcontrollers, DSPs, FPGAs, ADCs, DACs, and transducers. These scopes give you the tools you need to solve your mixed analog and digital engineering challenges more easily.



  • A variety of models optimized to meet your needs:
  • 300 MHz, 500 MHz and 1 GHz bandwidth
  • Up to 4 GSa/s sample rate
  • Unique 2+16-channel, 4+16-channel mixed signal oscilloscope (MSO) and 2- or 4-channel digital storage oscilloscope (DSO) models
  • Industry-leading performance:
  • Standard 1 Mpts MegaZoom III deep memory; up to 8 Mpts optional
  • High-definition XGA (1024 x 768) color display system with ultra-fast real-time update rate of up to 100,000 waveforms/sec and 256 intensity levels
  • Flexibility to upgrade a DSO to an MSO at any time

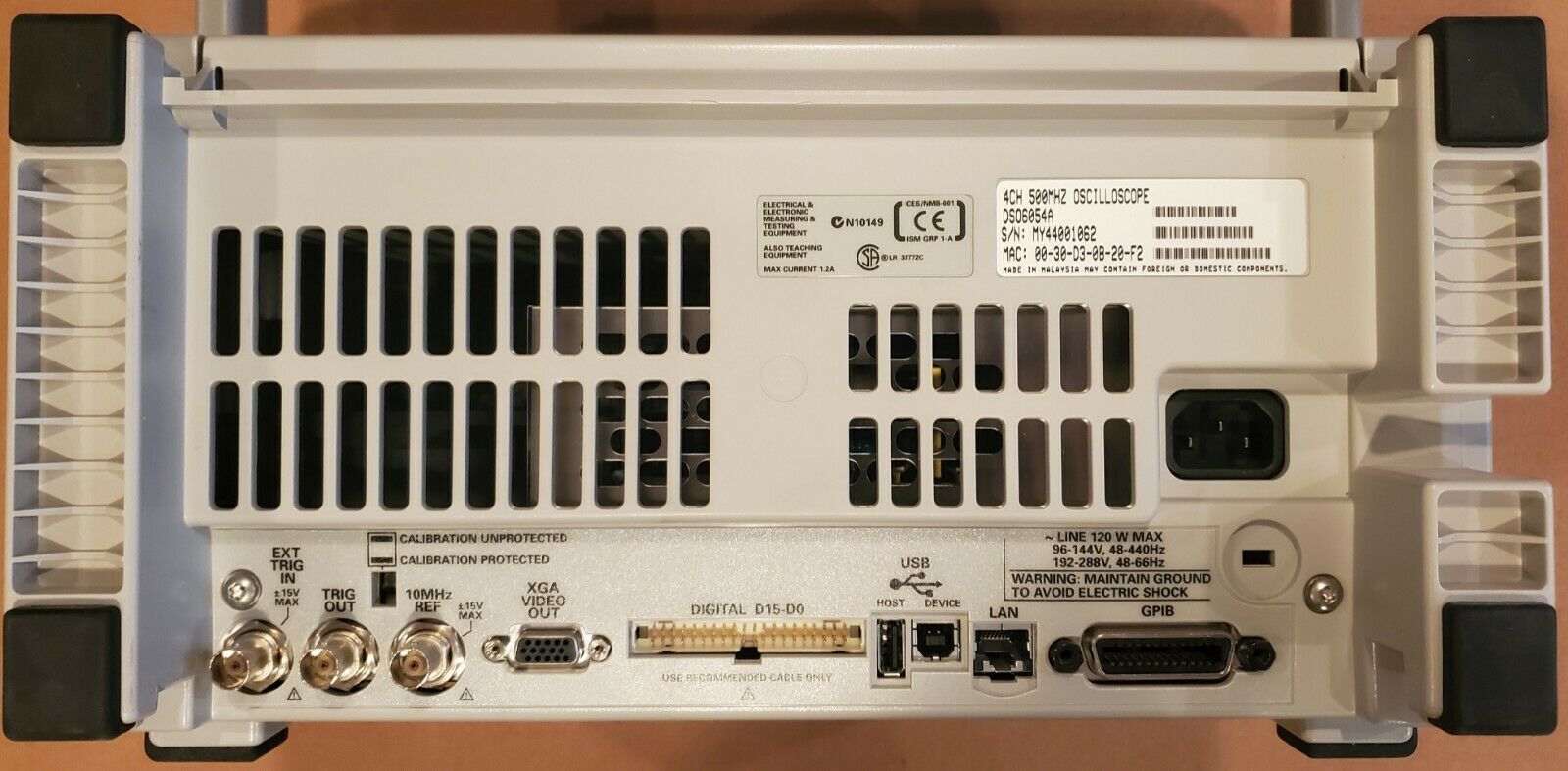

  • Full-scale connectivity – Standard USB, LAN, GPIB and XGA video output
  • Powerful triggering including analog HDTV, CAN, I2C, LIN, SPI, and USB
  • AutoProbe interface
  • Built-in help system



New Agilent 6000 Series = older Agilent 54640 Series PLUS



  • 4/4+16 channel models and 1 GHz models
  • 2x sampling rate (up to 4 GSa/s scope and 2 GSa/s logic)
  • MSO-upgradeable DSOs
  • MegaZoom III deep memory combining fast and deep memory, new ultra-high definition color LCD display with XGA resolution and 256 levels of intensity
  • Faster waveform update rates (100,000 waveforms/sec)
  • Standard analog HDTV/EDTV and either edge triggering
  • Built-in front panel USB port replaces floppy drive
  • Standard USB, LAN and GPIB
  • XGA video output
  • AutoProbe interface
  • 10 MHz reference clock in/out
  • Signal frequency feedthrough
  • 8-digit hardware frequency counter (when using external 10 MHz reference input)
  • Lighter weight



Unique 2+16-channel and 4+16-channel mixed signal oscilloscope (MSO) and 2- or 4-channel DSO models (can be upgraded to MSO capability) What is an MSO?

MegaZoom III technology provides industry-leading performance with the:

High-definition XGA color display system with the fastest waveform update rate of up to 100,000 waveforms/sec and 256 levels of intensity grades.

Powerful triggering including analog HDTV, I2C, SPI, LIN, CAN and USB.

More connectivity choices - LAN, USB, GPIB, and XGA video are all included standard




This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.

Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.



We will accept payment for this item by company check, cashier’s check and wire transfer only.

If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.

Please note that shipping and insurance costs are non-refundable.

Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.

Make sure that you check out our other auctions for more great deals on test and measurement equipment.







Thank you and good luck bidding

mso6054a(1)

mso6054a_1(1)

mso6054a_3(1)



mso6054a_4(1)

mso6054a_5(1)

mso6054a_2(1)

mso6054a_6(1)

dso6054a_cal_cert_2022-page-001

Need your unit calibrated by an ISO 17025 accredited lab prior to shipment? Not a problem. We work with numerous calibration and repair companies that can provide your required service at competitive prices.
