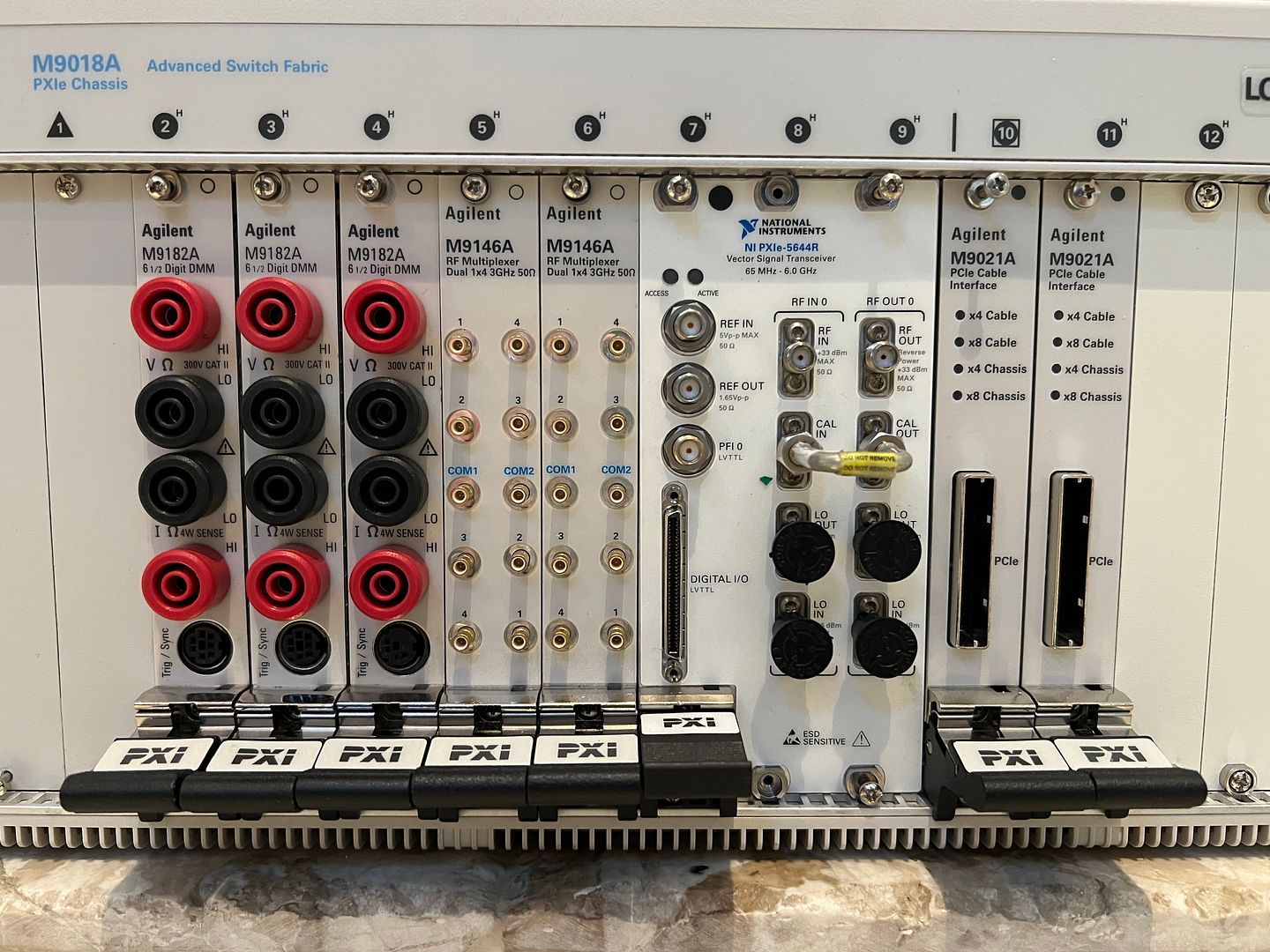

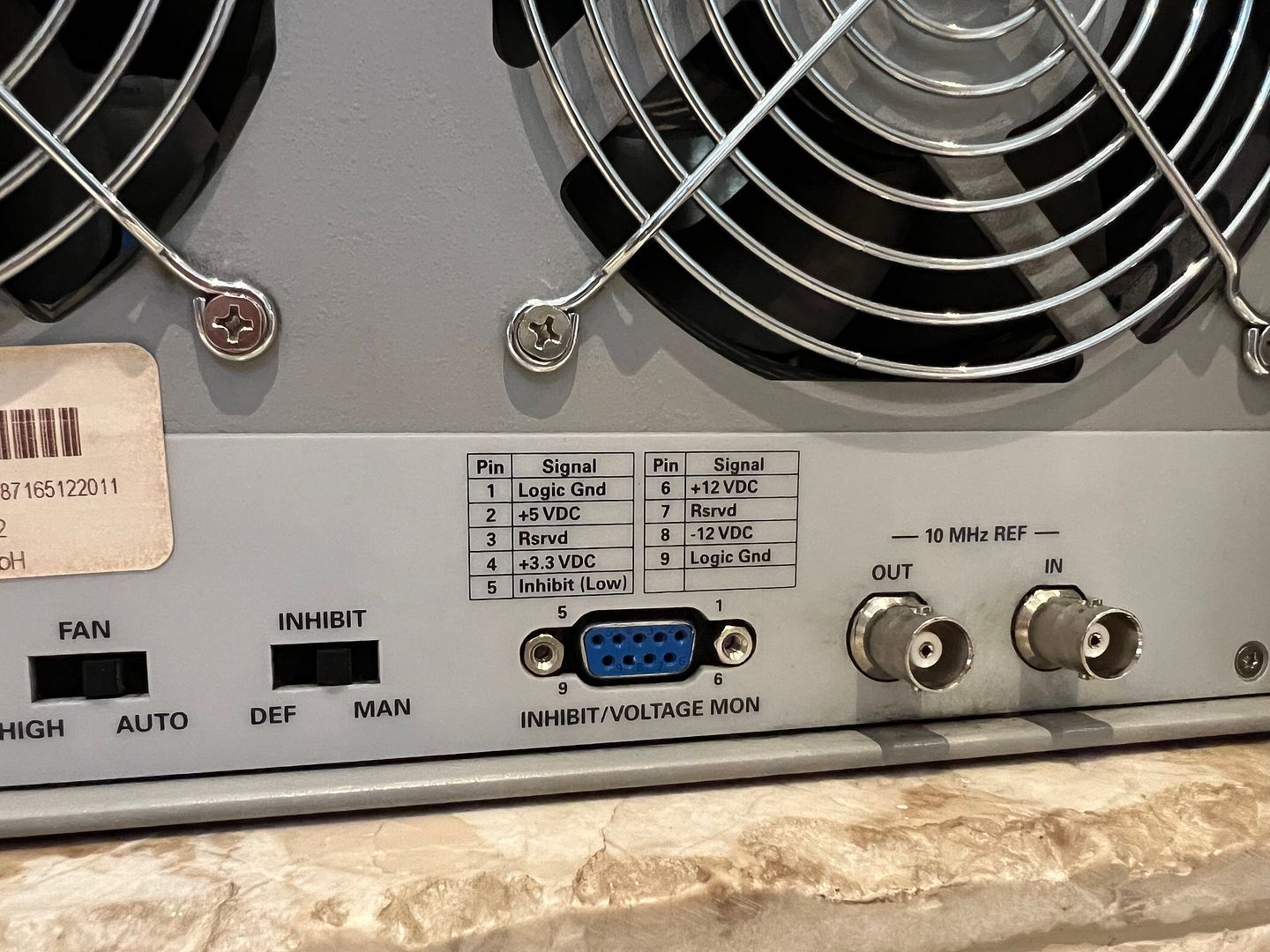

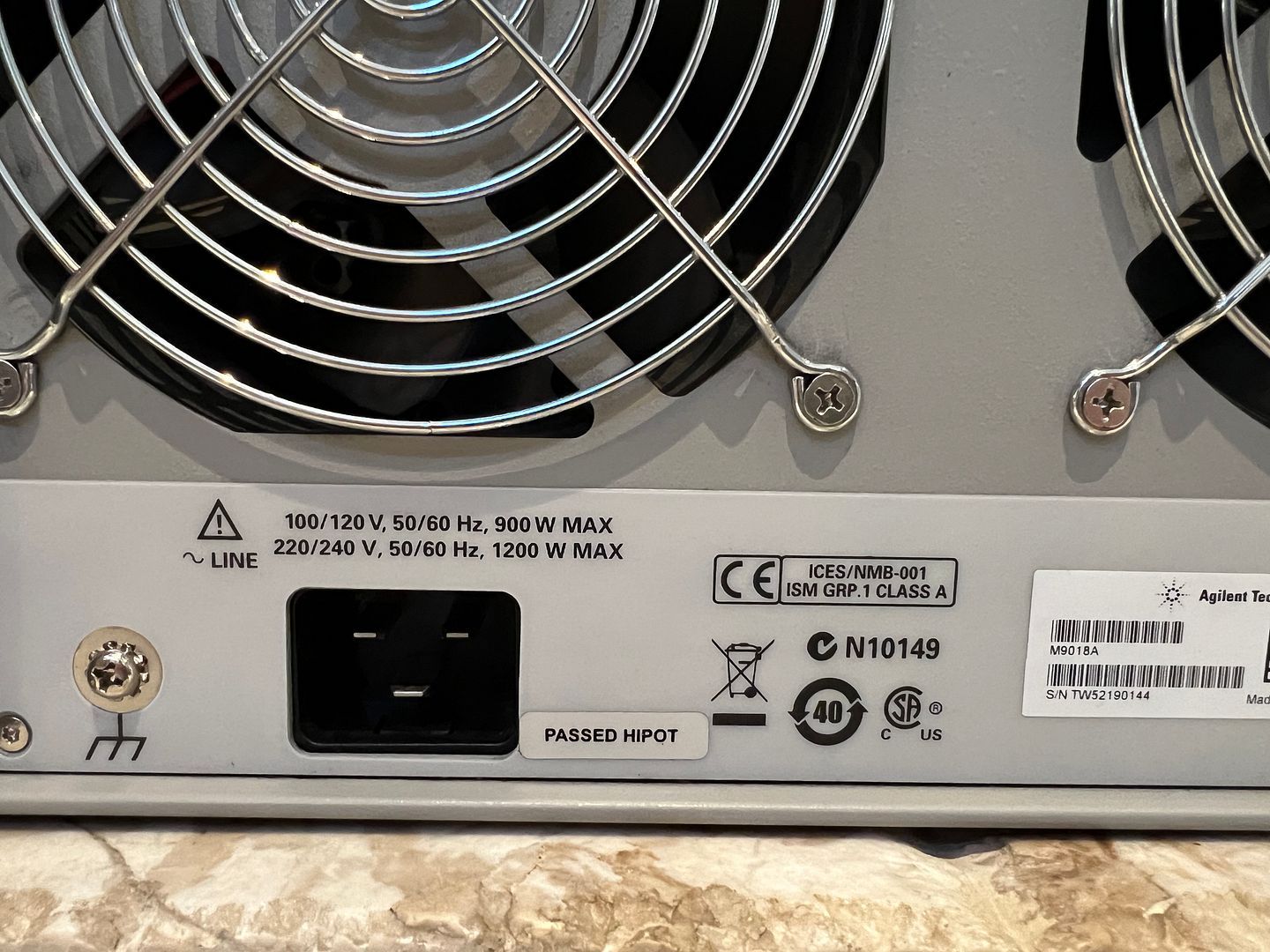

Agilent National PXIe M9018A Chassis 5644R, M9021Ax2, M9146Ax2, M9182Ax3 System

Agilent / National Instruments PXIe M9018A Chassis 5644R, M9021A x2, M9146A x2, M9182A x3 System

The M9018A chassis provides the ultimate in flexibility, compatibility, and performance. With 16 PXIe Hybrid slots, it allows the system designer to mix and match the number and location of PXIe and PXI-1 hybrid compatible modules essentially at will. It contains an advanced PCIe switch fabric that operates up to Gen 2 speeds and can be configured for optimal performance with most PXIe controller. The switch fabric is also configurable for peer-to-peer communications and any peripheral slot can communicate with any other peripheral slot without utilizing the system slot PCIe links. Combine the M9018A with the M9021A PCIe Cable Interface and M9048A PCIe Desktop Adaptor to achieve the highest system bandwidth.

The M9018A has an innovative cooling design which allows the chassis to fit into 4U of rack space in most cases. When combined with the latest 1U rack-mounted computer, a powerful system can be built in only 5U of rack space. Additionally, optional “air-inlet” modules can be used to supply more cool air from the front of the chassis.

Functionality

• 18 total slots including PXIe controller and timing module slots
• 16 PXIe Hybrid Slots
• 867.5 W total DC power (220-240V input) and 42 W/slot cooling

Performance characteristics

• Advanced PCIe switch fabric that operates up to Gen 2 speeds and provides twelve x4 and four x8 links to module slots
• Backplane speeds of up to a 4 GB/s data rate from external controller to PXIe module slots
• Innovative cooling design that allows chassis to fit into 4U of rack space in most cases

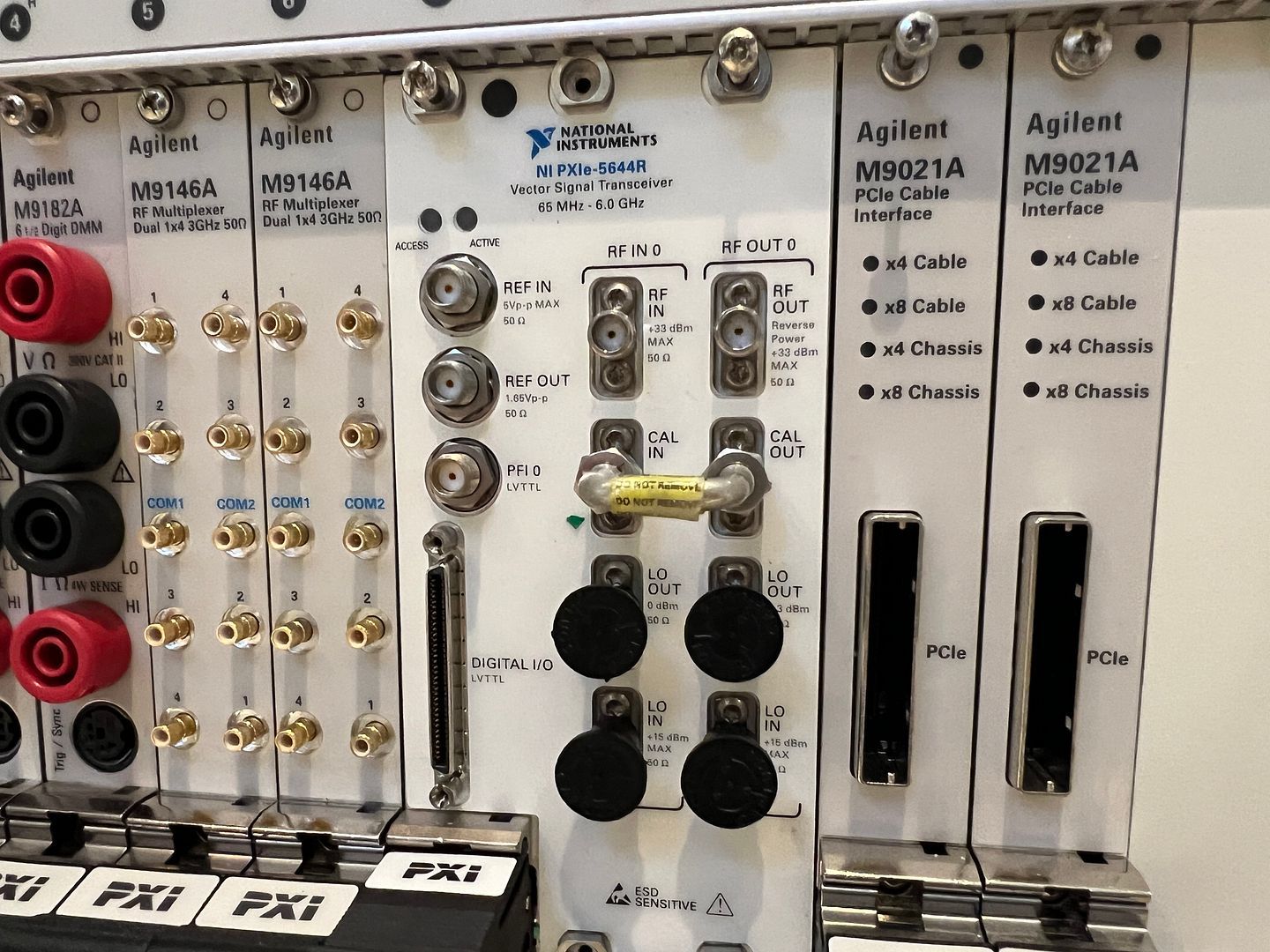

PXIe-5644 PXI Vector Signal Transceiver

6 GHz, 80 MHz Bandwidth, RF PXI Vector Signal Transceiver—The PXIe‑5644 combines a vector signal generator and vector signal analyzer with FPGA-based real-time signal processing and control into a single device, also known as a VST. Because of this software-designed approach, the PXIe‑5644 features the flexibility of a software defined radio architecture with RF instrument class performance.

M9021A Cable Interface Module

The M9021A is designed for the M9018A chassis and utilizes unique features built into the M9018A. Once installed in the M9018A chassis and connected to an external host computer via a standard PCIe cable, it provides a very high bandwidth serial link between the two. To ensure the best performance, the M9021A should be paired with a Gen 2 x8 Host PC card such as the Keysight M9048A. A x8 PCIe cable tested to operate at Gen 2 speeds such as the Keysight Y1202A should also be used. Applications Applications that utilize an external computer to control the M9018A PXIe Chassis Functionality 1 slot 3U module for use in the M9018A PXIe Chassis Single x8 link to PXIe backplane Standard x8 cabled PCIe connector for use with standard PCIe cables and external computers Performance characteristics Gen 2 PCIe x8 link provides up to a 4 GB/s data rate from external controller to M9018A Fully transparent to test system software applications

M9146A RF Multiplexer

The M9146A contains two 1x4 RF switch multiplexers in a single PXI module. It offers 50 Ω inputs with bi-directional switching up to 3 GHz. This module features excellent insertion loss and VSWR for better RF signal integrity as well as outstanding dynamic range for routing RF signals into your measurement equipment. Each path is designed to ensure repeatable RF performance. Connections are made through easy, snap-on SMB connectors.

Software drivers support most common programming environments such as Visual Studio, C, C++, C#, Visual Basic, MATLAB, and LabVIEW. In addition, this module delivers high-performance RF switching with fast, easy installation and configuration via the Keysight Connection Expert and soft front panels.

Application

• RF switching to 3 GHz for routing signals to your measurement equipment

Functionality

• dual 1x4 50 Ω RF switch multiplexer to 3 GHz
• off-channel termination
• 30 V, 1 A, 1 W switching
• 60 dB isolation at 1 GHz

Performance characteristics

• high-quality SMB connectors
• low insertion loss and voltage standing wave ratio (VSWR) for better signal integrity

This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.

Need your unit calibrated by an ISO 17025 accredited lab prior to shipment? Not a problem. We work with numerous calibration and repair companies that can provide your required service at competitive prices.
