The Anritsu MS2724B Spectrum Master hand-held Spectrum Analyzer is designed to conduct highly accurate analysis on the new wave of wireless LAN and cellular signals, including 802.11a, 3G, ultra-wideband, and wireless medical patient monitoring systems. The next generation of Anritsu's best selling Spectrum Master, the MS2724B is a small and easy to use portable spectrum analyzer with unprecedented measurement capability for applications up to 20 GHz. Weighing in at less than 8 pounds, it is equally at home on the engineering bench and in the field. It is ideally suited for measuring up to the fifth harmonic of 3G cellular phone base stations.
An option adds spectrogram, signal strength and RSSI. There is an option to add a user definable channel scanner option that is excellent for interference mitigation work in complicated RF environments. Options are available to add W-CDMA/HSDPA, CDMA, EVDO, GSM/GPRS/EDGE, TD-SCDMA, Fixed WiMAX and Mobile WiMAX measurements. Quasi-peak detection is included along with CISPR resolution bandwidths.
Several smart measurements are built into the MS2724B, including channel power, adjacent channel power ratio, Carrier to Interference ratio (C/I), and field strength. In addition, an AM/FM/SSB demodulator is included. Demodulated signals can be monitored using the internal speaker or by using a universal 2.5 mm 3-wire headset, such as used with many cellular phones.
The Anritsu MS2724B spectrum analyzer has low phase noise of -104 dBc/Hz typical at 1 GHz @ 10 kHz offset, best in its class typical DANL of -159 dBm at 1 GHz in a 1 Hz RBW, resolution bandwidth (RBW) range of 1 Hz to 3 MHz and video bandwidth (VBW) range of 1 Hz to 3 MHz. It also has the fastest sweep speeds of any spectrum analyzer in its class
The use of Compact Flash memory modules or USB Flash Drives allow an unlimited number of traces and setups to be stored. Measurements may be stored directly to the compact flash module. A 512 MB module will hold over 20,000 Spectrum Analyzer measurements. Remote programming using the Ethernet 10/100 Base-T connection is provided using SCPI programming. The Ethernet connection gives the user flexibility in remotely operating the instrument using Anritsu's remote access software, shipped with the product. Measurements and setups may be uploaded and downloaded using either the Ethernet or the USB connection.
Quasi-peak detection is included along with CISPR resolution bandwidth.
Features of the MS2724B Spectrum Master (for reference & option dependent):

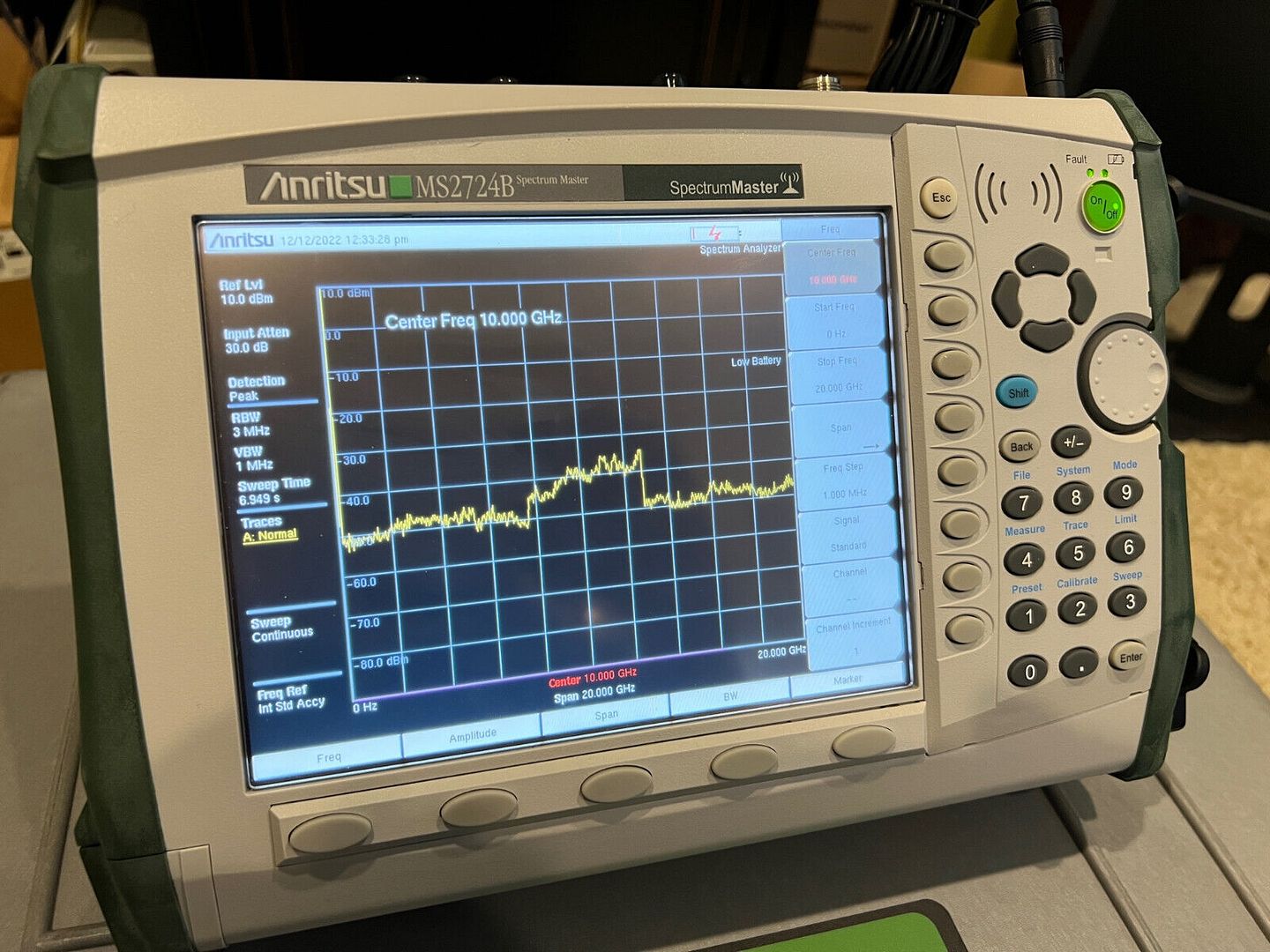

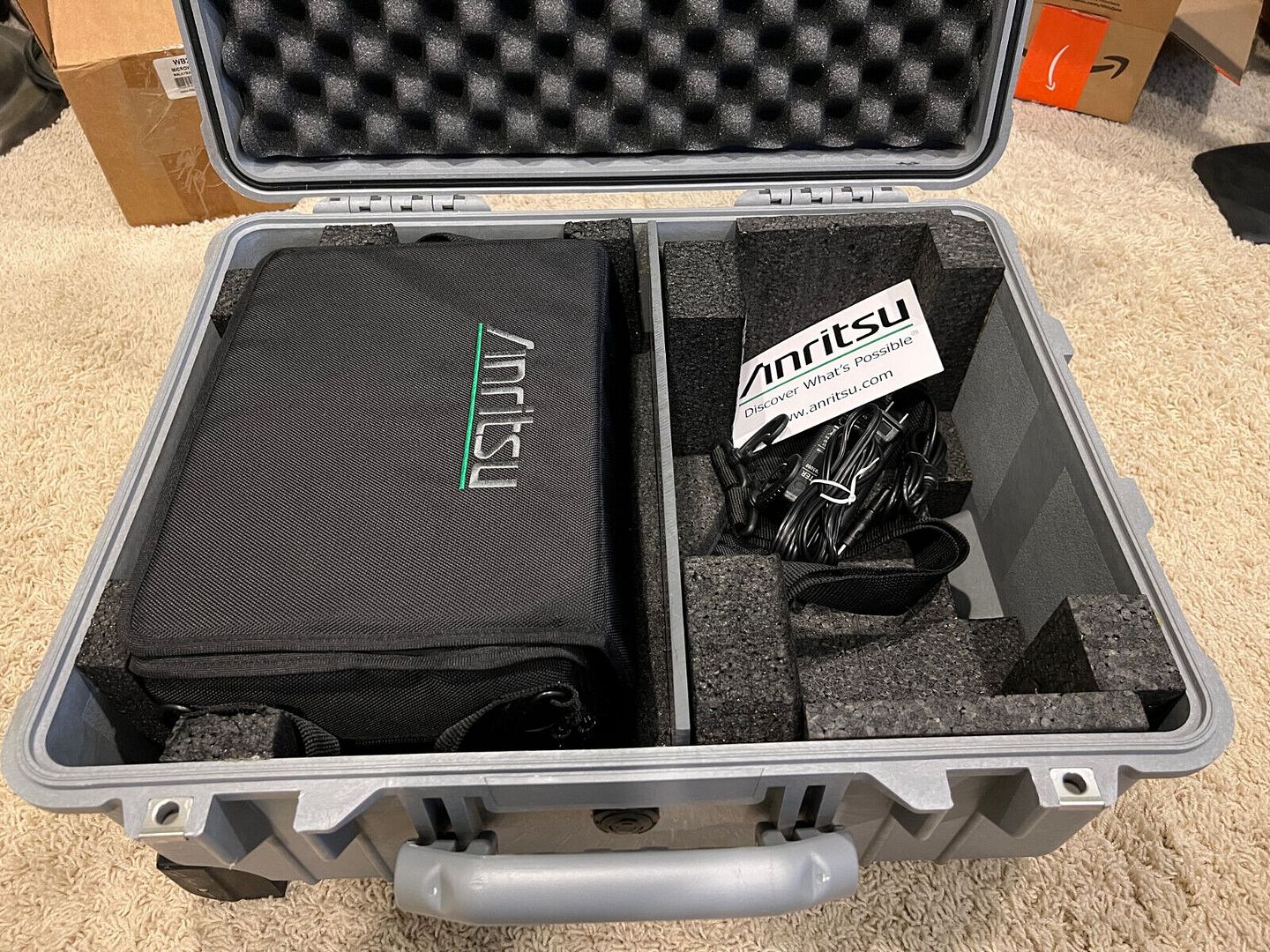

This unit is in excellent physical condition and functions as intended. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.
We will accept payment for this item by company check, cashier’s check and wire transfer only.
If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.
Please note that shipping and insurance costs are non-refundable.
Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.
Make sure that you check out our other auctions for more great deals on test and measurement equipment.
Thank you and good luck bidding.
Need your unit calibrated by an ISO 17025 accredited lab prior to shipment? Not a problem. We work with numerous calibration and repair companies that can provide your required service at competitive prices.
