BRAND NEW HP / Agilent 8563A 9 KHz to 22 GHz Spectrum Analyzer - Calibrated!

$7,990.00

(No reviews yet) Write a Review

SKU:: 253848434503
Condition:: New
Brand:: Agilent/HP
Model:: 8563A
MPN:: 8563A
Unit Type:: Complete Systems & Mainframes
Manufacturer:: HP / Agilent
Analyzer Type:: Spectrum Analyzers
Country of Manufacture:: United States

Current Stock:

Quantity:

Product Description

New other (see details)

Shop Categories

All Categories

We buy, sell and rent general purpose, optical and RF test and measurement equipment. We pay top dollar for your unwanted, surplus or defective gear. Let us make you an offer on your new or used Agilent, Tektronix, Anritsu, Fluke, Rohde & Schwarz and IFR instruments.

BRAND NEW HP / Agilent 8563A 9 KHz to 22 GHz Spectrum Analyzer - Calibrated!

Item Description

BRAND NEW HP 8563A 9 KHz to 22 GHz Spectrum Analyzer with Option H01 - Calibrated! - CALIBRATED!

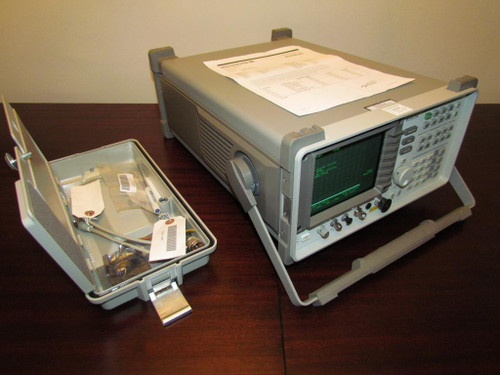

You are bidding on an BRAND NEW HP 8563A 9 KHz to 22 GHz Spectrum Analyzer with Option H01 (Special Option for USAF 11970A, 11970K, 11970Q), a fresh calibration performed at an ISO17025 accredited lab and the accessories, manuals and software shown in the pictures below. THIS UNIT HAS NEVER BEEN USED AND HAS ZERO HOURS LOGGED OTHER THAN THE TIME TO CALIBRATE! The Agilent 8563A Spectrum Analyzer is a high-performance, synthesized technology, lightweight & rugged unit. It is an ideal choice for stimulus response measurements, and provides up to 128 dB dynamic range and offset tracking capability when synthesized sources are used for stepped distortion and stepped conversion-loss measurements. The Agilent 8563A meets MIL-T-28800C requirements for temperature, pulse shock, and transit drop, will withstand 30g's so you don't have to worry about knocking this unit around.

The Agilent 8563A spectrum analyzer is the 5th generation of HP Spectrum Analyzers, easier than ever to use. Dedicated keys with large, easy-to-read lettering provide basic tune, zoom, and measure steps. They allow fast access to frequently used functions such as markers, save/recall, and direct printer/plotter output.

Performance Characteristics:

Form Factor Mainframe

Minimum Frequency 9 kHz

Maximum Frequency 22 GHz

Frequency Accuracy 0.00000000013 %

Zero Span Yes

Minimum Span 100 Hz

Maximum Span 19.25 GHz

Minimum Sweep Time 50 ms

Maximum Sweep Time 100 s

Minimum Resolution Bandwidth 10 Hz

Maximum Resolution Bandwidth 19.25 MHz

Resolution Bandwidth Steps 1/3/10

Minimum Video Bandwidth 1 Hz

Maximum Video Bandwidth 3 MHz

Video Bandwidth Steps 1/3/10

Maximum Safe AC Input 1 dBm

Maximum DC Input 0 V

Maximum Displayed Average Noise -131 dBm

Maximum Dynamic Range -103 dB

Demodulation AM,FM

Connector type (main signal) Type-N(f)

2nd IF Input Connector Type SMA(f)

1st Local Oscillator (LO) Output Connector BNC(f)

Cal Output Connector Type BNC(f)

External Frequency Reference 10 MHz

You can view the specs for this unit here: Product Specs

This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes w/ a 14 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.

Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.

We will accept payment for this item by company check, cashier’s check and wire transfer only.

Feel free to send any questions regarding this item to:
brannonsb@aol.com
(in fact I encourage you to do so)

If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.

Please note that shipping and insurance costs are non-refundable.

Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.

Make sure that you check out my other auctions for great deals on other test and measurement equipment.

Thank you and good luck bidding.

Need your unit calibrated by an ISO 17025 accredited lab prior to shipment? Not a problem. We work with numerous calibration and repair companies that can provide your required service at competitive prices.
