Fluke 830 Laser Shaft Alignment Tool w/ All Standard Accessories - Pristine!

Product Description

Fluke 830 Laser Shaft Alignment Tool with All Standard Accessories - Pristine!

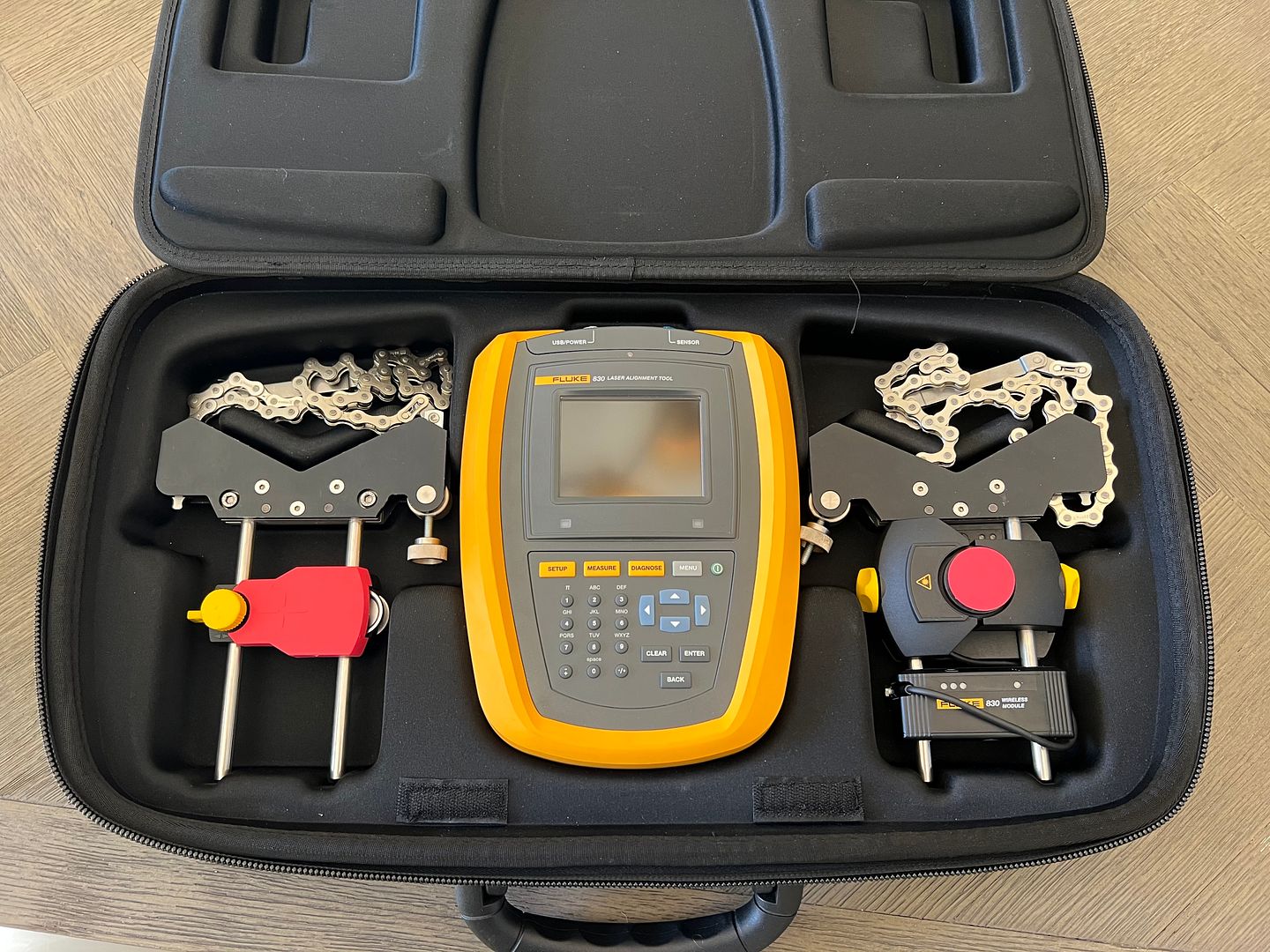

Fluke 830 Laser Shaft Alignment Tool with All Standard Accessories

You are bidding on a Fluke 830 Laser Shaft Alignment Tool.  It was purchased for a project and was rarely used.  It is in great condition and comes complete with all standard mfg accessories.

Product Features:

• Single-laser measurement technology means reduced errors from backlash, resulting in better data accuracy

• Intuitive guided user interface quickly and easily completes machine alignments

• Compass measurement mode enables flexible, reliable, and repeatable measurements using activated electronic inclinometer

• Dynamic machine tolerance check provides continuous evaluation of alignment adjustments, so users know when their machine is in acceptable range

• Unique extend mode handles gross misalignment by virtually increasing laser detector size

• Data protection ensures data is there when users need it, with auto save and resume capability

• Clock mode for vertical flanged machines

• Machine flip turns over image of machine on screen for alignment jobs with obstructions

• Resume mode to save work and return work and return same step (anytime it's needed)

Computer specifications

• CPU processor: Intel XScale PXA270 running at 312 MHz

• CPU memory: 64 MB RAM, 64 MB flash

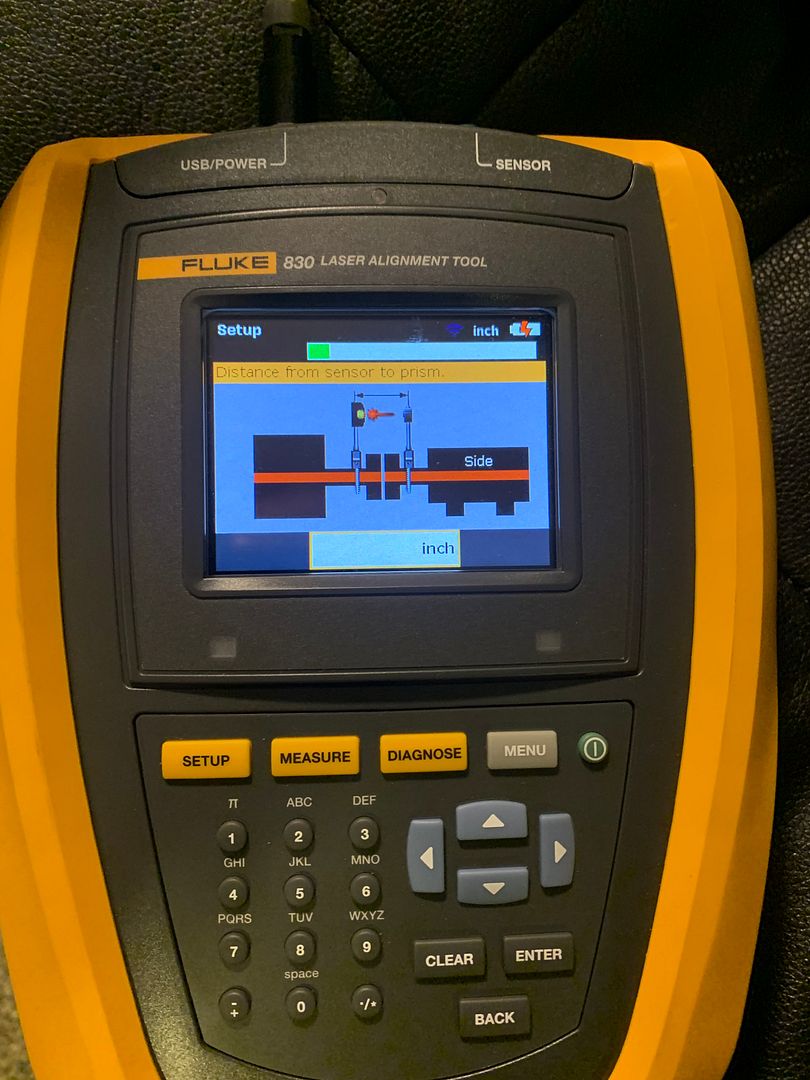

• Display type: TFT, transmissive (sunlight-readable), 65,535 colors, backlit LED Integrated light sensor for automated adjustment of the brightness to the display according to the lighting conditions - extends battery life

• Display resolution: 320 x 240 pixel; Dimensions: 89 mm (3.5 in) diagonal

• Display keyboard elements: Setup, measure, diagnose, menu, clear, enter, back keys, navigation cursor cross, alphanumeric keyboard and on/off button

• LED indicators: Multicolor LED for laser status and alignment condition; Multicolor LED for battery status

• External interface: USB host and USB device (slave); Integrated wireless communication, Class 1, transmitting power 100 mW; AC adapter/charger socket

• Environmental protection: IP 65 (dustproof and water spray resistant), shockproof; Relative humidity 10 % to 90 %

• Temperature range operation: -10 °C to 50 °C (14 °F to 122 °F)

• Temperature range storage: -20 °C to 60 °C (-4 °F to 140 °F)

• Battery type: Li-Ion polymer rechargeable battery 7.4 V / 2.6 Ah (optimal)

• Operating time: Up to 17 hours (33% measurement, 33% computation, 33% sleep mode)

Reflector (Prism) Specifications

• Type: 90° roof prism; Accuracy (avg): > 99%

• Environmental protection: IP 67 (submersible, dustproof)

• Temperature range operation: -20°C to 60°C (-4°F to 140°F); Storage: -20°C to 80°C (-4°F to 176°F)

sensALIGN 3 Sensor Specifications

• Measurement principle: Coaxial, reflected laser beam

• LED indicators: 1 LED for laser beam status and battery status; 1 LED for Wireless communication

• Battery type: Lithium-Ion rechargeable battery 3.7 V / 5 Wh

• Operating time: 10 hours (continuous use)

• Charging time: Using charger - 2.5 h for up to 90%; 3.5 h for up to 100%;Using USB port - 3 h for up to 90%; 4 h for up to 100%

• Environmental protection: IP 65 (dustproof and water spray resistant), shockproof; Relative humidity: 10% to 90% (non-condensing)

• Ambient light protection: Yes

• Temperature range Operation: -10 °C to 50 °C (14 °F to 122 °F); Charging: 0°C to 40°C (32°F to 104°F); Storage: -20 °C to 60 °C (-4 °F to 140 °F)

• Detector measurement range: Unlimited, dynamically extendible

• Detector resolution: 1 μm (0.04 mil) and angular 10 μRad

• Accuracy (avg): > 98%

• Inclinometer measurement range: 0° to 360°

• Inclinometer resolution: 0.1°

• Inclinometer error (Ta = 22°C): +0.3 % read out

• Laser type: Semiconductor laser diode

• Laser wavelength: 630 - 680 nm (red, visible)

• Laser safety class: Class 2 according to IEC 60825-1:2014; Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

• Laser beam power: < 1 mW; Beam divergence: 0.3 mRad

• External interface: Wireless communication

• Transmission distance: Up to 30 m (98 ft) direct line of sight

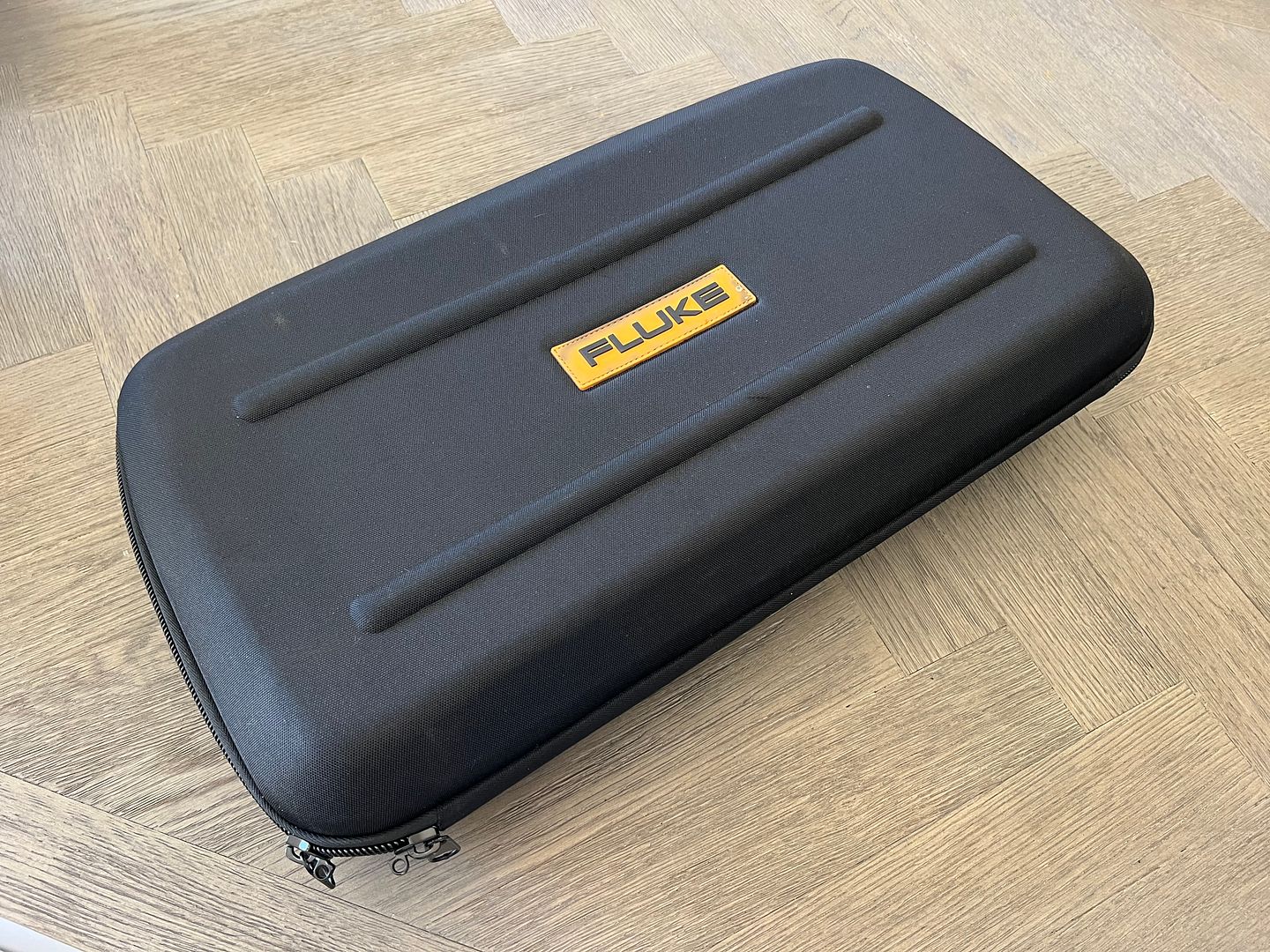

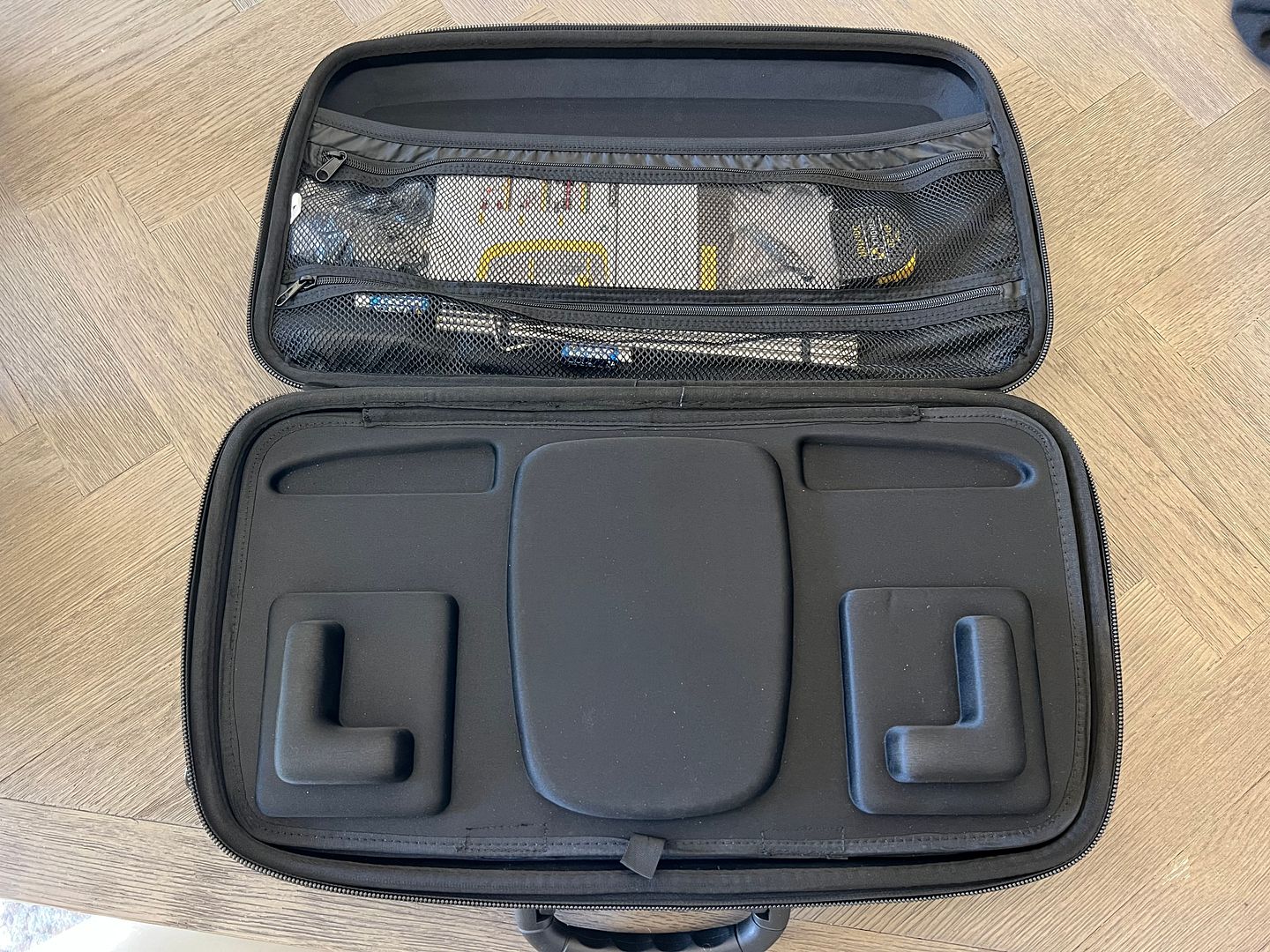

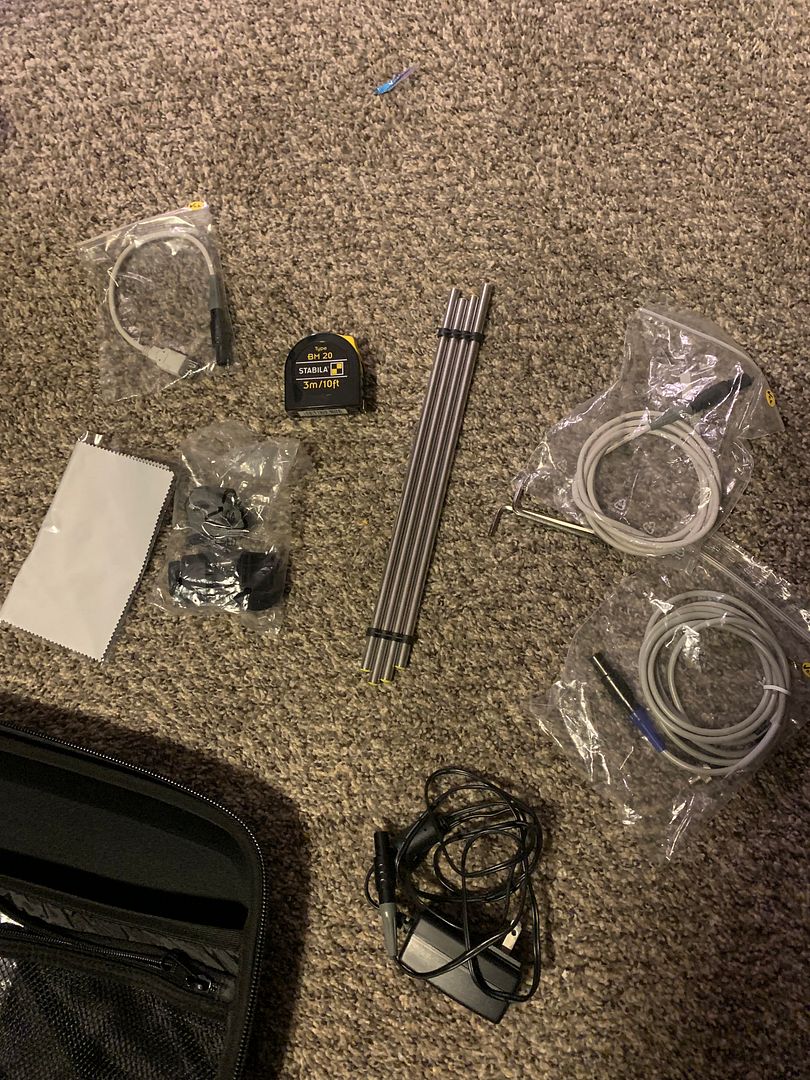

This unit is in perfect condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.

Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.

We will accept payment for this item by company check, cashier's check and wire transfer only.

If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.

Please note that shipping and insurance costs are non-refundable.

Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.


Make sure that you check out our other auctions for more great deals on test and measurement equipment.

                                            Thank you and good luck bidding
