Fluke Optiview OPVXG-10G Network Analyzer - Loaded w/ Software, Options & Accy's

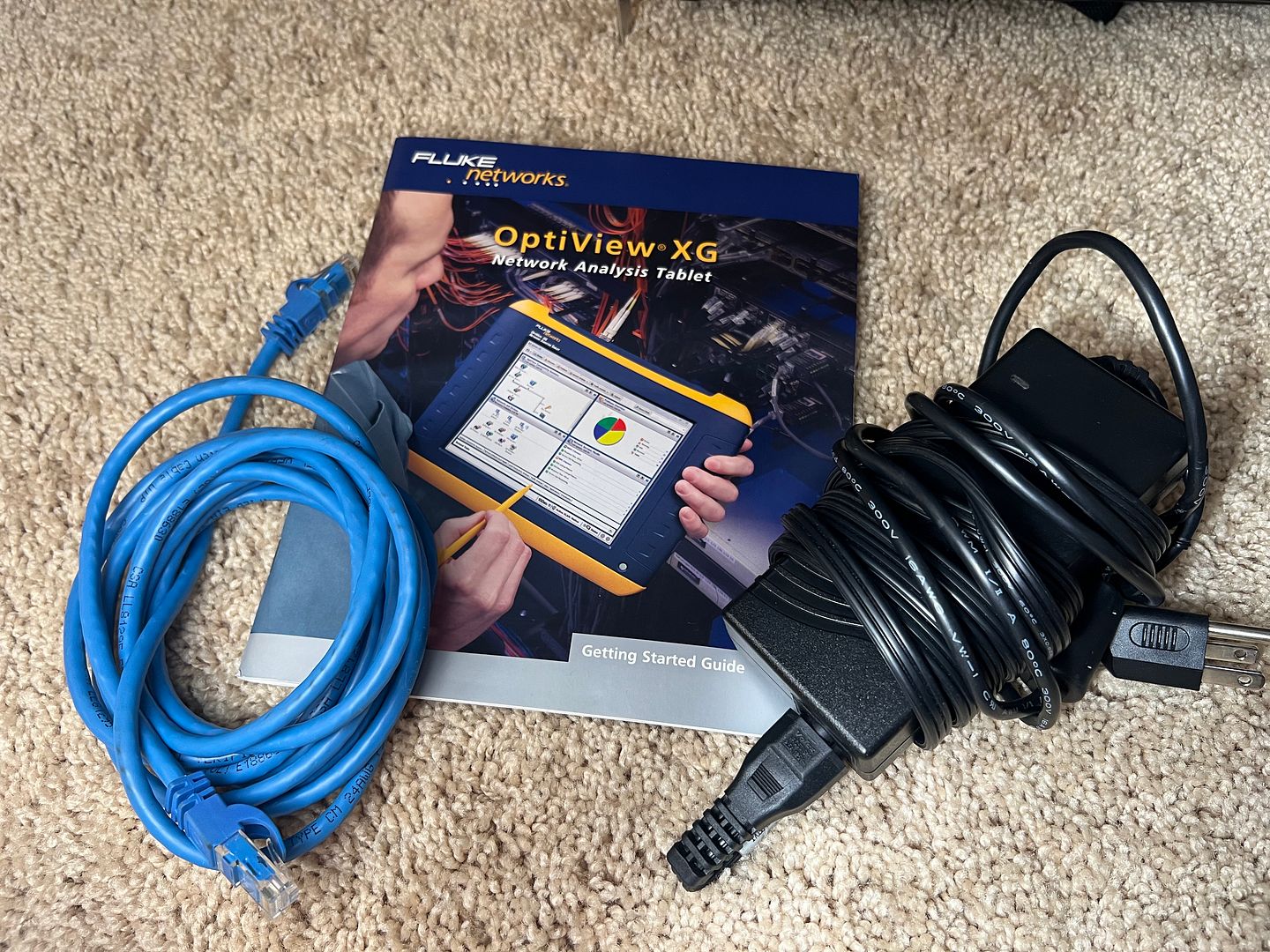

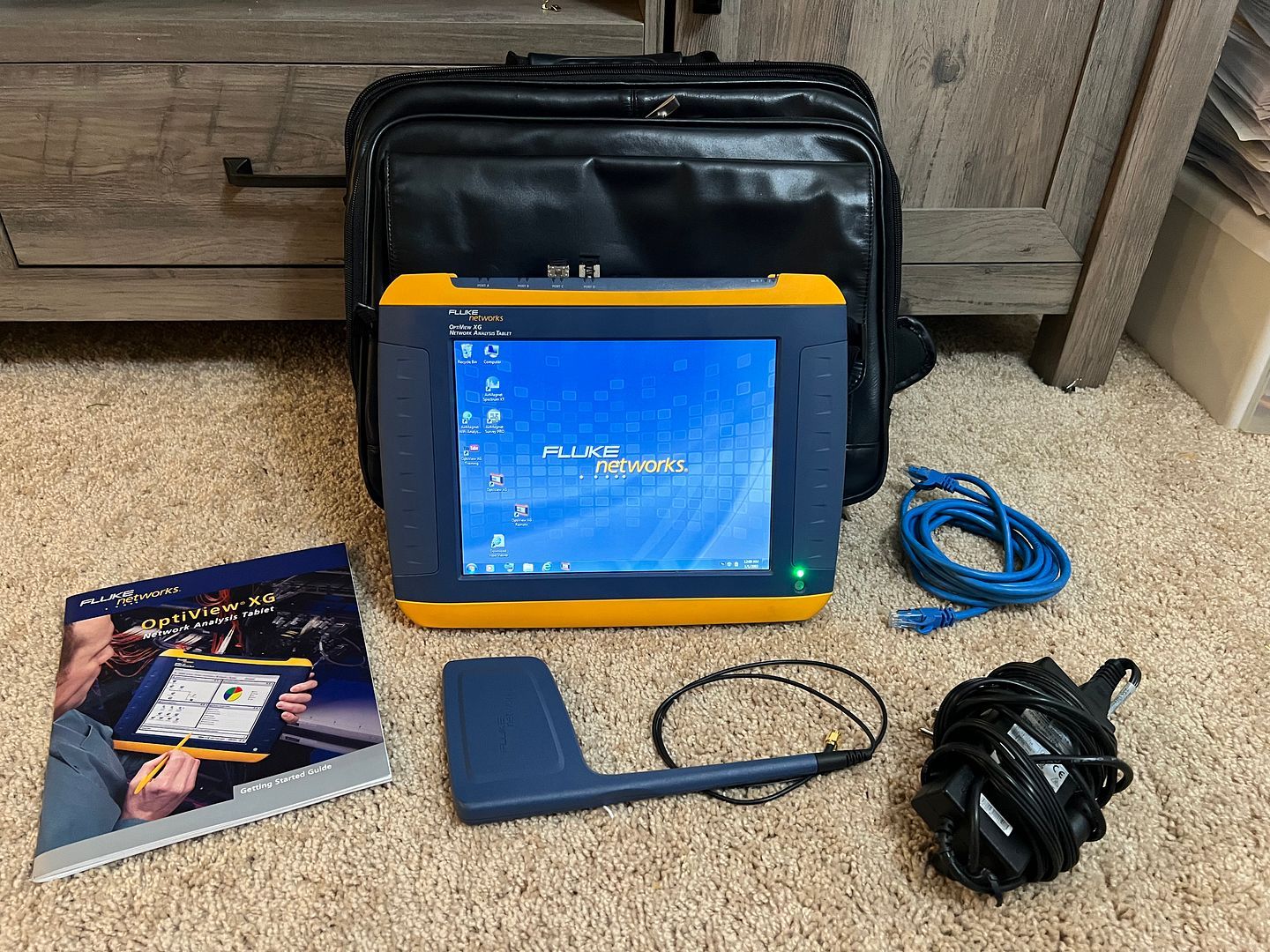

Fluke Optiview OPVXG-10G Network Analyzer with Wireline Analysis Option, Wi-Fi Antenna and Accessories!

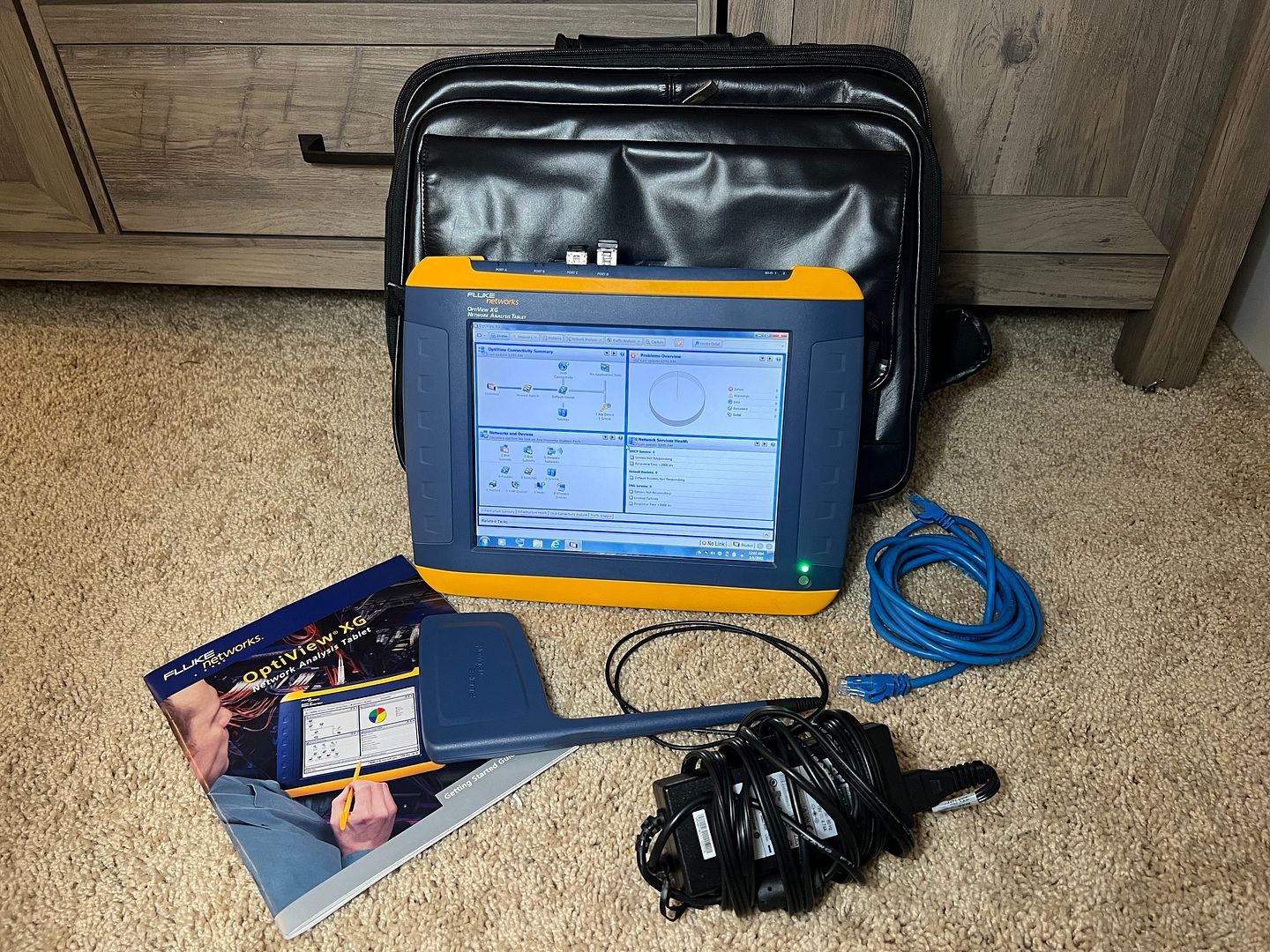

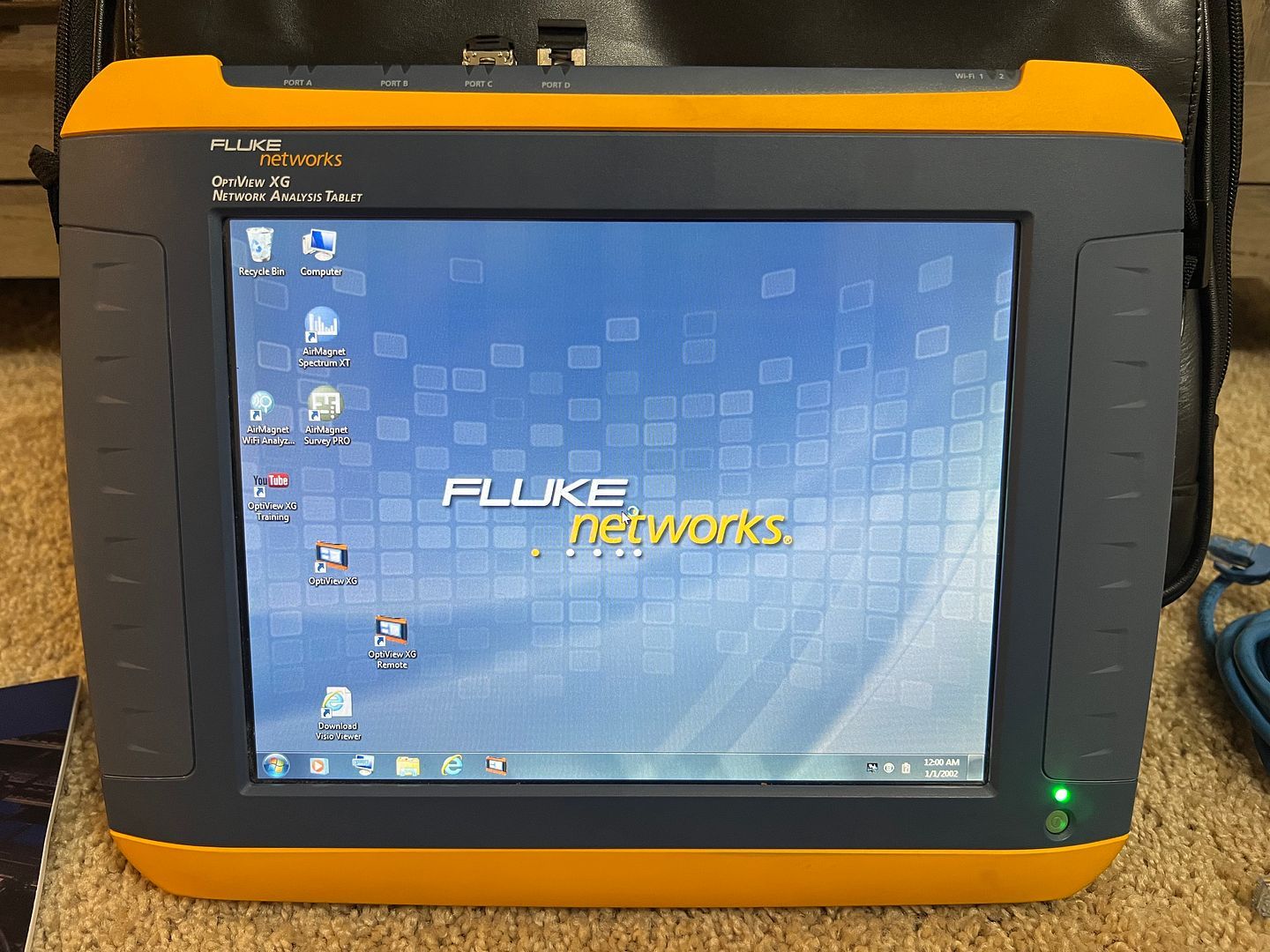

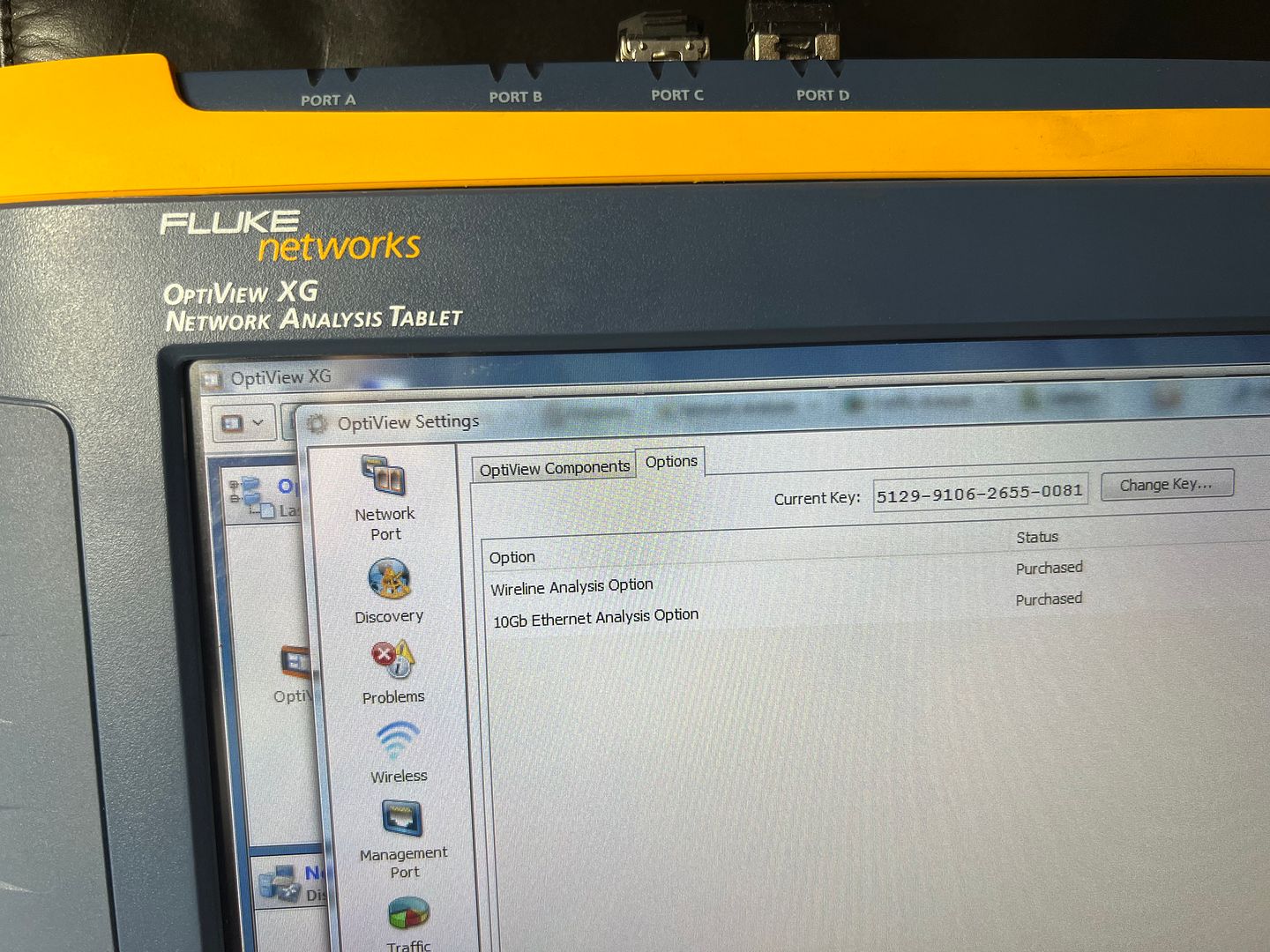

You are bidding on a Fluke Optiview OPVXG-10G Network Analyzer with Options 10G Ethernet and Wireline Analysis, Wi-Fi Antenna and other accessories.  It also has the AirMagnet WiFi Analyzer and Spectrum XT software installed.  The unit is in excellent shape, is fully functional and has a list price from Fluke of $57,332 USD.

The Tablet for Network Engineers

The OptiView XG's unique tablet form factor provides the mobility to connect, analyze and troubleshoot anywhere in the network at the desk, in the data center, or at the end user location. It can quickly analyze the performance and health of devices, interfaces and paths on your network which moves beyond traditional LAN/WAN switching and routing to a true network fabric that incorporates heterogeneous physical devices, wireless networks, virtualized servers and networks.


• Integrates the latest wired and wireless technologies with powerful dedicated hardware in a unique tablet form factor providing mobility to connect, analyze and solve network and application problems anywhere on the network
• Displays your network exactly the way you want to see it through intuitive, customizable dashboards
• Provides performance testing, 'on-the-wire' and 'in-the-air' automated analysis up to 10 Gbps
• Enables proactive analysis by analyzing the information you need before problems arise
• Out-of-the-box and customizable reports

Network Analysis


• Real-time discovery engine finds and tracks up to 30,000 devices hosts, phones, switches, routers, access points, servers and more
• Unique Path Analysis provides graphical view of the path between a user and application resources (local, remote, or cloud-based) and visually indicates performance data or problems on critical links and devices along the path
• Allows visibility of intermittent problems by collecting and monitoring granular data rather than the aggregated data collected by typical network management systems
• Automatically detects problems in the network and suggests resolution procedures
• Measure performance of your VMware® environment, including hypervisor availability, interface utilization, and resource usage levels
• Real-time NetFlow data finds bandwidth hogs

Traffic and Packet Analysis


• Ensures line-rate packet capture up to 10 Gbps for troubleshooting difficult application problems
• Performs application-centric analysis with a high-level view of the applications on the network with easy drill down capability
• Real-time traffic analysis shows top hosts, top conversations, top protocols who is using your bandwidth
• Go directly in-line (up to 1 Gbps) to observe traffic in real-time or capture at line rate without the need of an external tap

Wireless Analysis

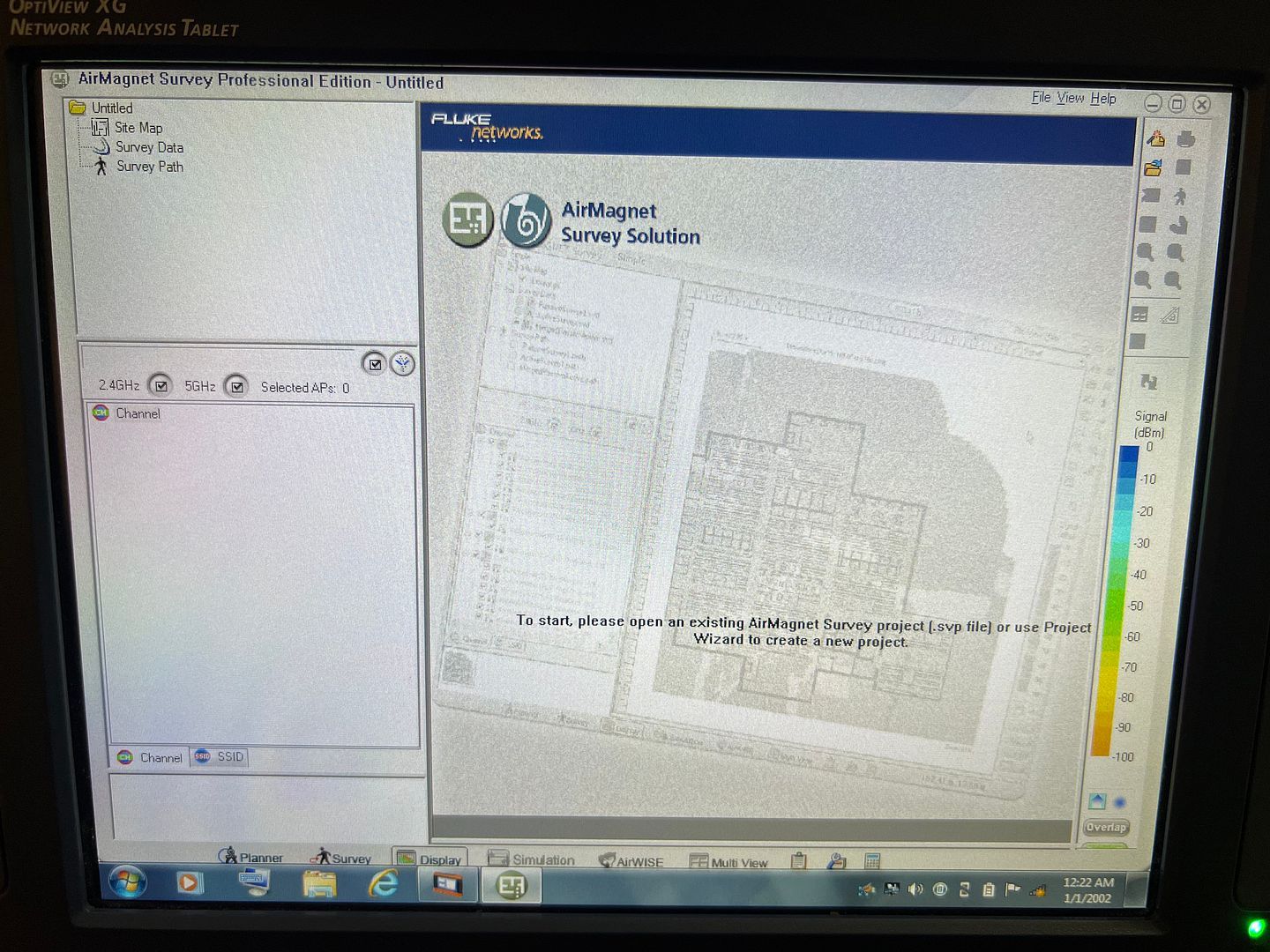

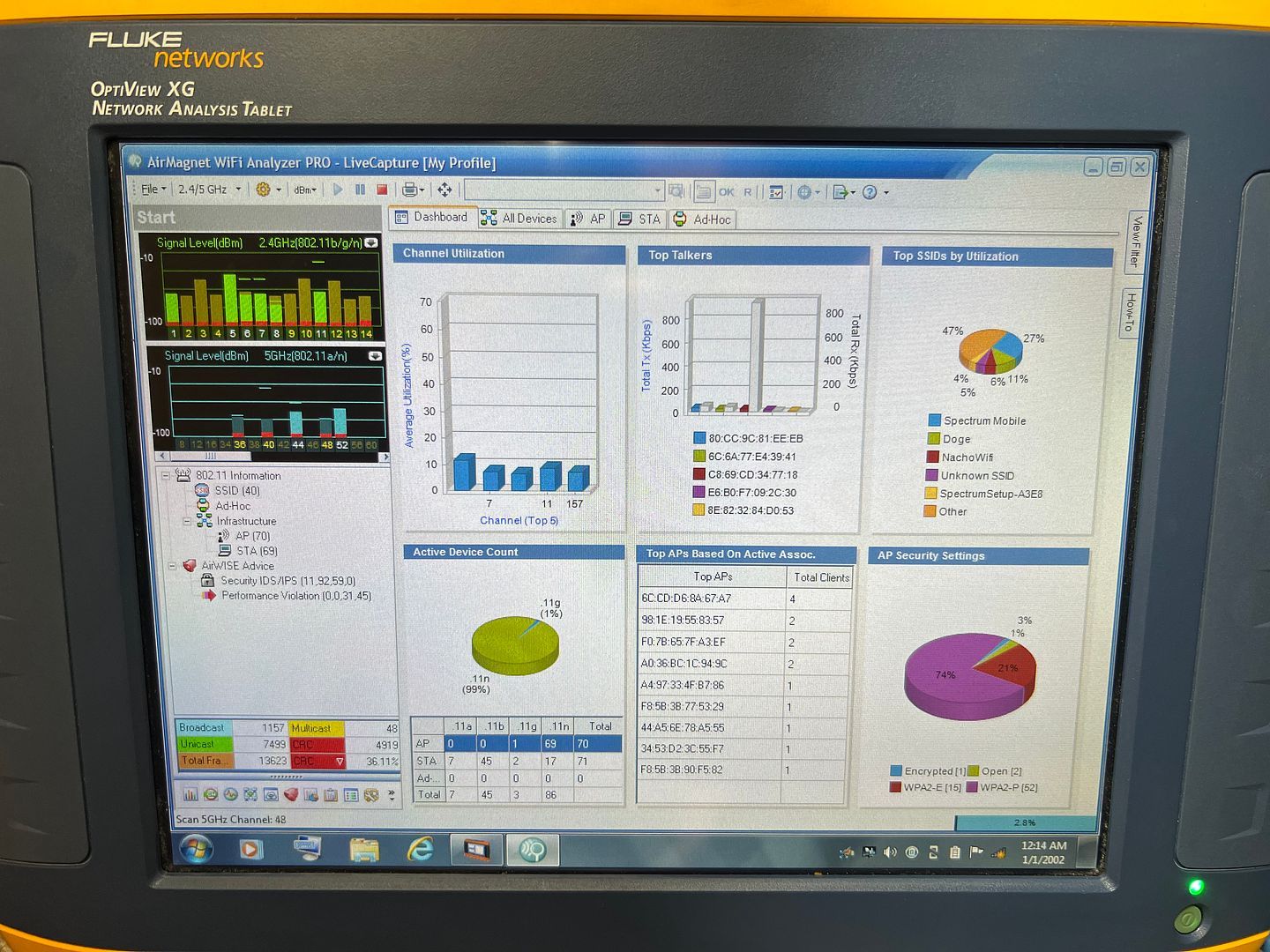

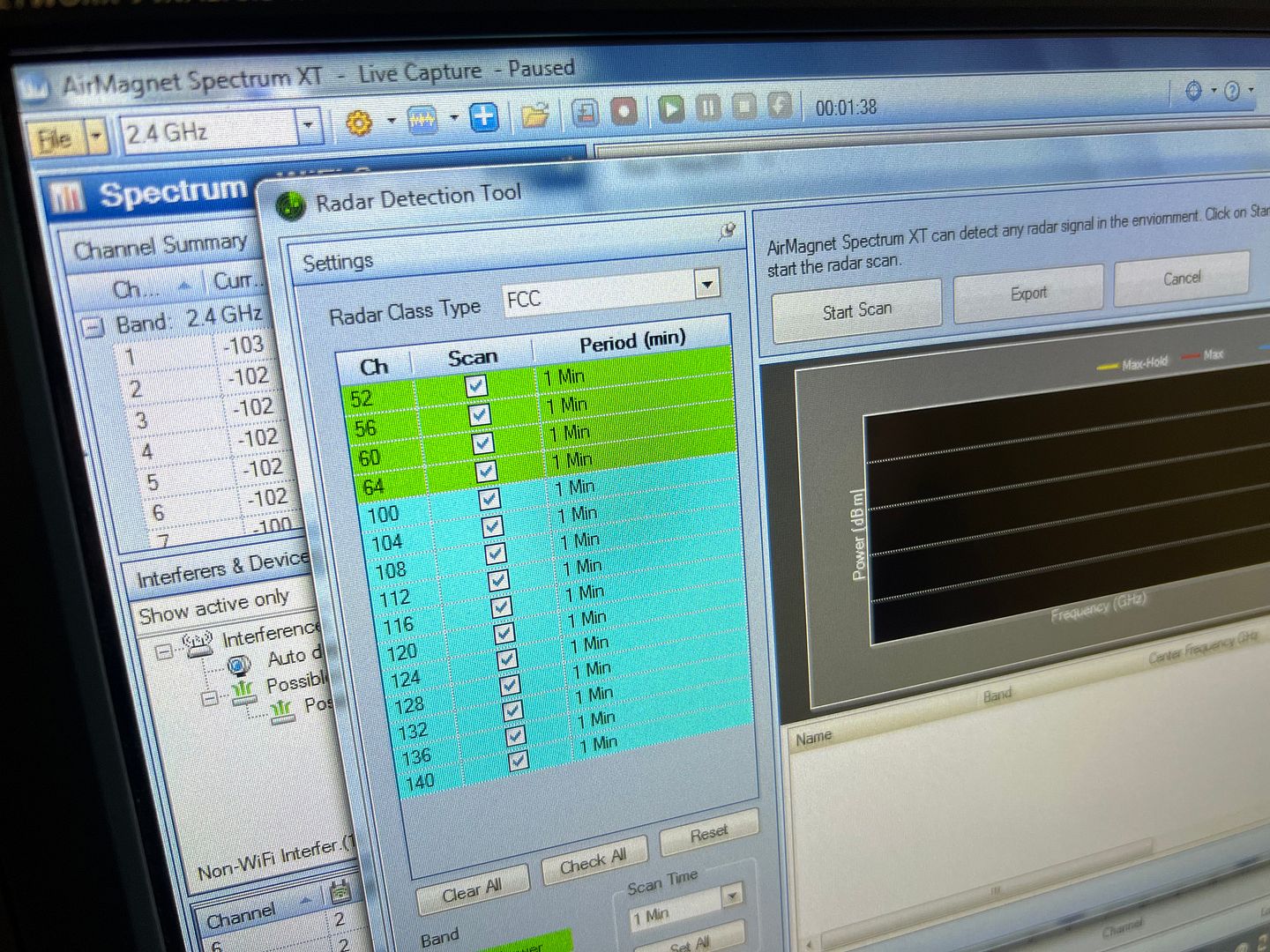

• Enables analysis of the WLAN environment using the award-winning AirMagnet WiFi Analyzer, Spectrum XT, Survey and Planning tools
• Find rogue clients and access points that could be jeopardizing the security of your network
• Identify and find sources of RF interference that impact the performance of your WLAN
• Quickly troubleshoot WLAN performance issues configuration problems, co-channel interference, slow clients
• Discovery and querying of wireless LAN controllers provides information about wireless networks across your enterprise

Performance Testing


• Test service provider SLAs, troubleshoot network bottlenecks, validate new architectures, and assess networks for new technology or application deployments
• Measures end-to-end network performance in terms of bandwidth, latency, jitter, loss and availability up to 10 Gbps
• Testing at operational speeds (less than line-rate) in conjunction with Path Analysis reveals network bottlenecks
• Class-of-Service testing and multiple test streams (up to 8 simultaneous) ensures availability and performance of QoS throughout your network, and whether carrier links are supporting QoS

Tablet Form Factor

OptiView XG provides a wide range of functionality to adapt to the dynamic and diverse networks of today, in a convenient tablet for use anywhere in the network. It is the only tool that provides the capabilities to analyze and troubleshoot applications, wired networks (1 GbE, 10 GbE) and wireless networks (802.11a/b/g/n) from the perspective of either remote or local users. The unique tablet form factor designed specifically for network engineers provides the mobility to troubleshoot anywhere in the network, from the engineer's desk, in the data center or at the end-user location.

Key Features

• Portable - The XG is extremely portable. It is 14 inches (36 cm) measured diagonally. At just under 6 pounds (2.5kg) and 2 inches (5 cm) thin, the XG can be used anywhere.
• Multiple wireless adapters - The XG has two Wi-Fi adapters and one spectrum adapter built-in. The multiple adapters along with the portability make WLAN analysis and troubleshooting easy as you do not need to swap adapters or have extra external hardware.
• High-resolution display - A large, 10.25 inch high-resolution 1024x728 LCD display is remarkably crisp and vivid making it perfect for viewing and analyzing large amounts of data at once.

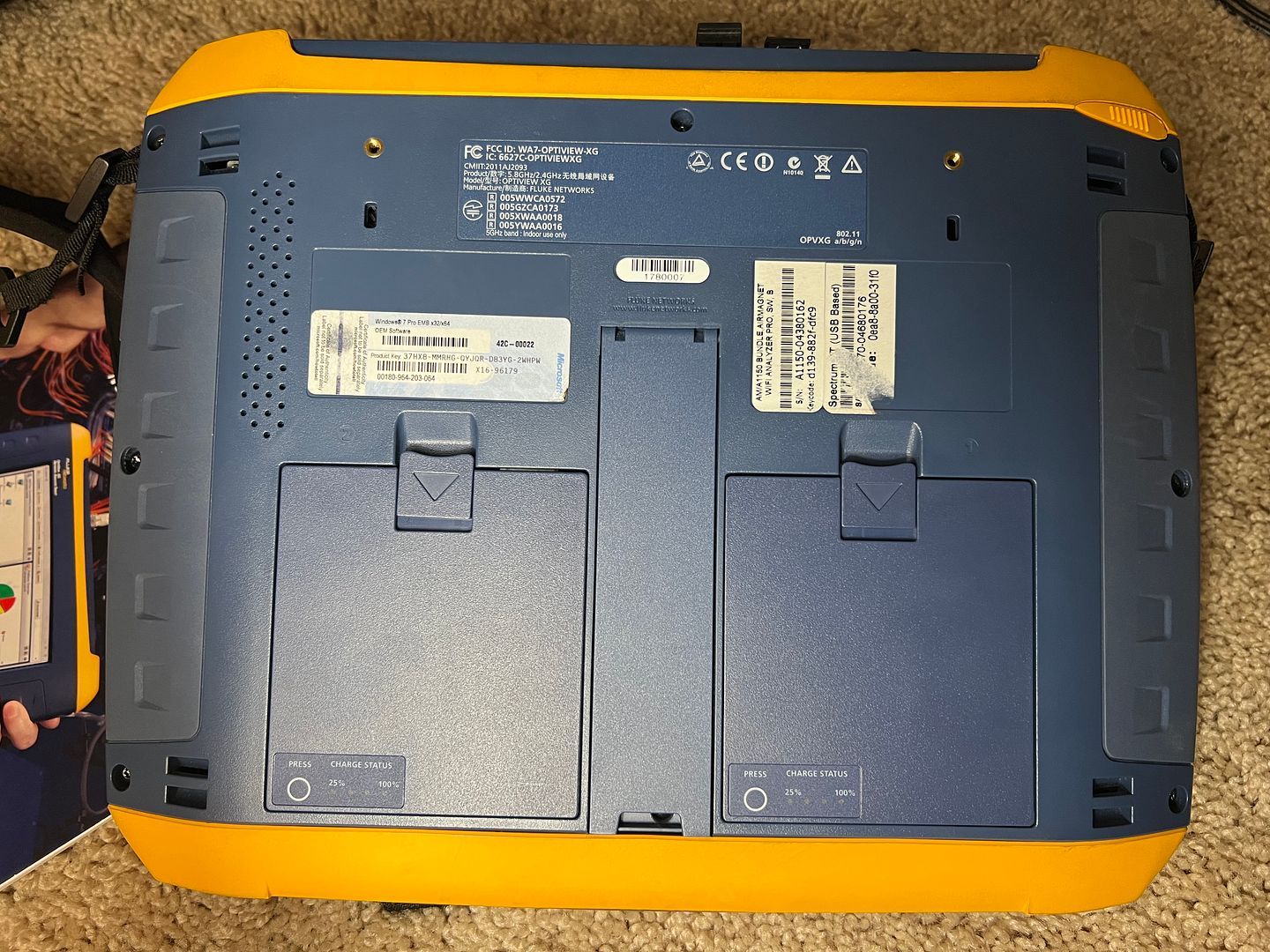

• Extendable 2 hours of battery life - The XG can be used for up to 4 hours on the battery for wired and wireless analysis (or 2 hours for wired AND wireless analysis). The batteries are hot swappable which means the XG can be used for a much longer time without losing data.

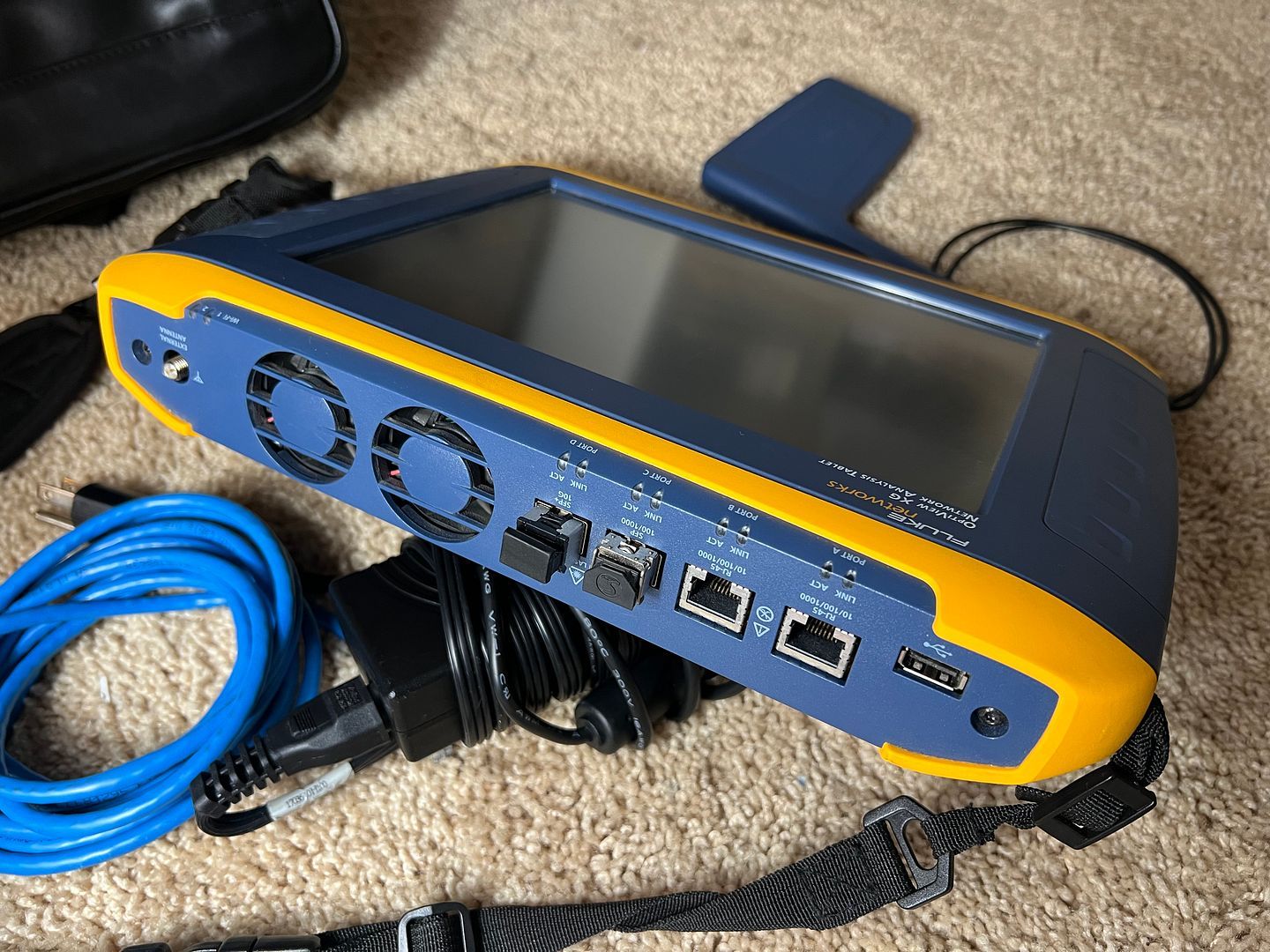

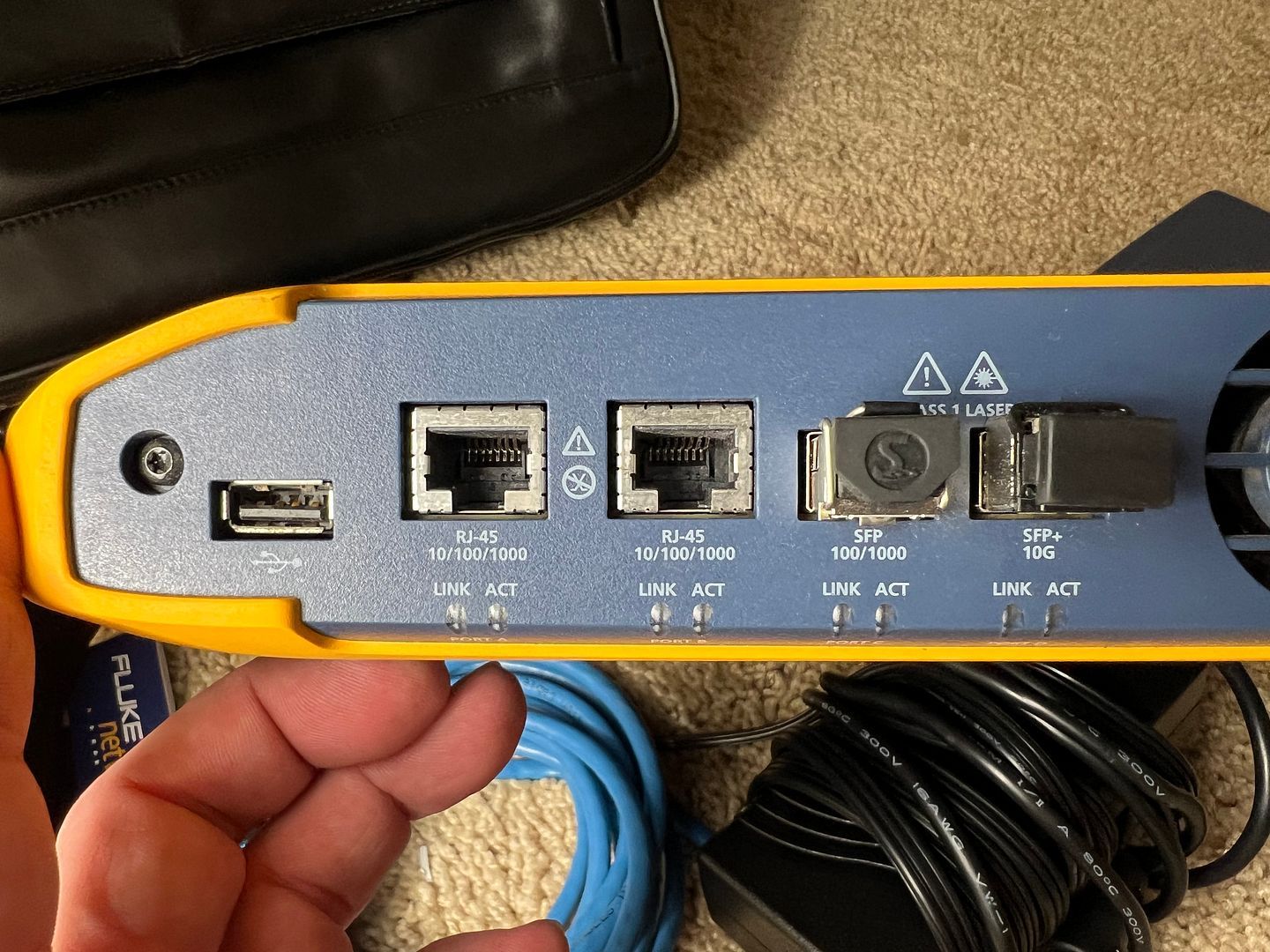

• Connectivity - The XG supports 10 Gbps and 1 Gbps fiber, 10/100M and 1 Gbps dual-port copper and 802.11a/b/g/n WLAN.

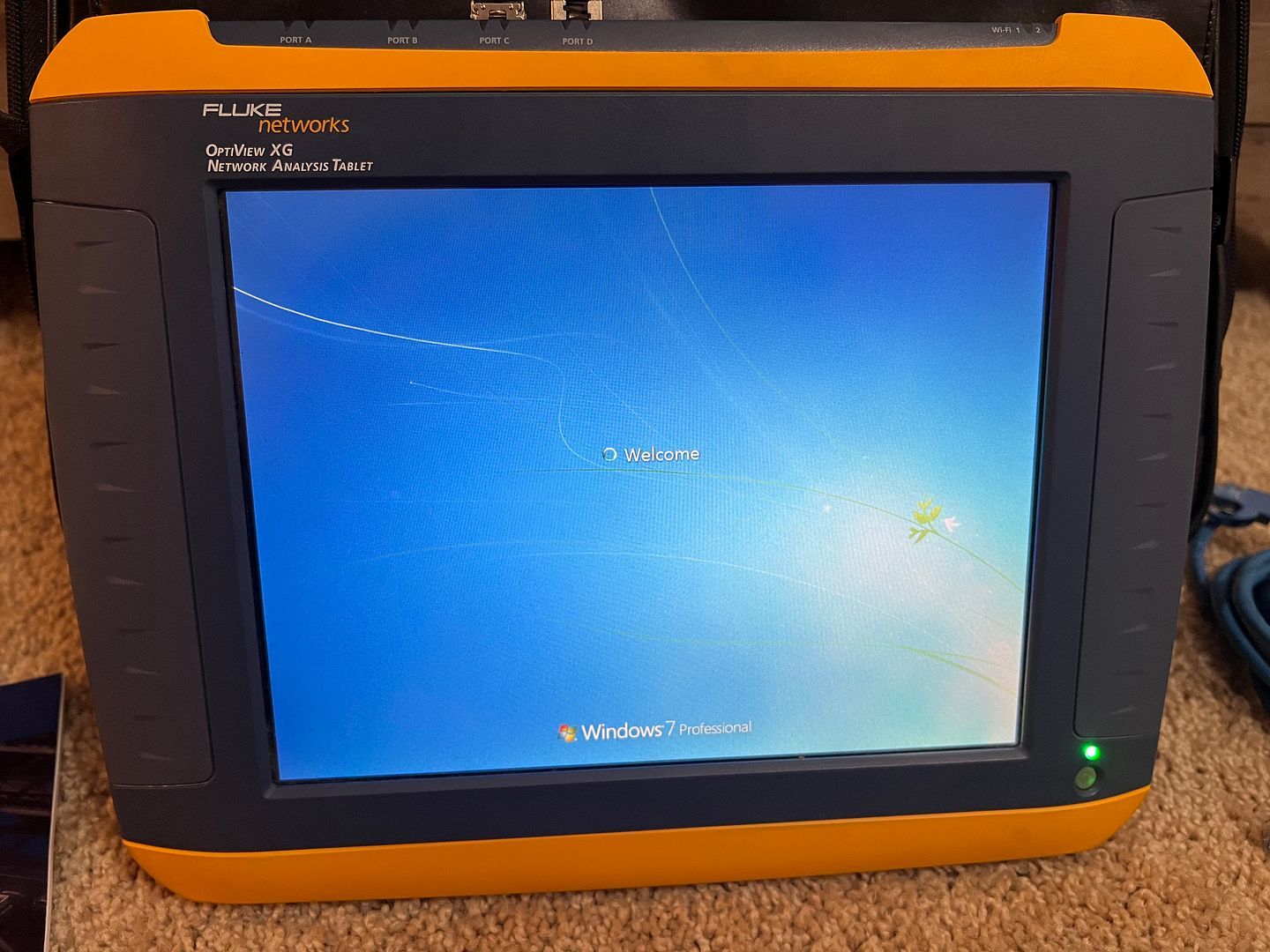

• Performance - The XG runs Windows® 7 (64-bit, SP1) with 4 GB of RAM. It has a 128 GB solid state removable drive. The XG obtains its processing power from an Intel® Core™ Duo 1.2 GHz processor. The XG is capable of 10 Gbps full line-rate capture and has a 4 GB dedicated capture buffer.

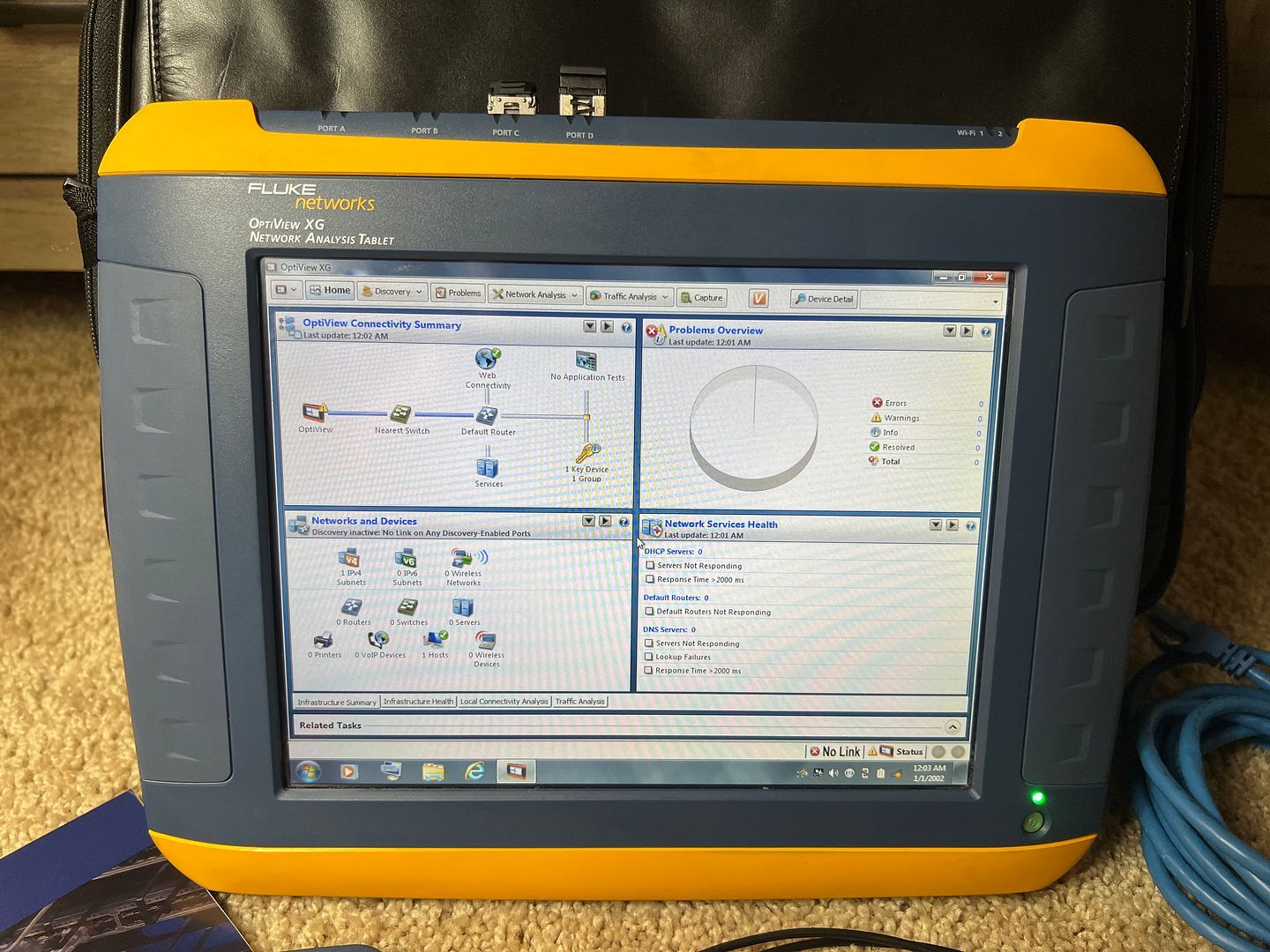

User Configurable Dashboards
Present the relevant data to the right audience. OptiView XG has extensively customizable dashboards that transform collected data into an actionable presentation. The dashboard can be customized for a particular user or for the entire enterprise. Create dashboards for keeping an eye on network and applications by site or even by business function. Save and export them to different members of your team. The dashboard provides an at-a-glance overview of the current status of your network with critical metrics from routers, switches, firewalls, servers, services, and other infrastructure devices. Even remote users can set up dashboards to get their own view of network operations.


Customizable Dashboards
Network and Application Issue Reporting Engine
OptiView XG offers a number of built-in reports, making it quick and easy to report on application and network problems. While viewing a screen, press the Reports key to generate HTML or PDF reports on protocols, top hosts, top conversations, devices, networks, problems and many more.

Customize out-of-the-box reports and create completely customized reports using the configurable dashboards in just a few clicks. The ability to choose what data to populate in a report enables users to quickly see the information needed. You can even create reports for specific user profiles, making it easy to generate reports for specific departments or recipients.


Customizable Reporting
Problem Alerting and Notification SNMP Trap and Syslog Messages
OptiView XG scans the entire network infrastructure, identifying issues and bringing them to your attention. When problems are discovered, XG utilizes the on-board Windows Event Log, SNMP service and syslog agent to send problem notifications to the user's network management system (via SNMP Traps or syslog messages), where they can be routed to the appropriate technician.

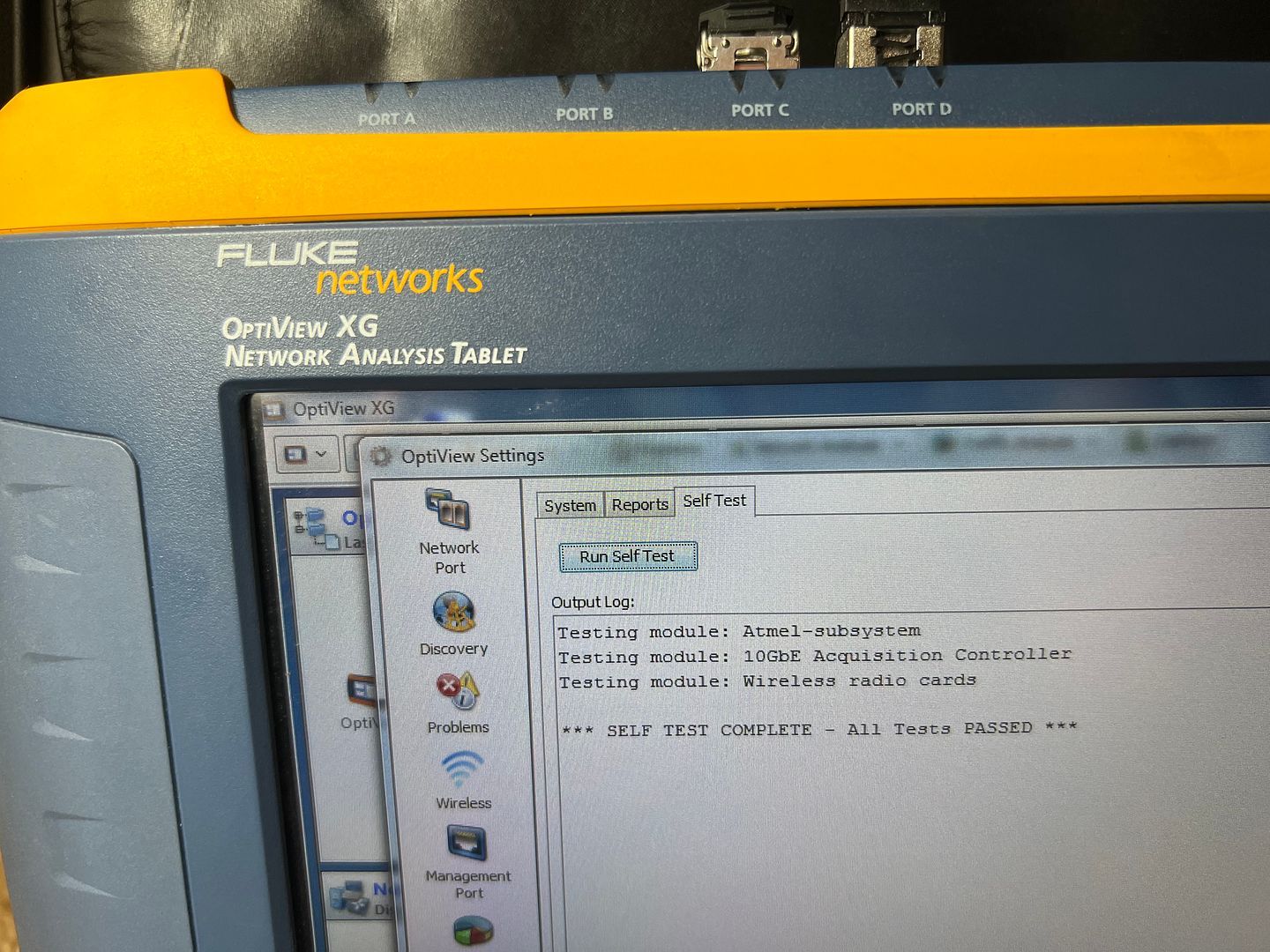

This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.

Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.

We will accept payment for this item by company check, cashier's check and wire transfer only.

If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.

Please note that shipping and insurance costs are non-refundable.

Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.


Make sure that you check out our other auctions for more great deals on test and measurement equipment.

Thank you and good luck bidding
