Keysight Agilent N2830A 4 GHz InfiniiMax III+ Series Probe Amplifier CALIBRATED

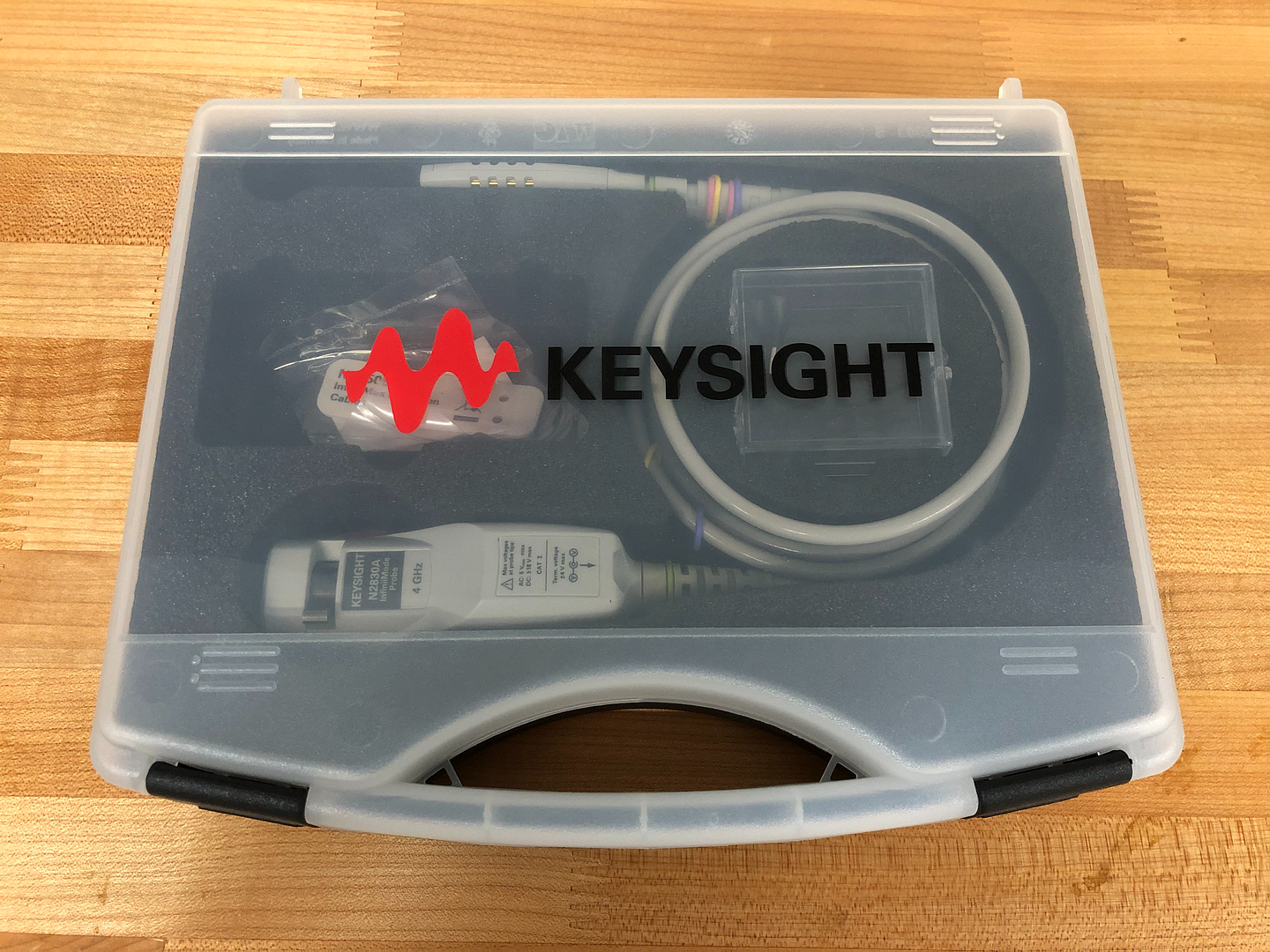

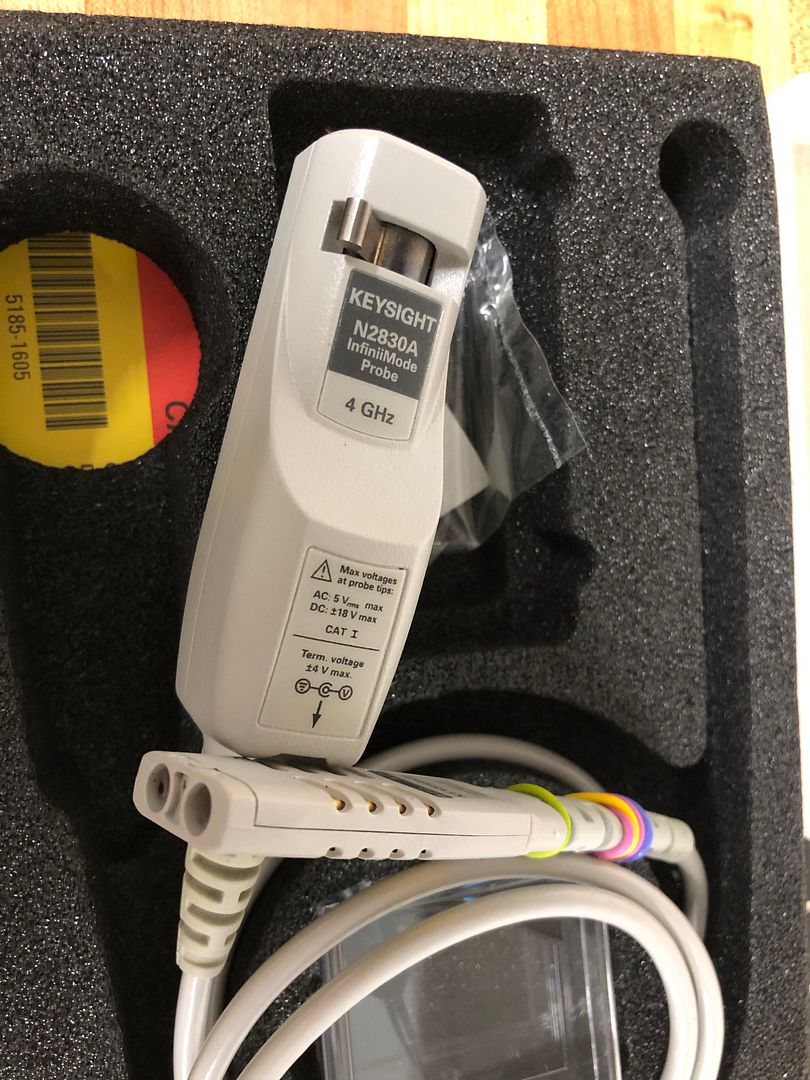

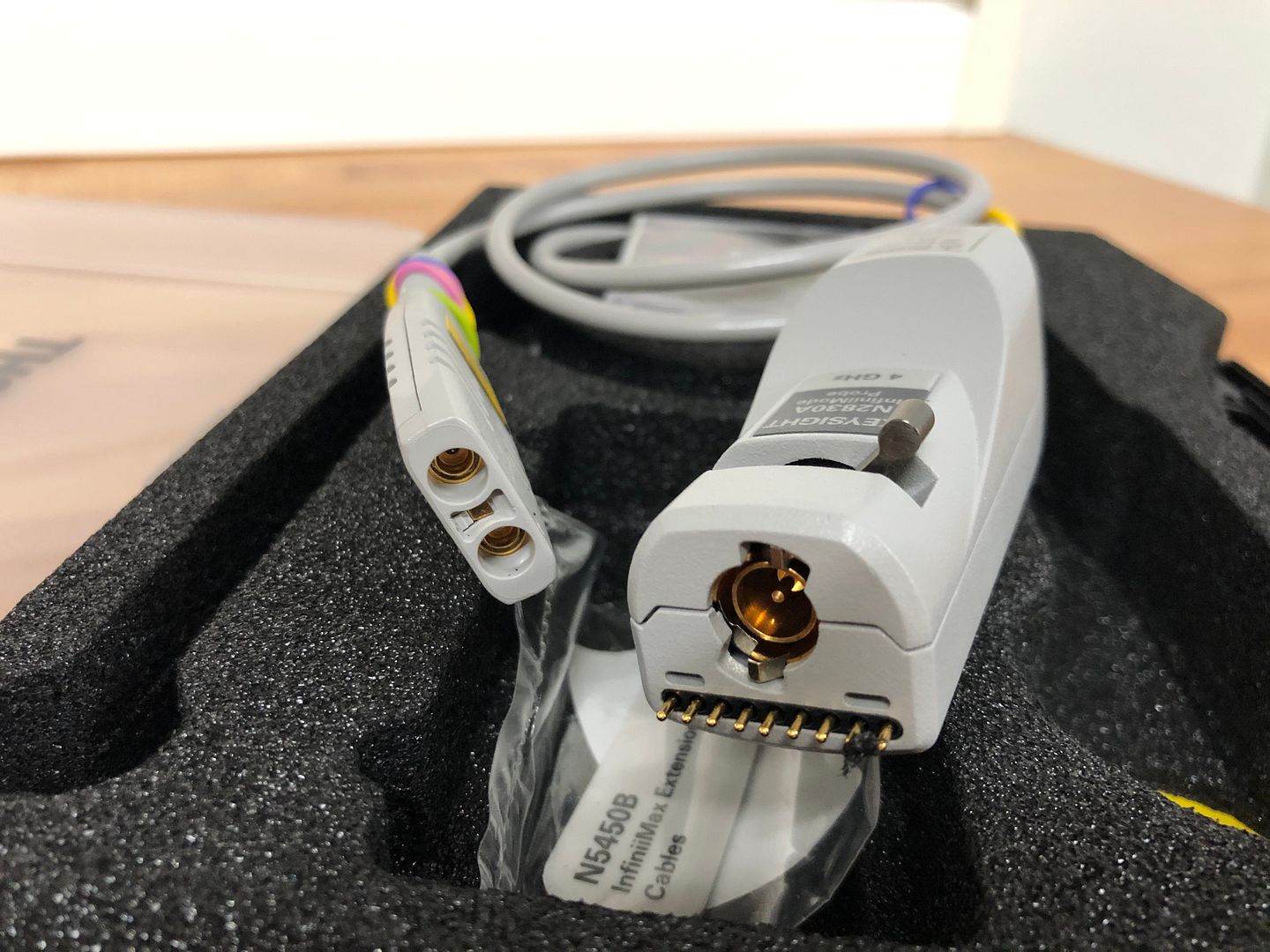

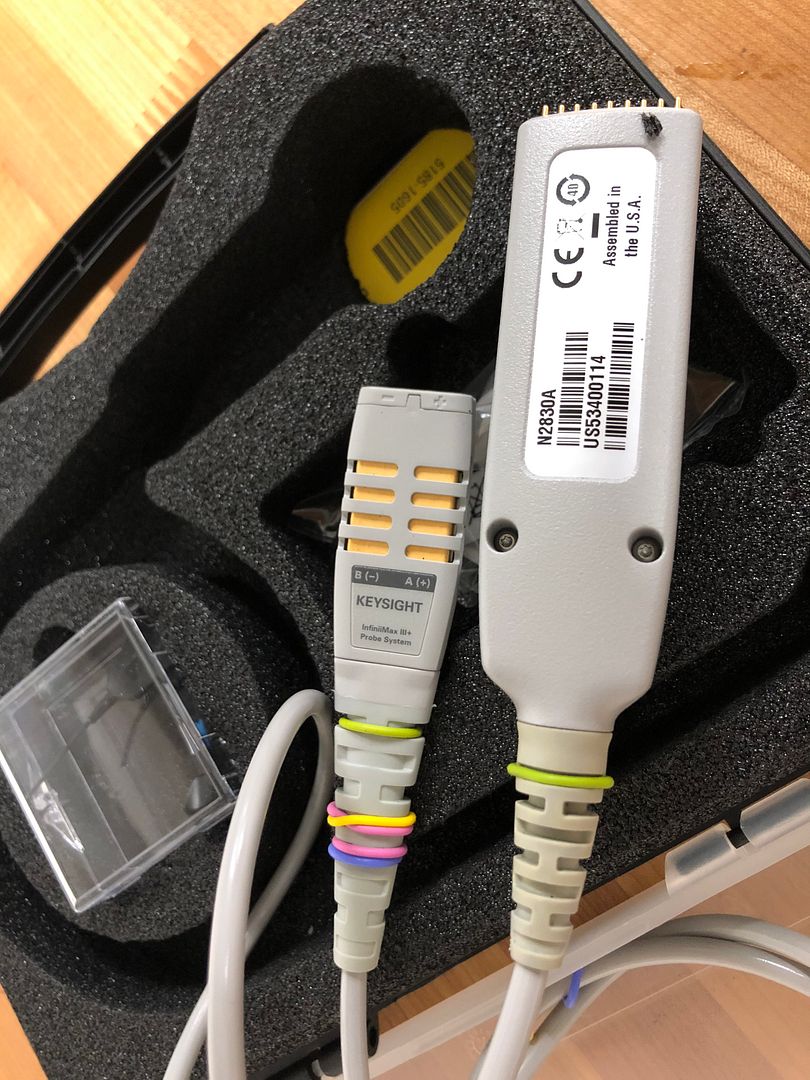

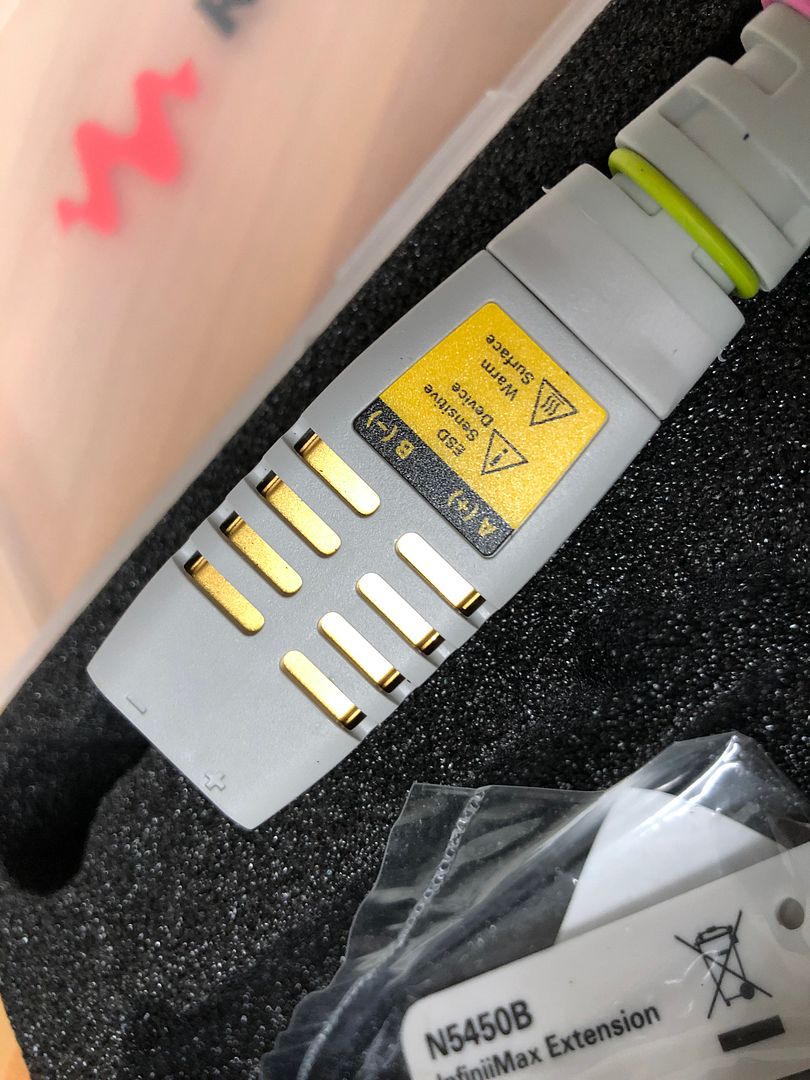

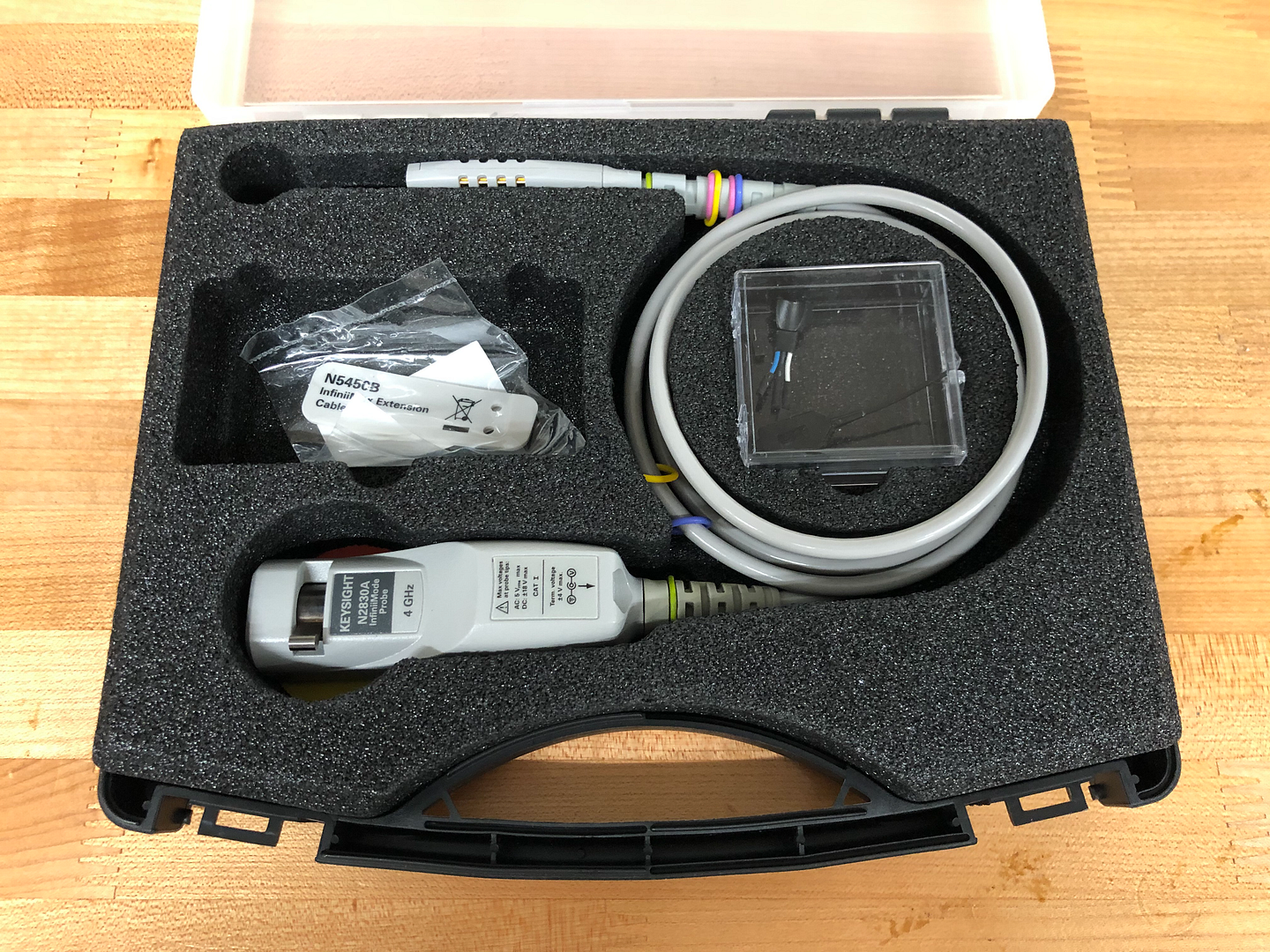

You are bidding on an Keysight Agilent N2830A 4 GHz InfiniiMax III+ Series Probe Amplifier complete with case and accessories. It will arrive with a fresh calibration with certificate performed by the manufacturer.  THIS PROBE HAS A CURRENT LIST PRICE FROM KEYSIGHT TECHNOLOGIES OF $6174 USD!

The N2830A Series InfiniiMax III+ probing system is the next generation of InfiniiMax probing, greatly expanding the measurement capability and usability of a probe capable of measuring all components of a differential signal. The built-in InfiniiMode technology allows customers to switch differential, single-ended, and common mode without adjusting probe tip connections.

The N2830A Series probe’s InfiniiMode provides the following modes of operation:

• A – B (differential)
• A – ground (signal singled A)
• B – ground (signal singled B)
• (A + B)/2 – ground (common mode)

The InfiniiMax III+ works with the full array of InfiniiMax III probe heads and supports the full bandwidth of the InfiniiMax III+.

Key Features and Specifications:

• Bandwidth

  • 4 GHz (-3 dB)
  • Tr = 108.5 psec (10-90%)

  Input range

  • DC attenuation ratio: 10:1 or 5:1
  • Input voltage range: 2.5 Vpp or ± 1.25 V at 5:1 attenuation, 5 Vpp or ± 2.5 V at 10:1 attenuation
  • Input common mode range: ± 7 VDC to 100 Hz, ± 1.25 V at >100 Hz at 5:1 attenuation, ± 2.5 V > 100 Hz at 10:1 attenuation
  • Offset range: ± 16 V when probing a single-ended signal

  Input impedance

  • DC input resistance : R diff = 100 kΩ ± 2%, R se = 50 kΩ ± 2%
  • Input resistance at > 10 kHz: R diff = 1 kΩ, R se = 500 Ω
  • Input capacitance : C diff = 32 fF, C se = 44 fF (with ZIF probe head)

  Connectivity

  • N2848A InfiniiMax III QuickTip probe head and N5445A InfiniiMax III browser
  • N5439A InfiniiMax III ZIF probe head
  • N5444A InfiniiMax III 2.92 mm/3.5 mm/SMA probe head
  • N5441A InfiniiMax III solder-in probe head

This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
