Keysight/Agilent N9912A 4GHz FieldFox Handheld RF Analyzer - LOADED & CALIBRATED

$12,750.00
(No reviews yet) Write a Review
SKU:
275543241603
MPN:
N9912A
Manufacturer:
Agilent/Keysight
Brand:
Agilent/Keysight
Model:
N9912A
Analyzer Type:
Handheld Spectrum Analyzers
Keysight/Agilent N9912A 4GHz FieldFox Handheld RF Analyzer - LOADED & CALIBRATED

Product Description

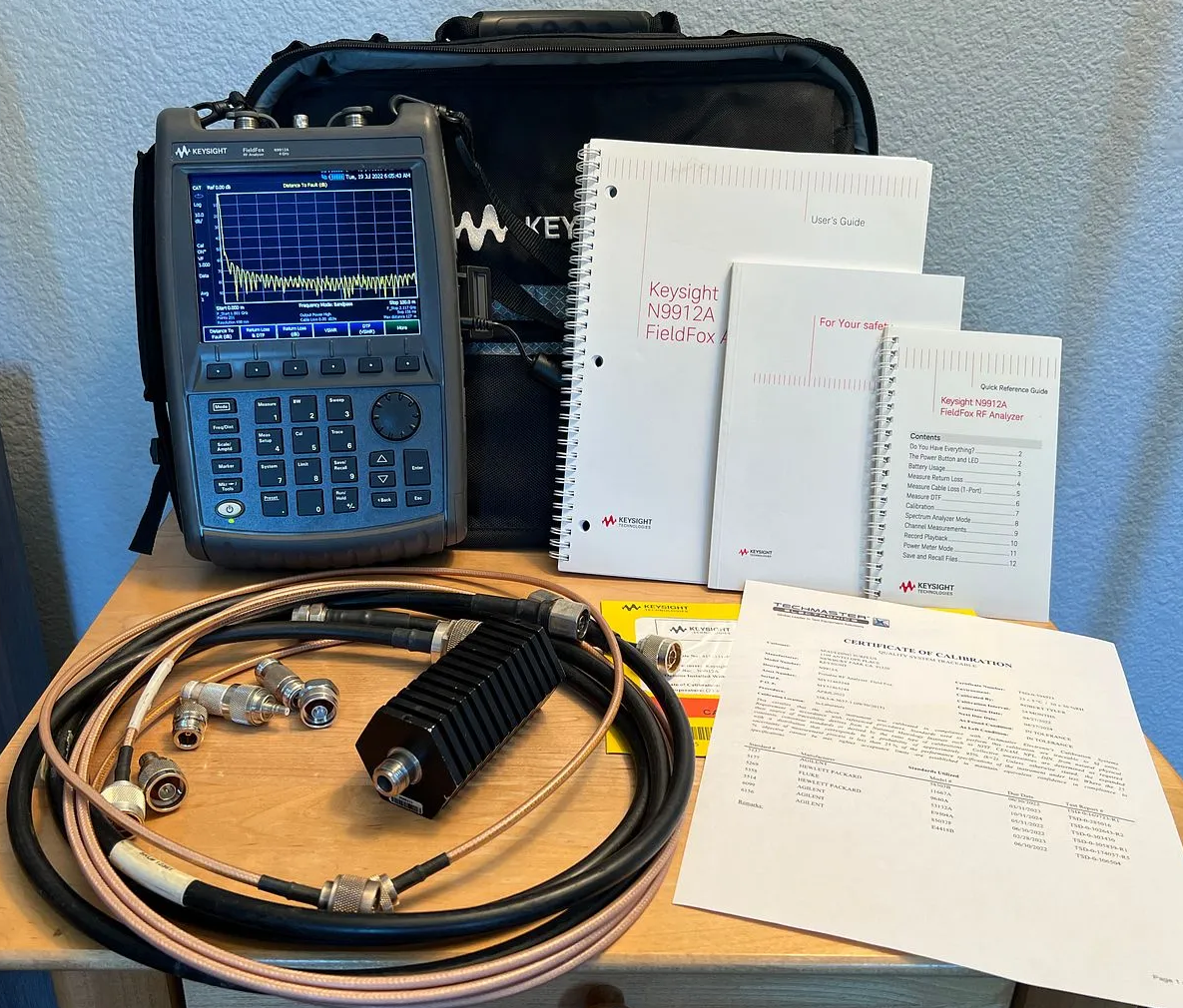

Keysight N9912A 4 GHz FieldFox Handheld RF Analyzer with Options 104/111/230/235/311 - CALIBRATED!(edited)_IMG_4448

Keysight N9912A 4 GHz FieldFox Handheld RF Analyzer with Options 104/111/230/235/311 Installed - CALIBRATED!


You are bidding on an Agilent / Keysight N9912A 4 GHz FieldFox Handheld RF Analyzer with Options 104 (4 GHz cable and antenna analyzer), 111 (QuickCal), 230 (4 GHz Spectrum Analyzer), 235 (PreAmplifier for Spectrum Analysis Capability) and 311(Channel Power Meter).  This unit comes with the accessories shown in the auction pictures.  It will also arrive with a fresh calibration performed by an ISO 17025 accredited lab.  The N9912A with this option configuration is currently sold by Keysight for $13,500 USD!

Agilent's FieldFox RF vector network analyzer is the world's most accurate handheld VNA. A standard FieldFox RF VNA provides T/R measurements, or S11 and S21, with magnitude and phase. Adding Option 122 (full 2-port S-parameters) allows two-port cal and measurement of all 4 S-parameters at the same time. The VVM option also provides ratio measurements of two channels, A/B or B/A. Other applications include distance-to-fault and VSWR testing, absolute power measurements, and characterization of 75-ohm cable TV devices. Standard accessories include AC/DC adapter, battery, and soft carrying case.

N9912A is a portable battery-operated RF analyzer; N9912A includes a cable and antenna tester, distance to fault tester, spectrum analyzer, power meter, 1-channel vector voltmeter, and transmission/reflection vector network analyzer.

Keysight N9912A FieldFox is the world's most integrated handheld instrument for wireless network installation and maintenance (I&M). FieldFox improves RF field engineers' and technicians' productivity to perform base station I&M more efficiently and accurately.

Key measurements include cable and antenna test, spectrum analysis, vector network analysis, and true average power measurements. The Keysight FieldFox handheld RF analyzer is the first and only RF tool for base station I&M that is calibration-ready at the test port. It combines multiple RF measurement capabilities in one rugged, compact and lightweight package and can tackle complex wireless networks with test times that are more than 50 percent faster than traditional testers.

Keysight's FieldFox is the only handheld analyzer that can make return-loss and distance-to-fault measurements at the same time. This allows users to quickly check system performance and identify potentially degraded system components simultaneously, doubling the efficiency compared to traditional testers.

Key features of Keysight's FieldFox handheld RF analyzer, include:

  • Integrated QuickCal eliminates the need to carry a calibration kit into the field, simplifying cable and antenna test and providing worry-free accuracy and repeatability with every measurement.
  • Immediate calibration with FieldFox's CalReady makes the unit calibration ready at the cable and antenna test port immediately following power-up or preset.
  • A task-driven user interface derived directly from standard field test procedures guides performance tasks naturally and easily.
  • Unmatched sweep speed reduces time-to-problem resolution with test times more than 50 percent faster than traditional RF handheld instruments.
  • Fast fault location with 1001-point resolution and 96-dB dynamic range in the spectrum analysis mode.
  • Versatile field usability with its lightweight (6.2 lbs.), transflective display, backlit keys, simple data transfer and modern connectivity. The water-resistant chassis withstands wide temperature ranges and humid environments, meeting tough environmental standards (MIL-PRF-28800F).

Measurements

  • Cable and antenna analyzer for return loss, one-port cable loss, distance to fault, line sweeping, and VSWR measurements
  • Handheld network analyzer (S11, S21, phase, and Smith Chart)
  • Handheld spectrum analyzer, optional preamplifier
Specifications:

  • Standard CAT and optional VNA: 2 MHz to 6 GHz
  • Spectrum Analyzer (optional): 100 kHz to 6 GHz
  • Carry the world’s most integrated handheld RF analyzer: standard model includes cable and antenna analyzer
  • Expand capabilities with optional T/R VNA, spectrum analyzer, built-in power meter, and more
  • Save time by measuring RL and DTF simultaneously in the same sweep
  • Calibrate simply in the field with QuickCal
  • Easily measure average and pulse power with a USB power sensor
  • Lightest, all-in-one analyzer at only 6.2 lb. (2.8 kg)

This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes w/ a 14 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.

Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.

We will accept payment for this item by company check, cashier’s check and wire transfer only.

If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.

Please note that shipping and insurance costs are non-refundable.

Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.

Make sure that you check out our other auctions for more great deals on test and measurement equipment.



Thank you and good luck bidding



(edited)_IMG_4448

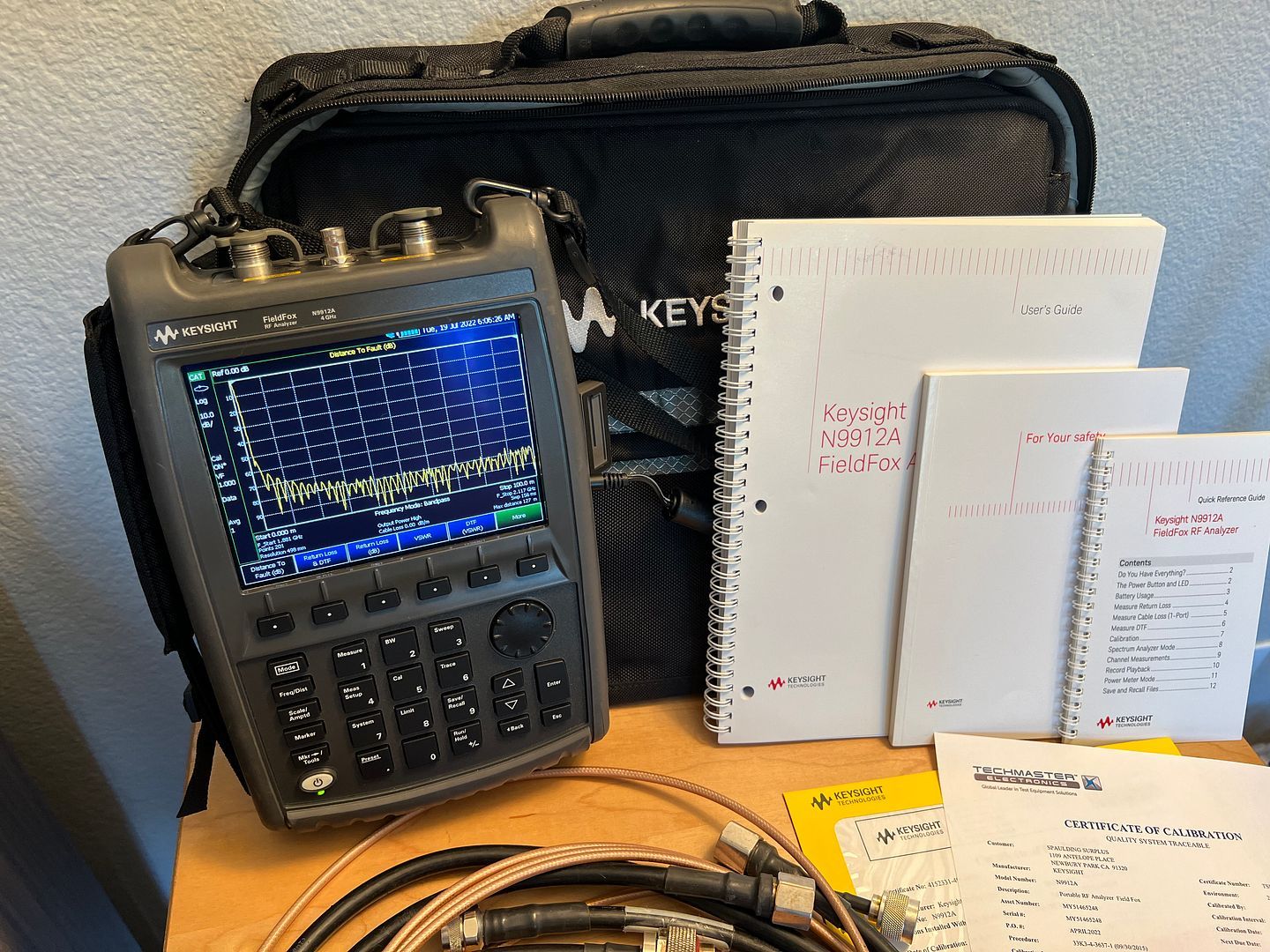

IMG_4450

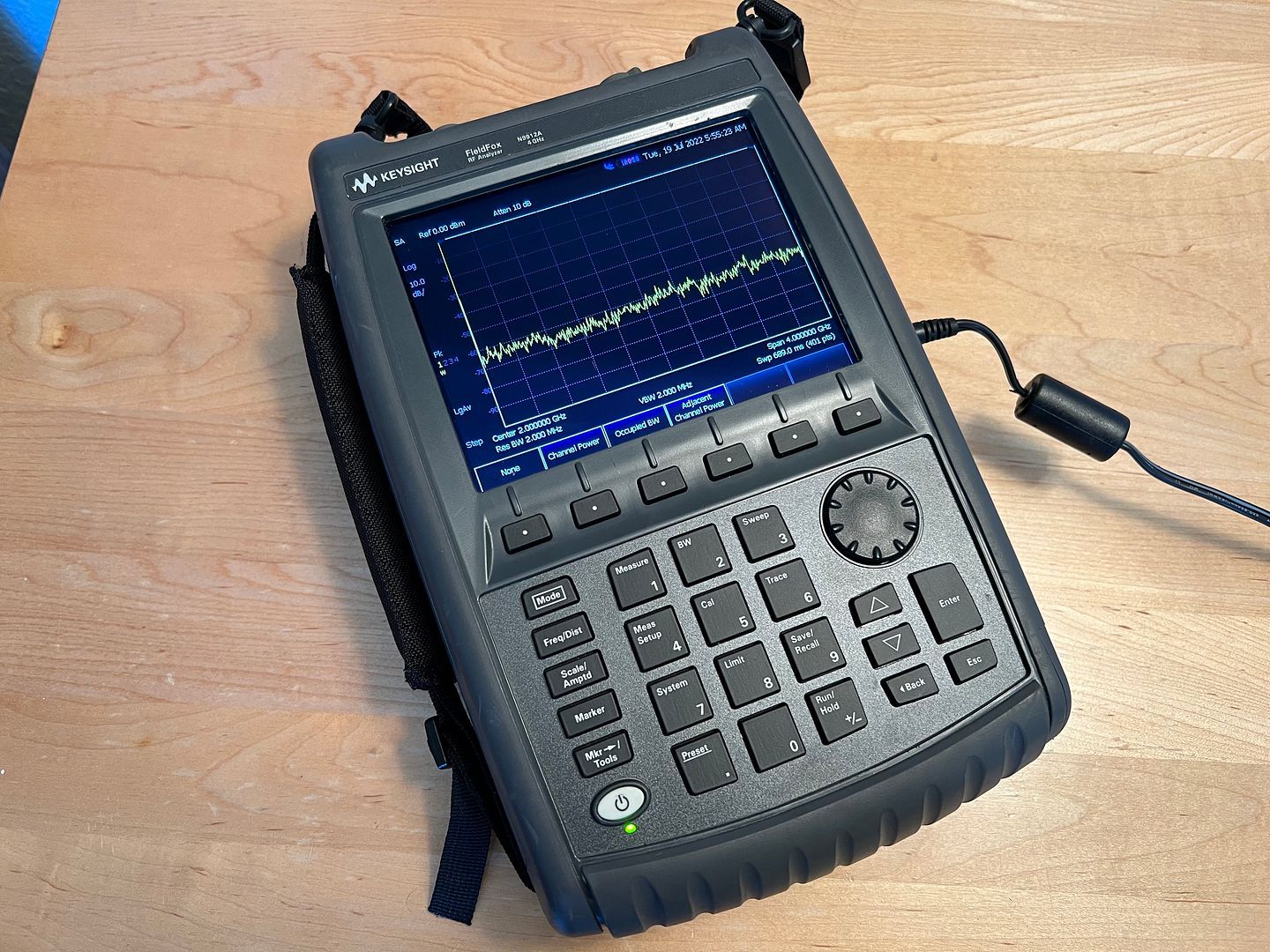

IMG_4431

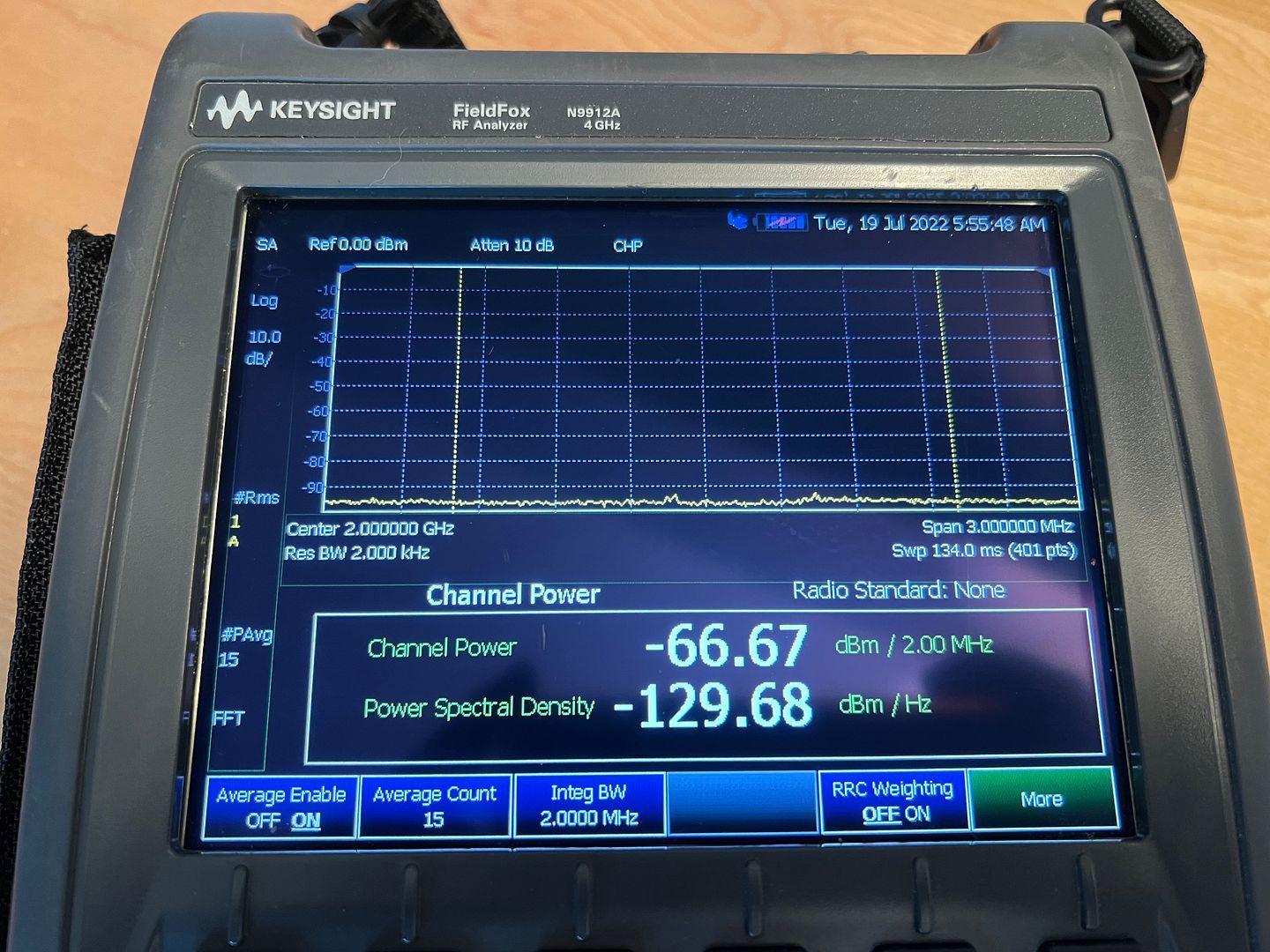

IMG_4433

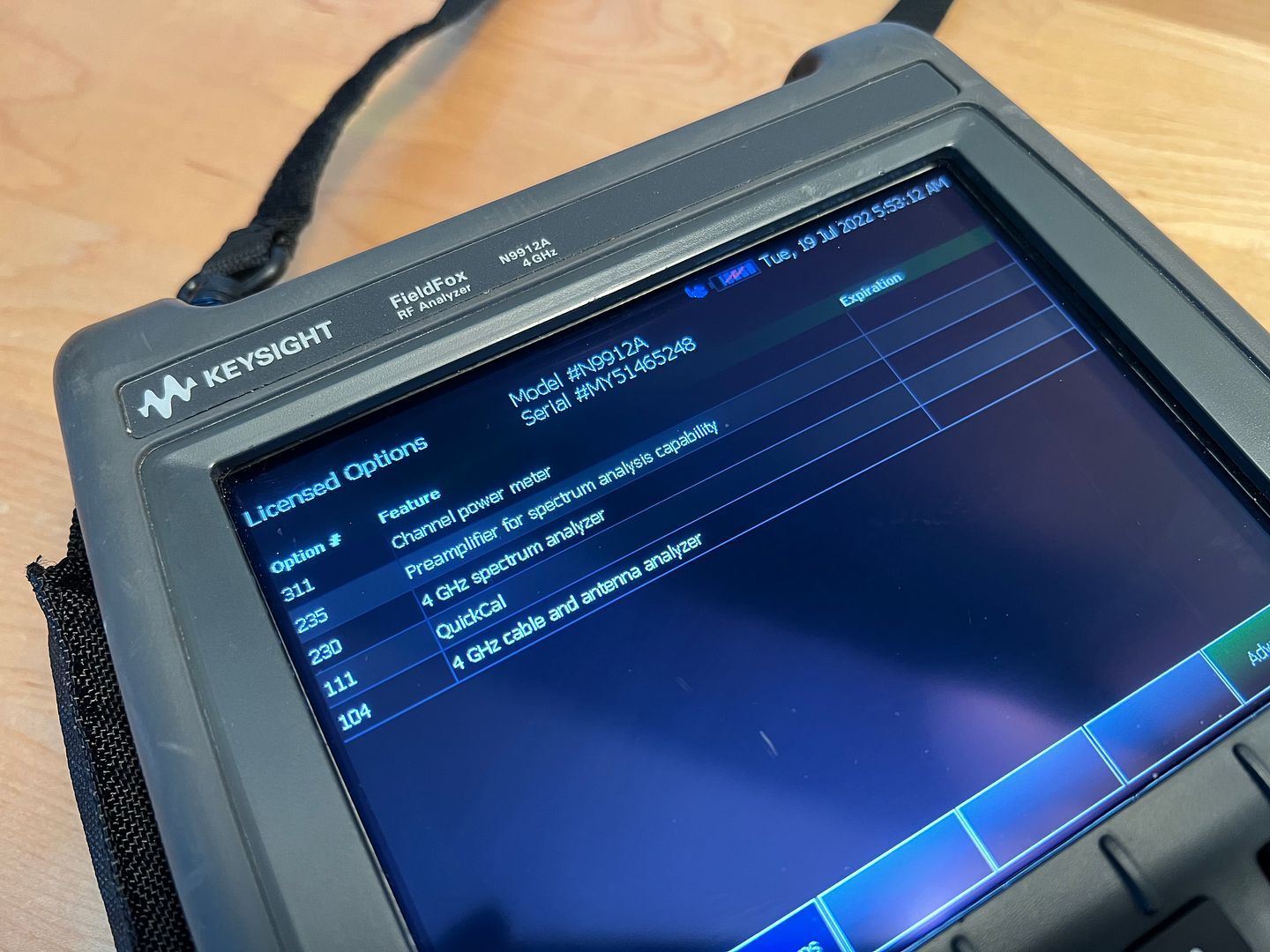

IMG_4430

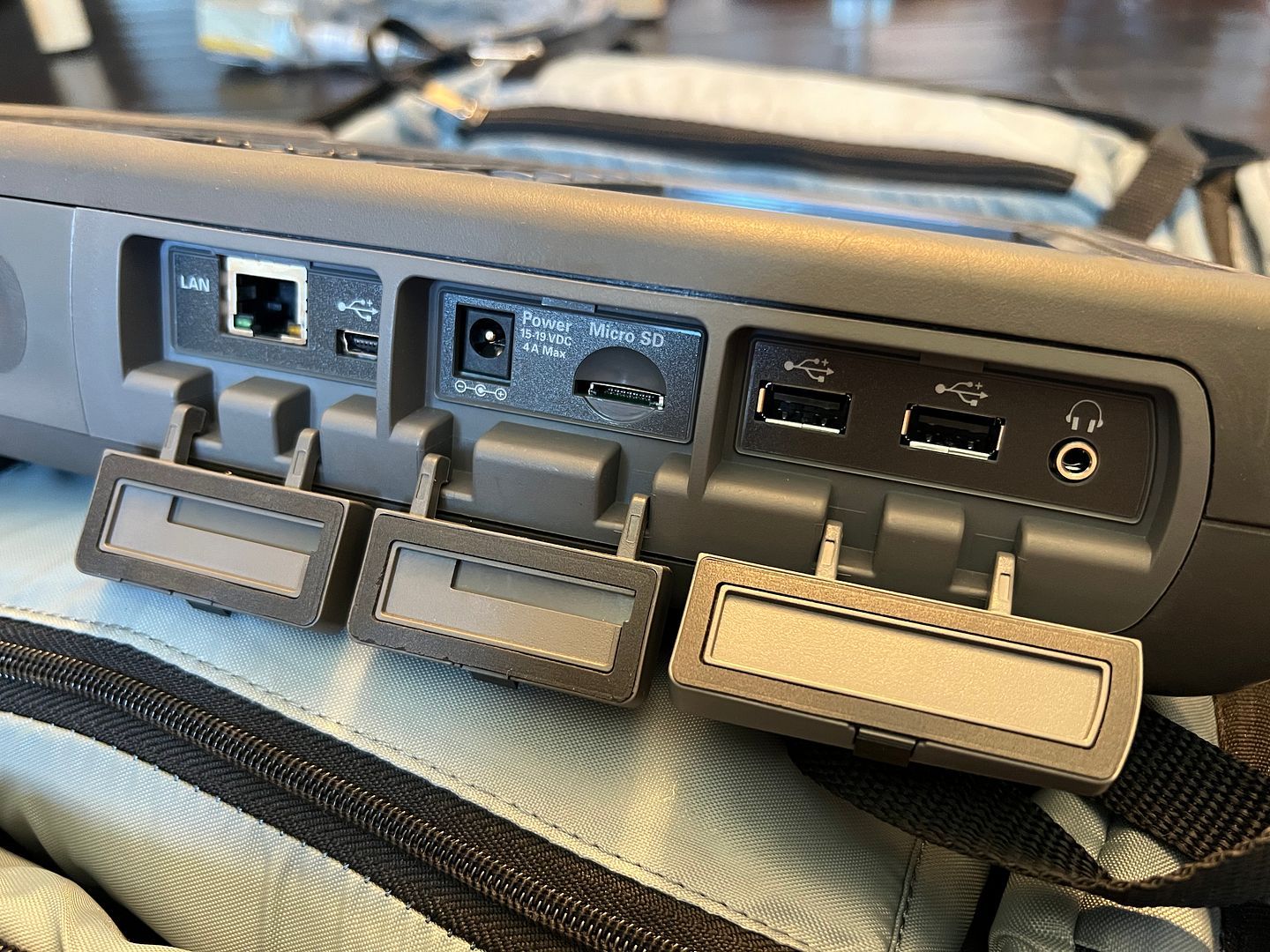

IMG_4454

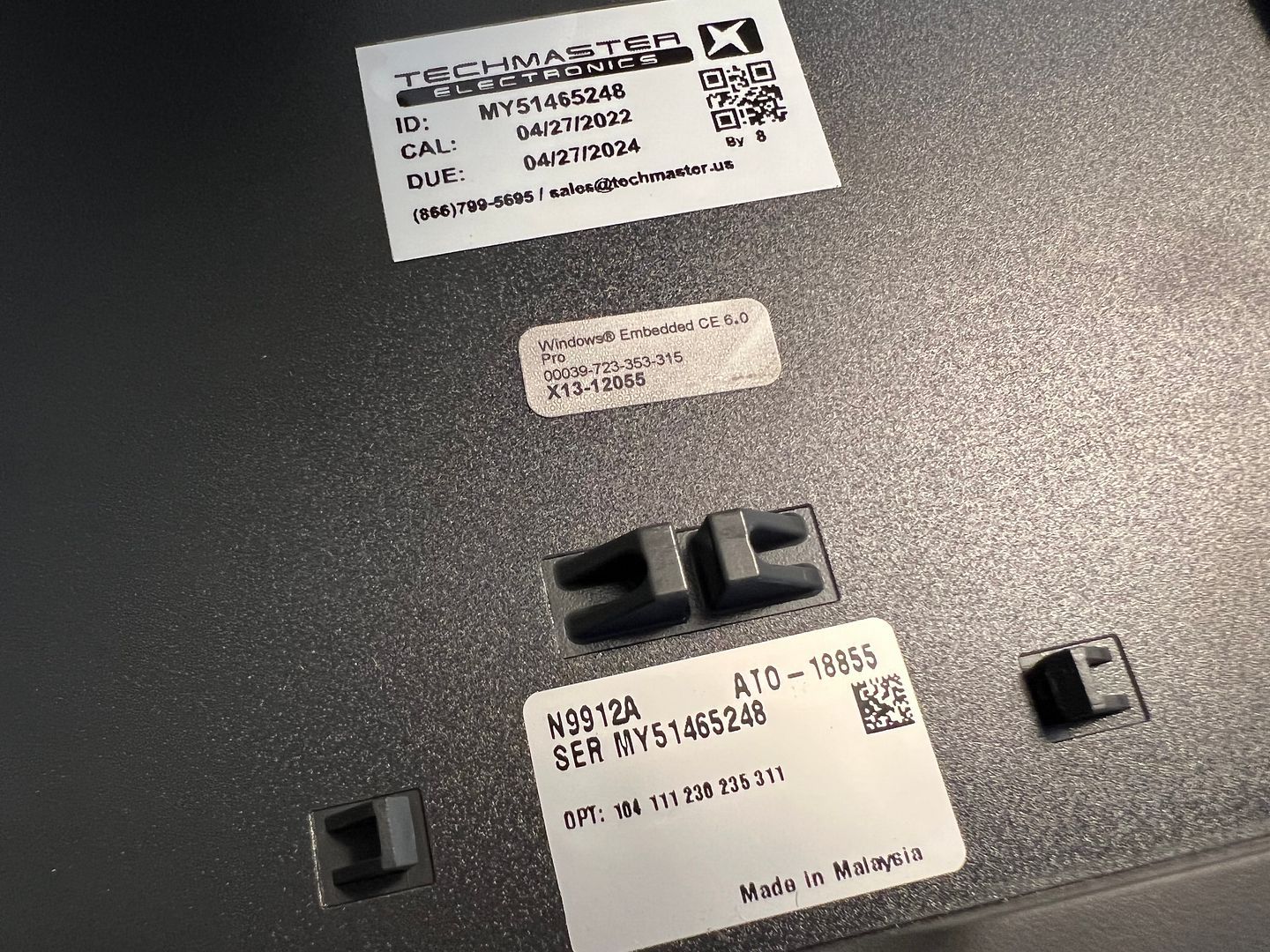

IMG_4452

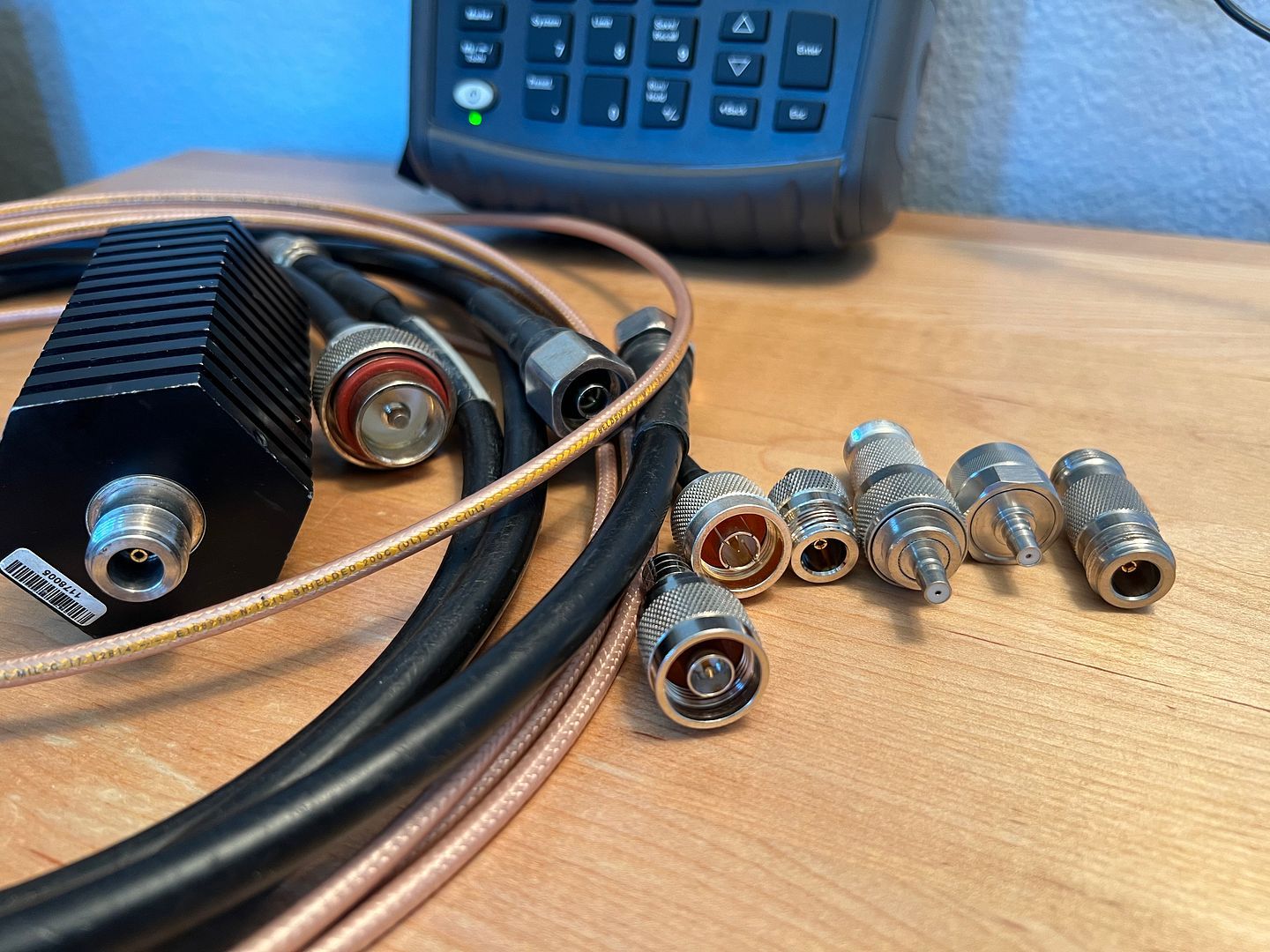

IMG_4439

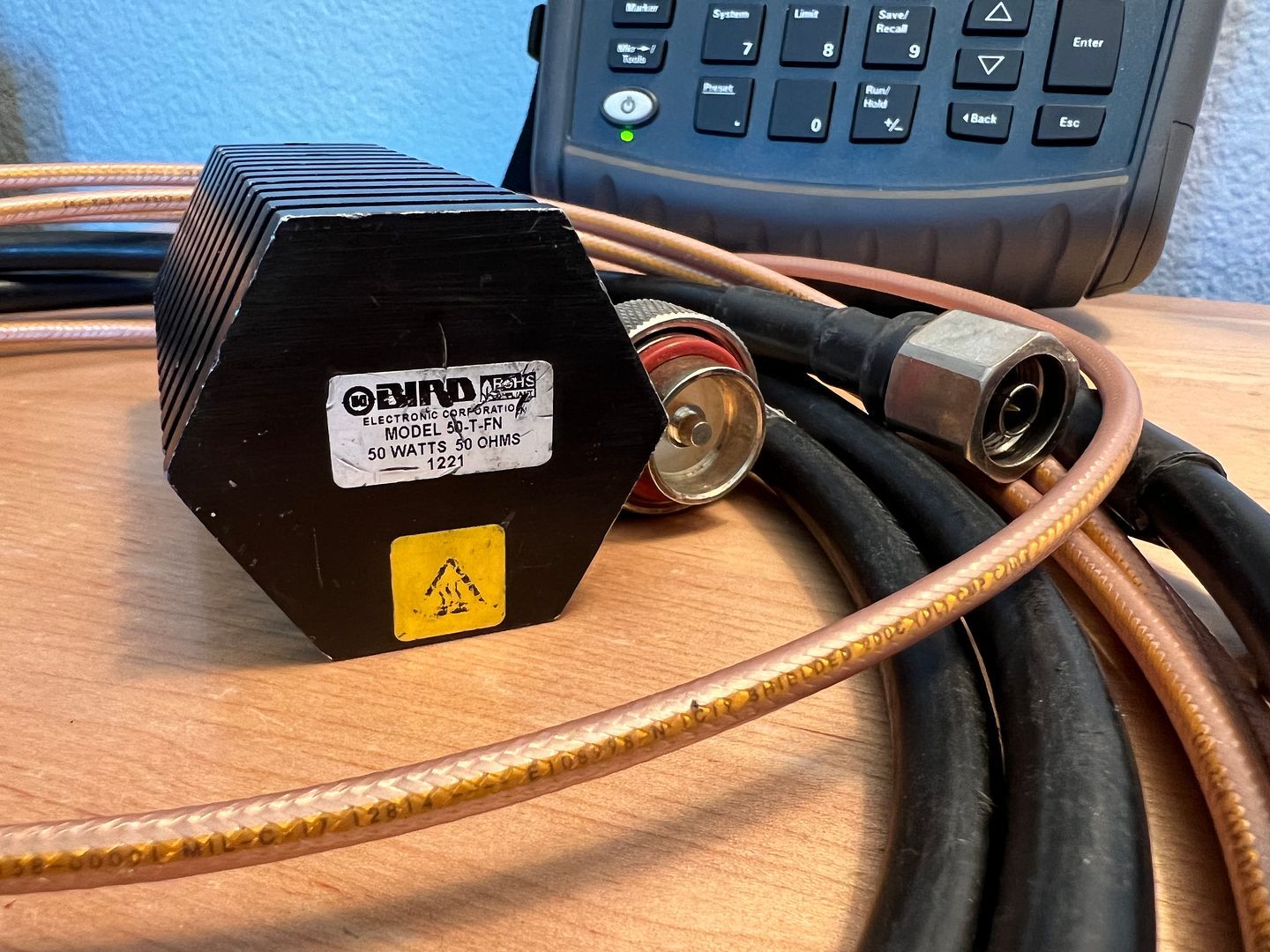

IMG_4441

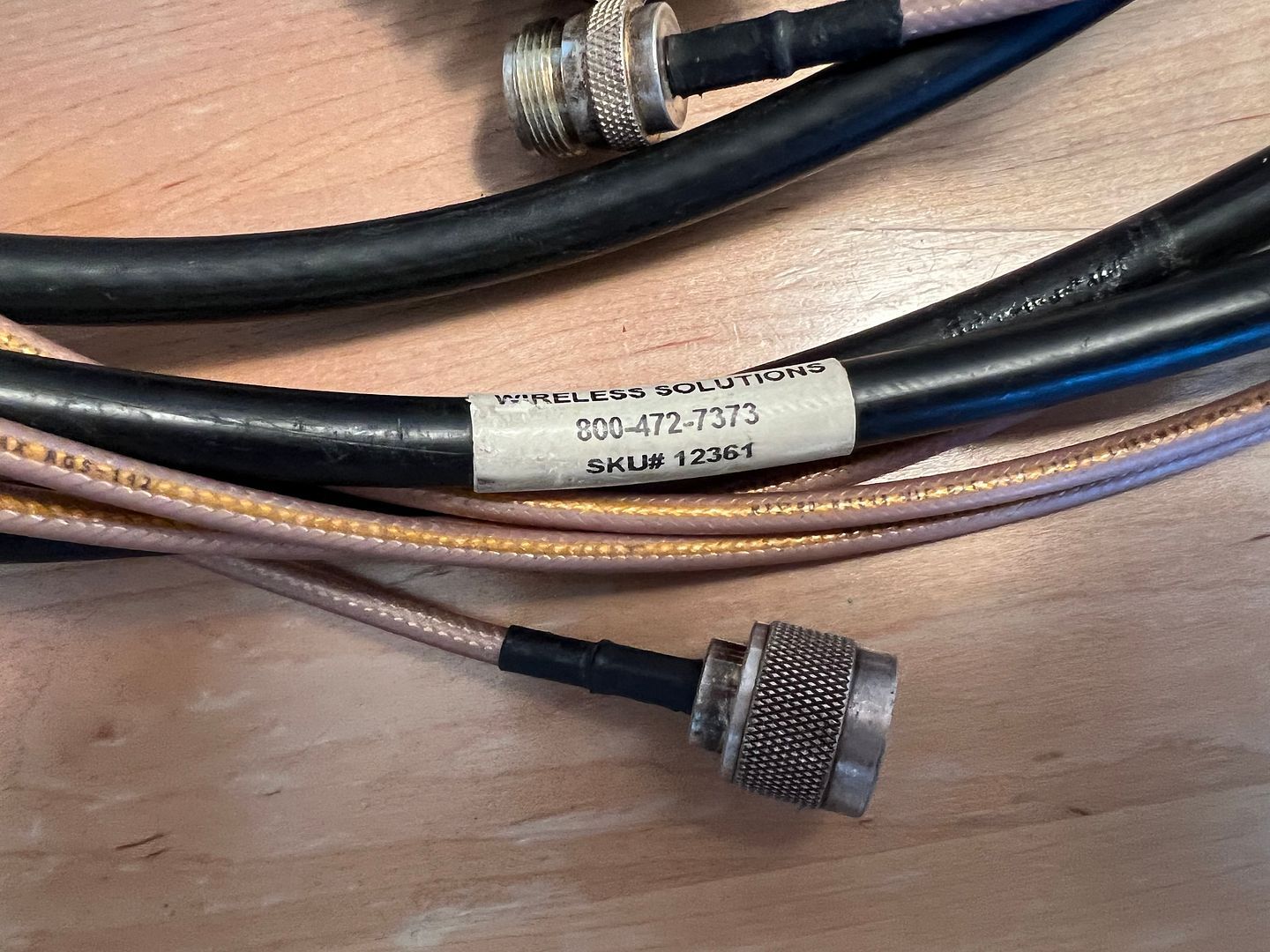

IMG_4438

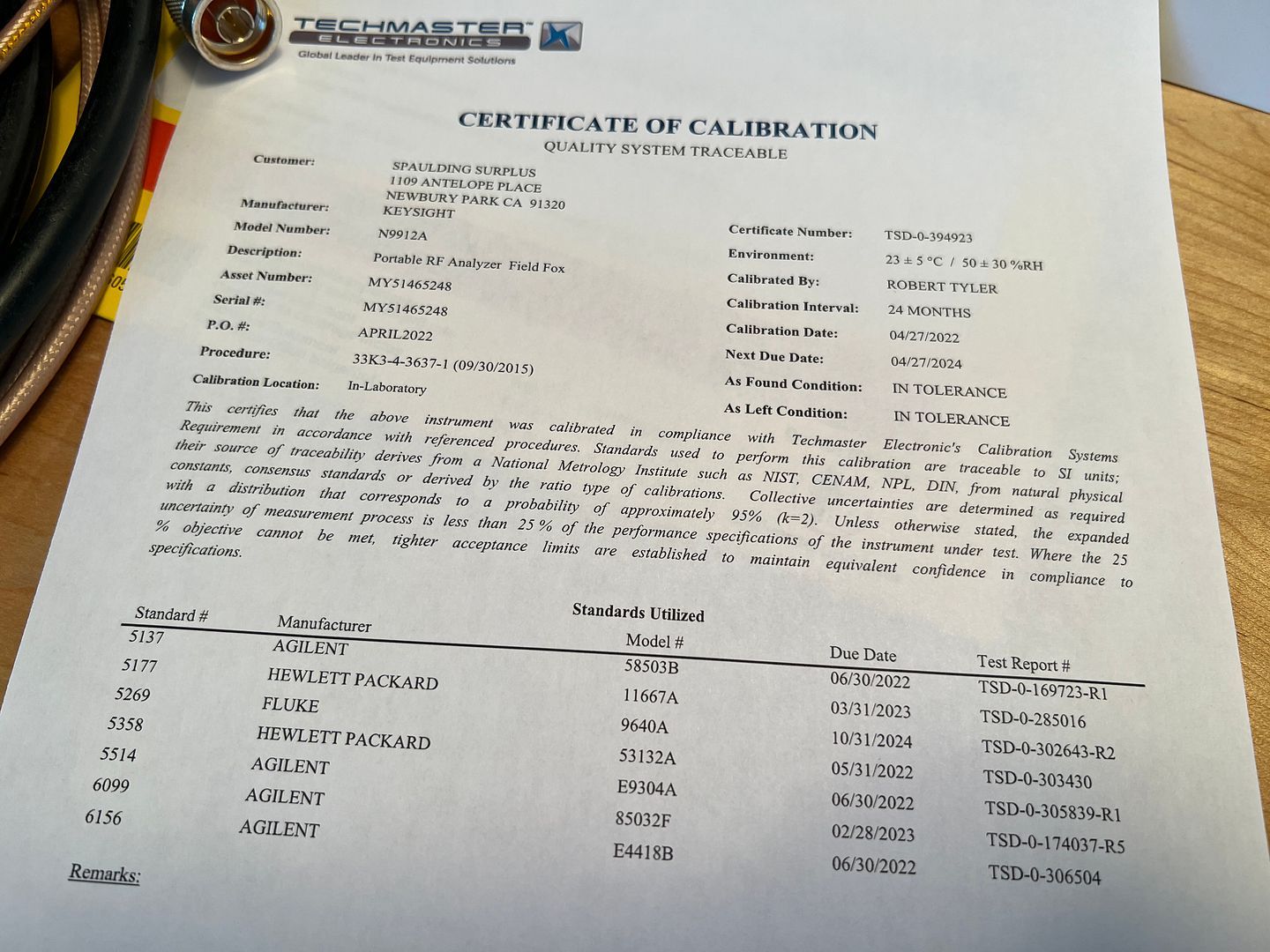

IMG_4453
