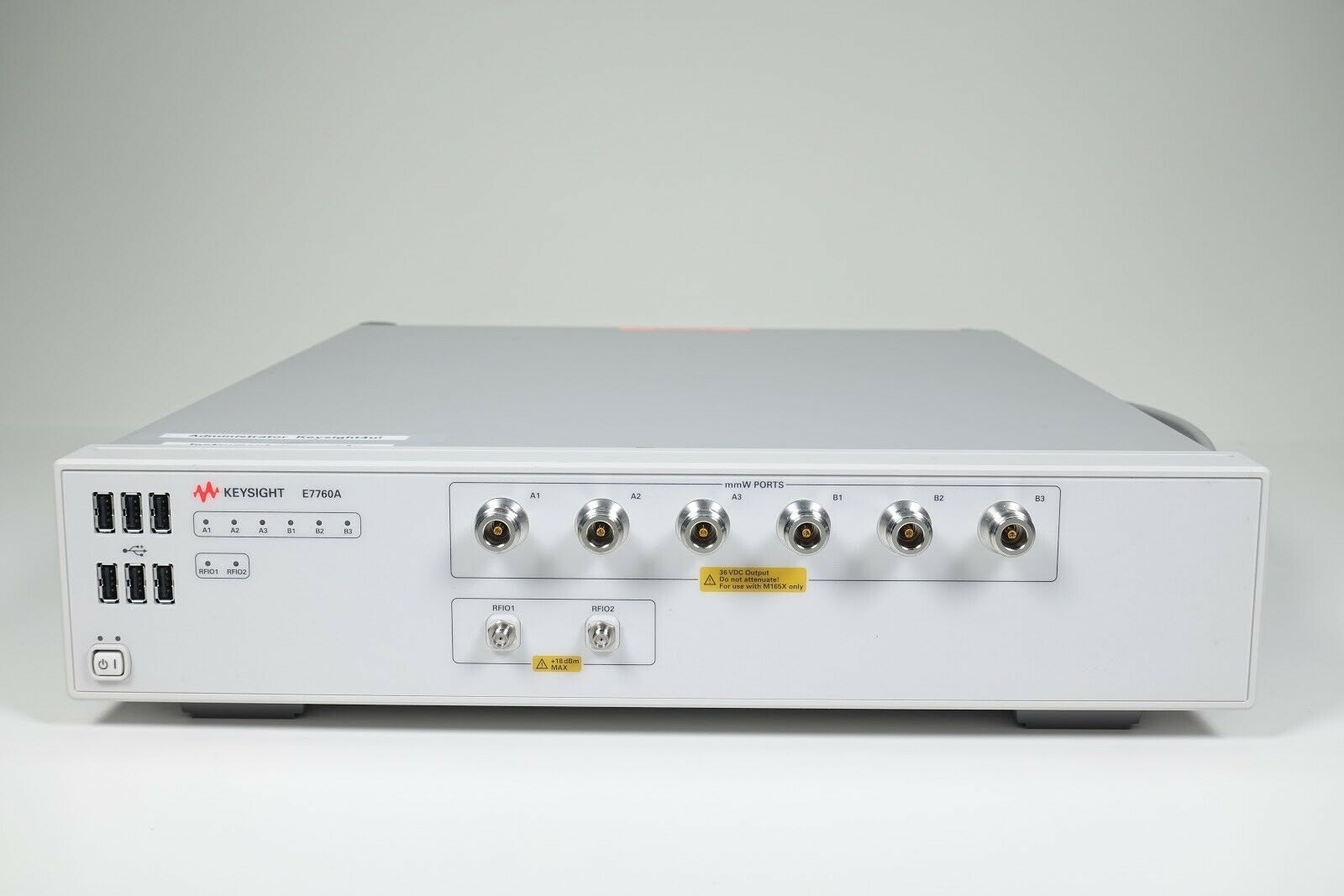

Keysight E7760A Wideband Transceiver w/ Opt. RF5 (mmWave OTA + IF) - MFG CAL'D

The Keysight E7760A is a 2U height wideband transceiver for wideband component, subsystem, and system measurements. It can cover two intermediate frequency input / output (IFIO) ports from 2 to 18 GHz. It can also cover up to six radio frequency input / output (RFIO) ports from 55 to 68 GHz connecting the M1650A millimeter-wave (mmWave) transceiver. Keysight's Y7707A software runs inside the E7760A to provide the flexibility to generate and analyze 802.11ad waveforms.

Functionality

• provides compact 2U height one-box-tester
• provides 2 IFIO ports (Type SMA) covering 2 to 18 GHz
• provides 6 RFIO (Type N); each one can be connected to one M1650A mmWave transceiver for 55–68 GHz
• supports multiple trigger type: free run, external, RF burst, video, and internal

Performance

• analyzer amplitude range: -90 dBm to +10 dBm
• generator settable output power range: -60 dBm to +7 dBm
• linearity of +/-0.5 dB
• IQ data capture depth and arbitrary waveform memory: 1G samples

Measurement Applications and Software

• uses Y7707A application software to generate and analyze 802.11ad signals that run inside E7760A
• supports all 802.11ad transmitter and receiver measurements defined by IEEE 802.11
• provides GUI settings and remote control via SCPI

• supports license as fixed, transportable, or time-based

This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.

Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.

We will accept payment for this item by company check, cashier’s check and wire transfer only.

If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.

Please note that shipping and insurance costs are non-refundable.

Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.

Make sure that you check out our other auctions for more great deals on test and measurement equipment.

Thank you and good luck bidding.
