Keysight N9038A 3 Hz - 26.5 GHz MXE EMI Receiver / Signal Analyzer - LOADED!

$115,000.00
(No reviews yet) Write a Review
SKU:
275877168377
Brand:
Keysight
Model:
N9038A
MPN:
N9038A
Frequency Range:
3 Hz - 26.5 GHz
Keysight N9038A 3 Hz - 26.5 GHz MXE EMI Receiver / Signal Analyzer - LOADED!

Product Description

Keysight N9038A 3 Hz - 26.5 GHz MXE EMI Receiver / Signal Analyzer - Loaded with Options and MFG Calibrated!


Item Description

Keysight N9038A 3 Hz - 26.5 GHz MXE EMI Receiver / Signal Analyzer - Loaded with Options and MFG Calibrated!


You are bidding on a Keysight N9038A 3 Hz - 26.5 GHz MXE EMI Receiver / Signal Analyzer.  It is loaded with expensive options (see list below), and will arrive with a fresh accredited A2LA calibration with complete test data performed by Keysight Technologies.  The list price for the N9038A EMI Receiver with this option configuration is just under $240,000 USD!



The Keysight N9038A MXE EMI Receiver is more than just a CISPR-compliant EMI receiver - it’s an X-Series signal analyzer that can run a variety of measurement applications and evolve as technology changes. The Keysight N9038A MXE EMI Receiver provides capabilities that will help you show designers what’s really happening inside their devices.



Features of the Keysight N9038A MXE EMI Receiver include:



Functionality:

  • Frequency 3 Hz to 8.4 GHz, 26.5 GHz or 44 GHz
  • CISPR bandwidth 200 Hz, 9 kHz, 120 kHz, and 1 MHz; MIL-STD and bandwidths incremented in 10% steps
  • Extensive diagnostic tools, including the EMC measurement application
  • Move seamlessly between EMI receiver and spectrum analyzer modes

Performance:

  • Meets CISPR 16-1-1 2010 EMI receiver requirements
  • ±0.78 dB absolute amplitude accuracy at 1 GHz
  • -163 dBm displayed average noise level (DANL) with preamplifier
  • Phase noise -103 dBc/Hz 10 kHz offset at 1 GHz center frequency

Measurement Applications & Software:

  • EMC measurement application (included standard) offers real-time detectors, signal lists, scan tables, limit lines, and correction factors
  • SCPI command language compatibility (included standard) offers capability to emulate the R&S FSP/FSU/FSE spectrum analyzers
  • Supports phase noise measurement application with additional measurement applications coming soon
  • Enhance your analysis with marker functions, span zoom, zone span, and spectrograms

Automation & Communication Interface:

  • LXI class C compliant, SCPI and IVI-COM
  • USB 2.0, 1000Base-T LAN, GPIB
  • Common X-Series user interface / Open Windows® XP operating system


Installed Options:

- Option PC6: Intel Core i7-3615QE CPU @ 2.30 GHz, 16GB ($6010)
- Option SSD: Intel SSD Drive 240GB ($2326)
- Option W10: Windows 10 Enterprise, 64 Bit OS
- Option 526: Frequency Range, 3 Hz to 26.5 GHz ($120,000)
- Option B25: Analysis bandwidth, 25 MHz ($10,733)
- Option B85: Analysis bandwidth, 85 MHz ($19,974)
- Option CR3: Connector Rear, 2nd IF Output ($1273)
- Option DP2: Digital Processor, 2GB Capture Memory ($6014)
- Option LSN: External LISN control upgrade ($1426)
- Option NFE: Noise Floor Extension, Factory Alignment ($7190)
- Option P26: Preamplifier, 26.5 GHz ($9155)
- Option PFR: Precision Frequency Reference ($2988)
- Option RT1A-1FP: Real-time analysis to max BW, basic detect ($12,186)
- Option N9060EM1D-1FP: IQ & Spectrum Analyzer Applications ($17,806)
- Option N90EDPA-1FP: Enhanced Display Package ($3083)
- Option N90E1EMCA-1FP: Basic Electro-Magnetic Compatibility ($3853)
- Option N90EEMTDSA-1FP: Time domain scans ($14,189)


Product Specs:

  • Frequency :
    3 Hz to 26.5 GHz

  • Amplitude Accuracy :
    ±0.23 dB

  • Amplitude Resolution :
    0.1881 dB

  • Analysis Bandwidth :
    85 MHz

  • Applications :
    General Purpose

  • Attenuator Step :
    2 dB

  • Bandwidth Accuracy :
    ±0.044 to 0.25 dB

  • Connectors :
    N Type, N Type - Female

  • Dimensions :
    7 x 17 x 21 Inches

  • Display Resolution :
    1024 x 768, XGA

  • EMC Standards :
    CISPR16-1-1, MIL STD 461, ISO17025

  • Frequency Stability :
    1 ppm

  • IF Bandwidth :
    200 Hz, 9 KHz, 120 kHz, 1 MHz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz

  • Impedance :
    50 Ohms

  • Interface :
    USB 2.0, Ethernet

  • IP3 :
    15 dBm

  • Measure & Detection Method :
    Quasi-Peak, EMI-Average, Normal, Peak, Sample, Negative Peak, Log Power Average, RMS Average, Voltage Average

  • Operating Temperature :
    0 to 55 Degree C

  • Preamplifier Gain :
    20 to 40 dB

  • Preselector :
    310 kHz to 1.89 GHz

  • Real Time :
    Yes

  • Sampling Rate :
    10 Msa/s

  • Selectivity :
    4.1:1

  • Spurious Response :
    -108 to -60 dBc

  • Storage Temperature :
    -40 to 70 Degree C

  • Video Bandwidth :
    1 Hz to 3 MHz, 4, 5, 6, 8 MHz

  • Weight :
    24 kg

  • Attenuation :
    70 dB

  • Dynamic Range :
    76 dBc

  • Real-time Bandwidth :
    85 MHz

  • Resolution :
    100 Hz to 3 MHz

  • Supply Voltage :
    100 to 240 VAC



This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.

Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.

We will accept payment for this item by company check, cashier’s check and wire transfer only.

If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.

Please note that shipping and insurance costs are non-refundable.

Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.

Make sure that you check out our other auctions for more great deals on test and measurement equipment.



Thank you and good luck bidding





M9038A

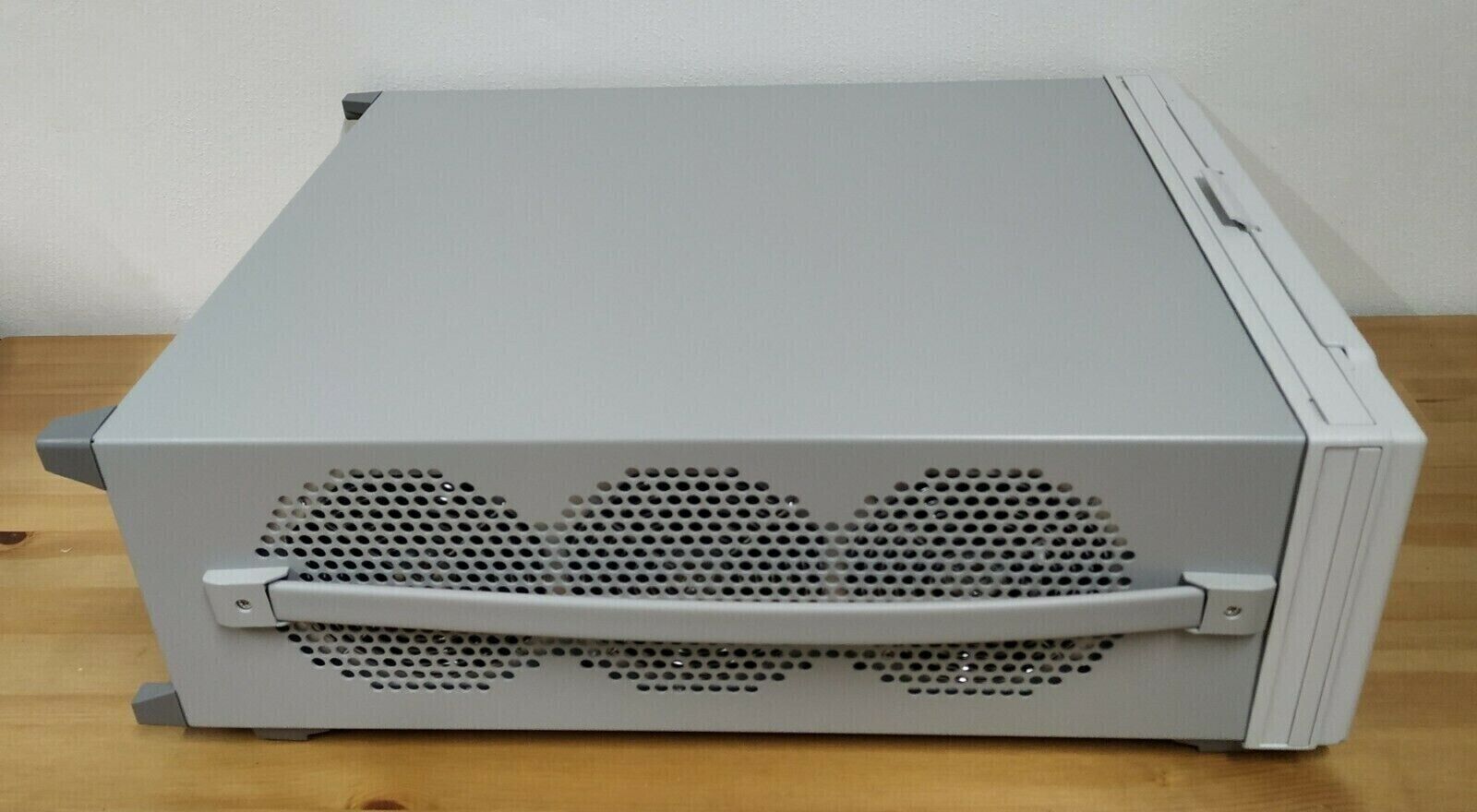

M9038A 1



Need your unit calibrated by an ISO 17025 accredited lab prior to shipment? Not a problem. We work with numerous calibration and repair companies that can provide your required service at competitive prices.
