Narda SRM-3000 Selective Radiation Meter w 3501/03 3-Axis 27 MHz - 3 GHz Antenna

Product Description

Narda SRM-3000 Selective Radiation Meter with 3501/03 3-Axis (27MHz - 3 GHz) Antenna and Accessories!

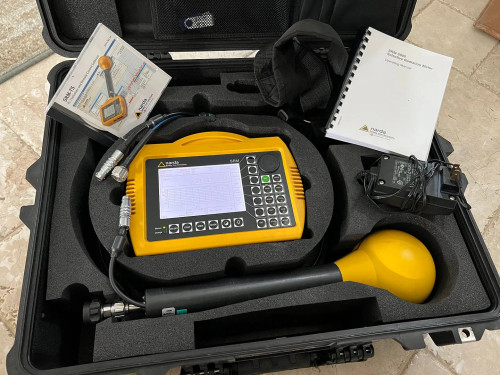

You are bidding on an Narda SRM-3000 Selective Radiation Meter with 3501/03 3-Axis (27MHz - 3 GHz) Antenna and accessories included.  Calibrated by Keysight in Nov 2020.  It is in perfect working condition and will arrive in a custom Pelican transit case.

The Selective Radiation Meter (SRM) is a hand-held selective measuring device for safety analysis of RF and microwave electromagnetic fields. The SRM can be used by broadcasters, radio network operators, measurement service providers and public authorities to selectively measure the field exposure produced by individual telecom services and assess the results in accordance with the applicable standards. Most measurements required in the mobile radio sector can be performed directly using the hand-held device. The SRM immediately evaluates the results on site.

The SRM consists of a basic unit and a measurement antenna. The basic unit contains a spectrum analyzer for the 100 kHz to 3 GHz frequency range. It can be operated using anten nas from Narda or in combination with measurement antennas from other manufacturers. The triaxial antenna allows isotropic (non-directional) measurements from 50 MHz to 3 GHz, cover ing FM radio up to the W-CDMA and UMTS services.

Specifications:

Basic Unit SRM-3000

Frequency Range 100 kHz to 3 GHz

Modes:

Spectrum Analysis / Time Analysis - Time Controlled Storing /

Safety Evaluation / UMTS P-CPICH Demodulation (option)

Phase Noise (SSB)

30 kHz carrier spacing < -85 dBc (1 Hz)

100 kHz carrier spacing < -105 dBc (1 Hz)

1 MHz carrier spacing < -120 dBc (1 Hz)

Reference Frequency

Initial Deviation < 1.5 ppm

Aging < 0.5 ppm/year

Thermal Drift < 2.0 ppm (within specified operating temperature range)

Amplitude:

Measurement Range Setting (MR) -27 dBm to +23 dBm (in steps of 1 dB)

Display Range From noise floor up to +26 dBm

Maximum RF Power Level +30 dBm

Maximum DC Voltage 50 V

Intrinsic Noise - 120 dBm for 1 kHz RBW, f>20 MHz and MR = -27 dBm

RF Attenuation 0 to 50 dB in steps of 1 dB (coupled with measurement range)

2nd Order Intermodulation Products ≤ - 57 dBc for two signals of level 9 dB below MR and

a spectral line spacing of more than 100 kHz

3rd Order Intermodulation Products ≤ - 68 dBc for two signals of level 9 dB below MR and

a spectral line spacing of more than 500 kHz

Spectrum Analysis Mode:

Measurement Principle Spectrum analysis

Resolution Bandwidths (-3 dB) 1 kHz to 5 MHz (in steps of 1, 2, 3, 5, 10)

List of available RBWs depends on selected sweep SPAN

Measurement Range Setting (MR Range) Set individually from a list or using the “MR Search” function for determining the optimum

measurement range at a given time

Sweep Time 50 ms to 1 s (depending on span), measured in uniaxial direction (axis)

Filter Type Gaussian

Shape Factor (-3 dB / -60 dB) - < 3.8 (for RBW ≤ 100 kHz)

This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
