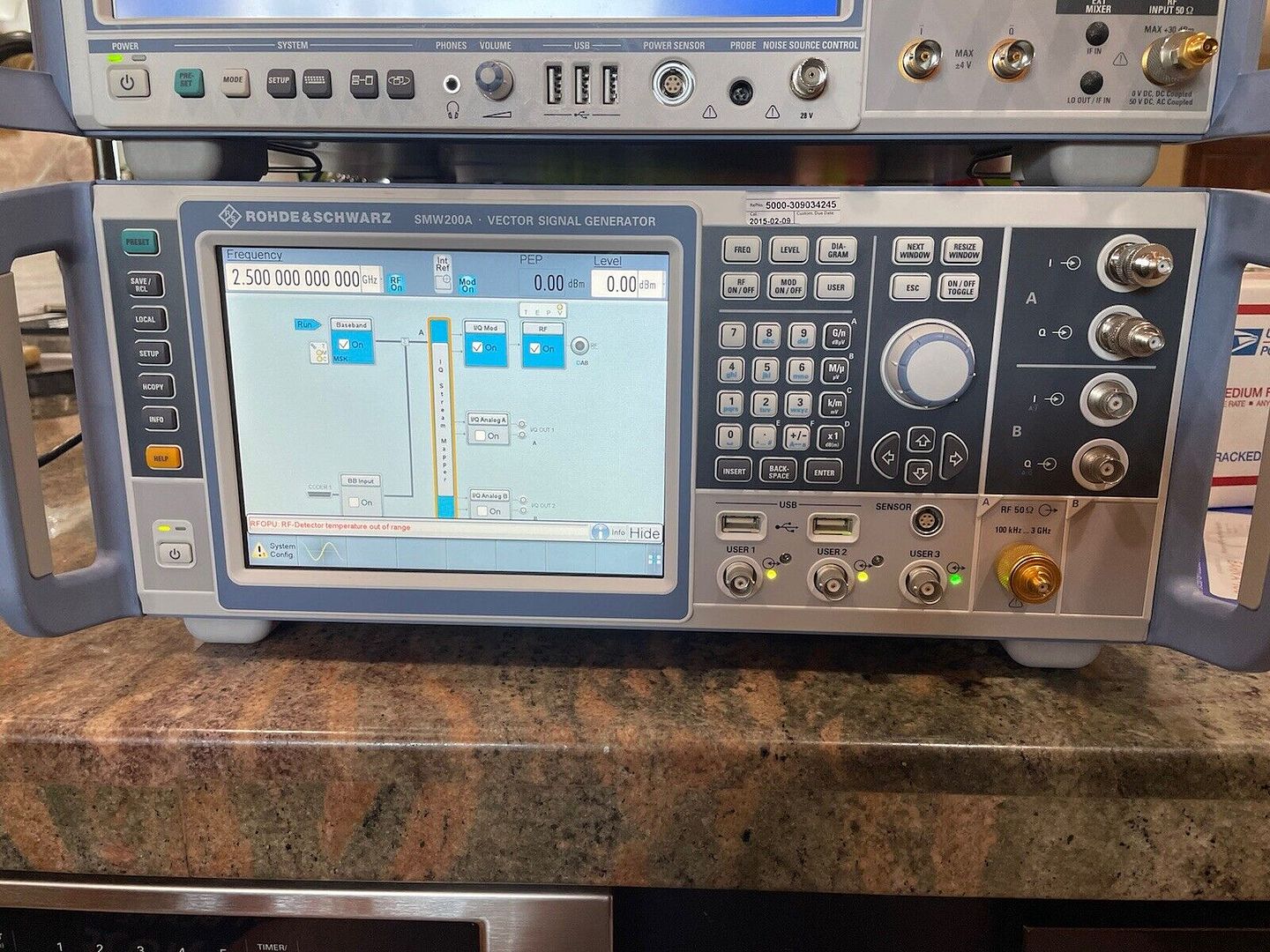

Rohde & Schwarz SMW200A 100 kHz - 3 GHz Vector Signal Generator - Loaded with Options and Fresh R&S Calibration Included!

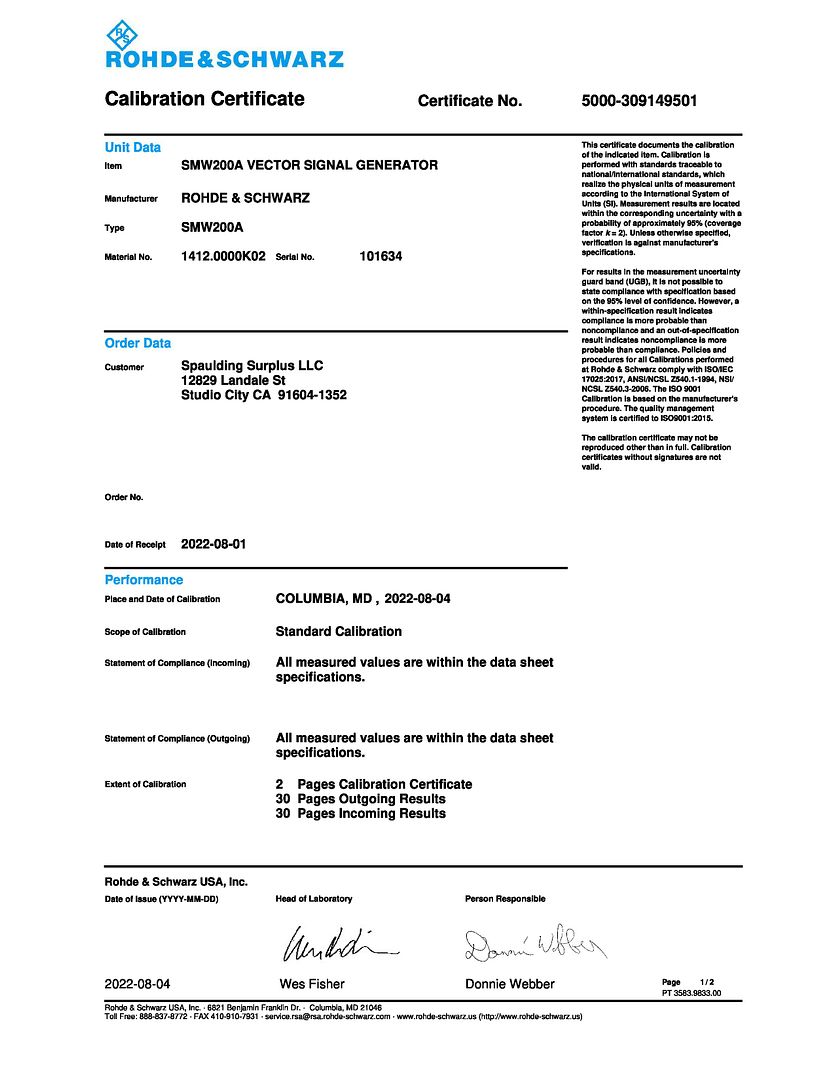

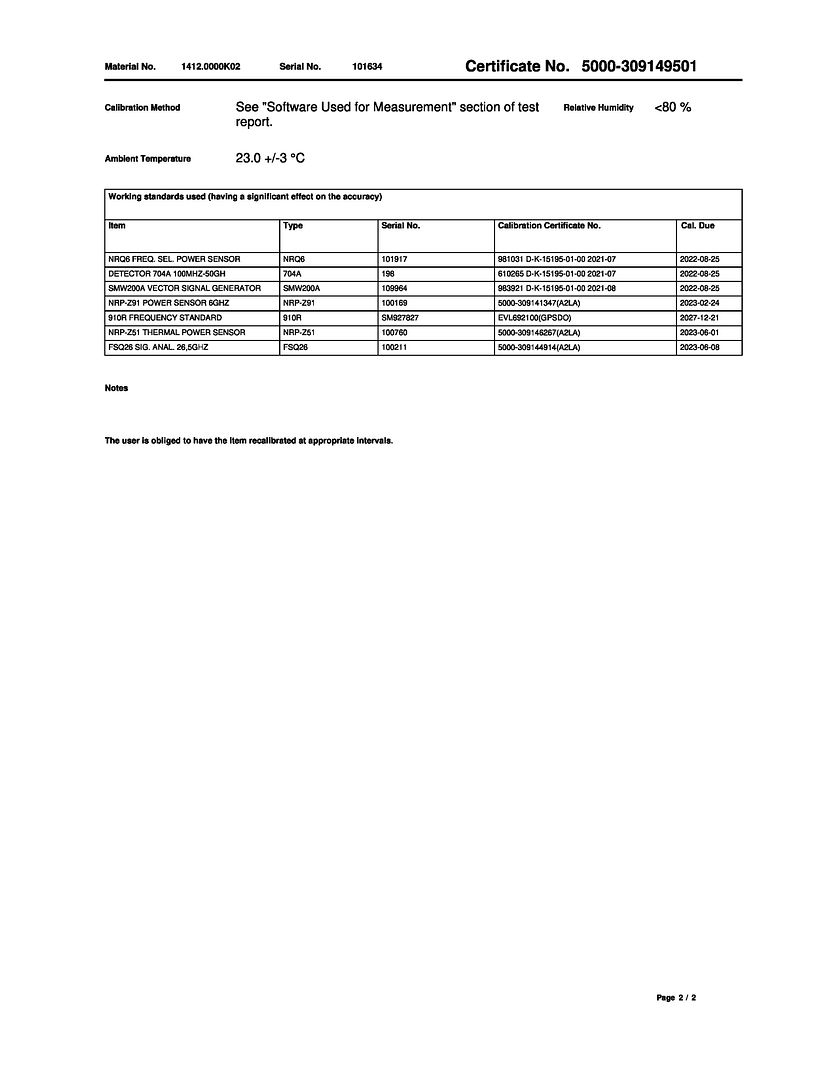

You are bidding on a Rohde & Schwarz SMW200A 100 kHz - 3 GHz Vector Signal Generator with Options B10, B20, B13T and K16 Installed (see details below). It will arrive with a fresh accredited A2LA calibration with complete test data performed by Rohde & Schwarz.

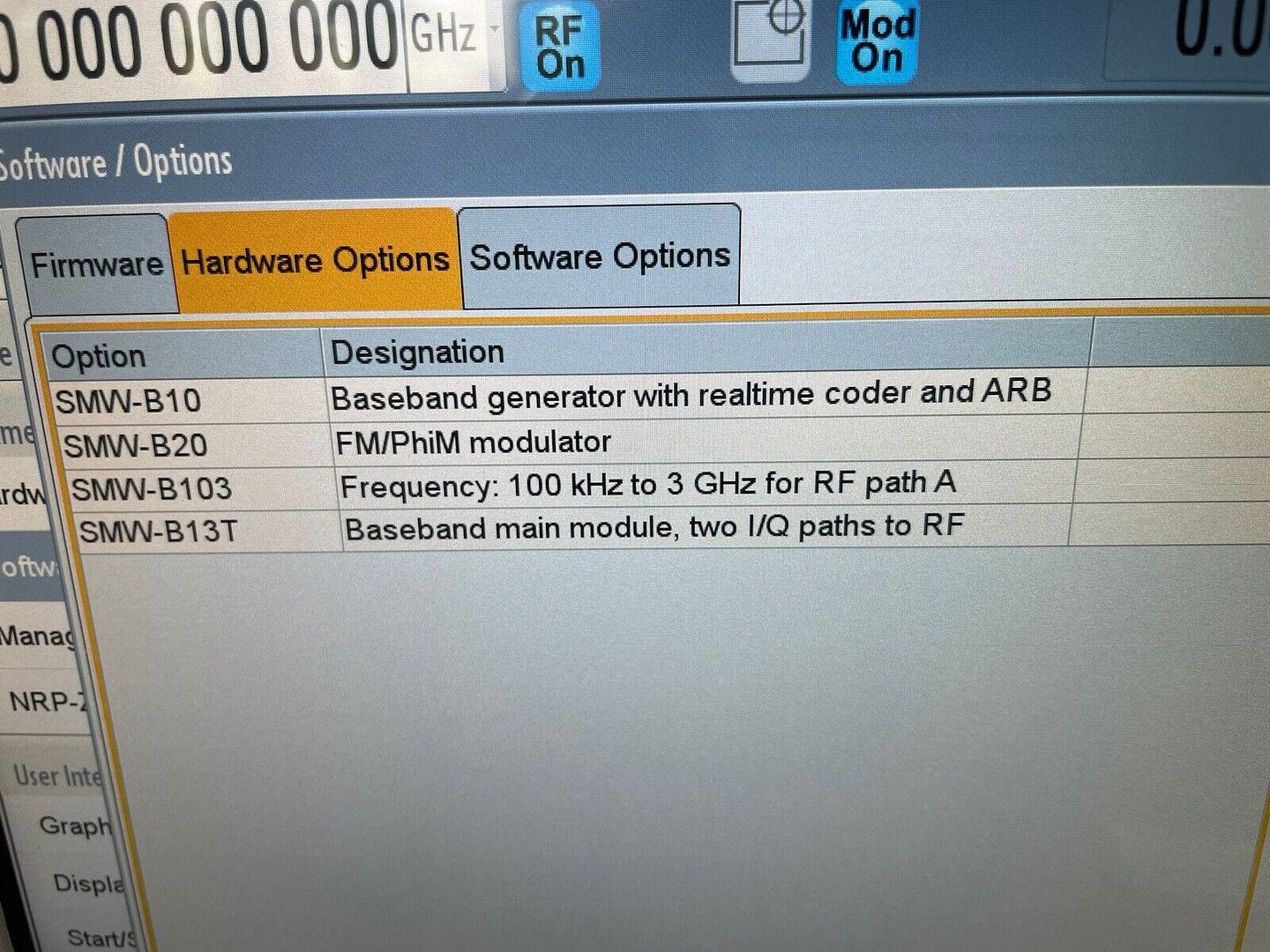

Installed Options:
- B10: Baseband Generator with Real-Time Coder and ARB
- B20: FM/PhiM Modulator
- B13T: Baseband Main Module, 2 I/Q Paths to RF
- B103: 100 kHz to 3 GHz Frequency Range

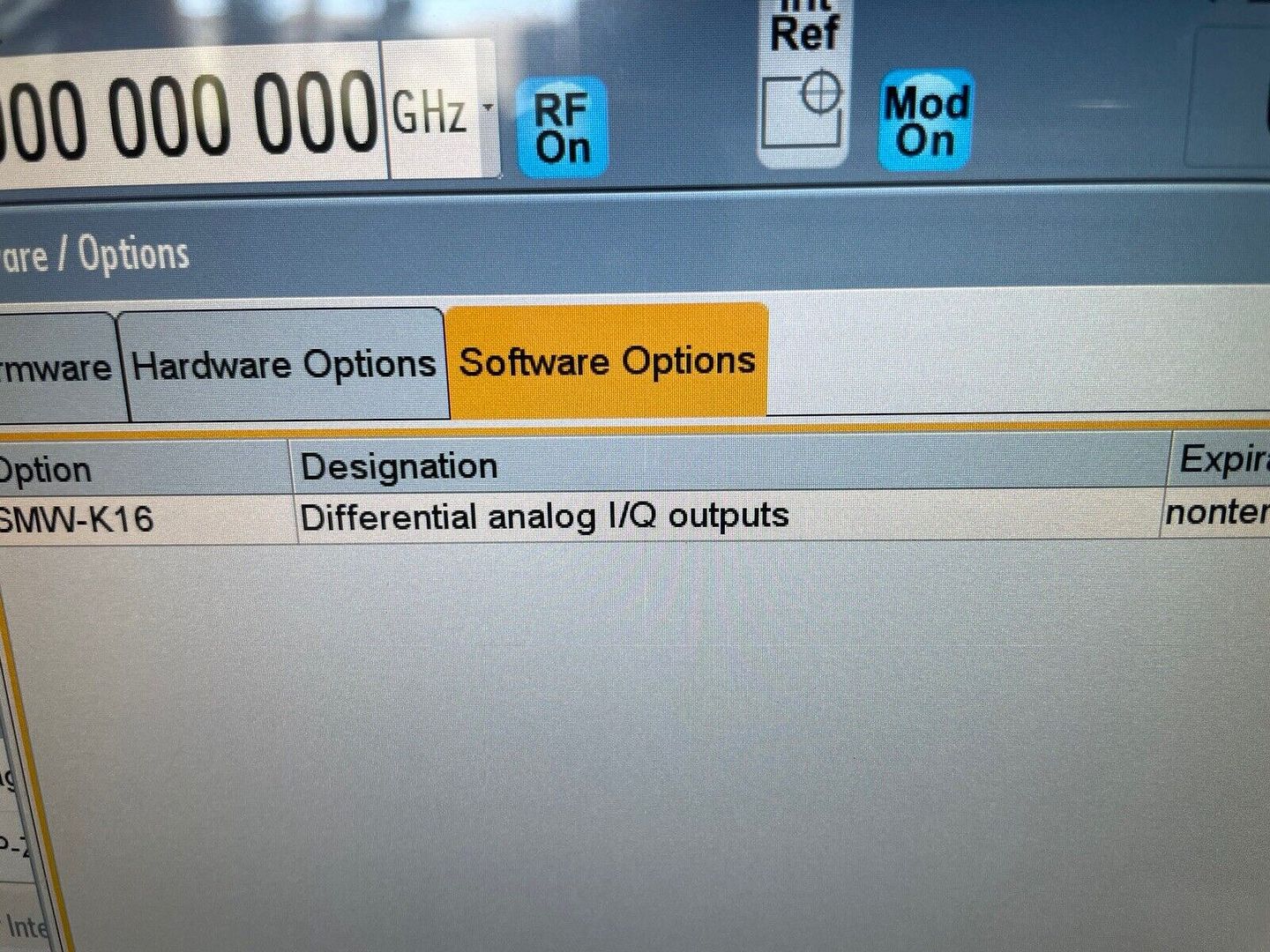

- K16: Differential Analog I/Q Outputs
The Rohde & Schwarz SMW200A is the vector signal generator for the most demanding applications. Because of its flexibility, performance and intuitive operation, it is a perfect tool for generating complex, digitally modulated signals of high quality.
The Rohde & Schwarz SMW200A is the ideal generator for digitally modulated signals required for the development of new wideband communications systems, the verification of 4G and 5G base stations or in the aerospace and defense sector.
The I/Q modulation bandwidth of up to 160 MHz with internal baseband satisfies fourth-generation standards (e.g. LTE-Advanced and IEEE 802.11ac), and the Rohde & Schwarz SMW200A is designed to meet future requirements. With its modular scalable architecture, it allows users to optimize the generator to their applications and to upgrade it as required.
A second RF path can be added, as well as a maximum of two baseband and four fading simulator modules – without compromising on signal quality. As a result, the Rohde & Schwarz SMW200A can create signal scenarios that previously required multiple instruments or could not be implemented at all. From MIMO up to 8x2 and LTE-Advanced carrier aggregation including fading to multistandard radio – never before has an instrument offered such high-class signal generation capability.
If more than two RF paths are required, additional R&S®SGMA signal generator modules can be connected. The intuitive, touchscreen-based operating concept provides the user with an overview of measurements, no matter how complex, and quickly delivers the desired results.
Features and Specifications
For all your needs
- Frequency range from 100 kHz to 3 GHz, 6 GHz, 12.75 GHz, 20 GHz, 31.8 GHz or 40 GHz
- Optional second RF path with 100 kHz up to 3 GHz, 6 GHz, 12.75 GHz or 20 GHz
- Versatile configuration: from single-path vector signal generator to multichannel MIMO receiver tester
- Ideal for MIMO, MSR or LTE-Advanced applications thanks to up to eight signal sources and up to 16 fading channels
- Modular architecture for optimal adaptation to the application at hand
Simplify your setup
- Easy generation of complex signals
- Max. eight baseband generators on two internal baseband modules with realtime coder and ARB
- Internal digital adding of baseband signals, even with frequency and level offset
- Support of all important digital standards such as LTE (up to Release 11), 3GPP FDD/HSPA/HSPA+, GSM/EDGE/ EDGE Evolution, TD-SCDMA, CDMA2000®/1xEV-DO, WLAN IEEE 802.11a/b/g/n/j/p/ac
- No separate PC software required for digital standards
- LTE and 3GPP test case wizards for easy base station conformance testing in line with 3GPP TS 25.141 or 3GPP TS 36.141
- Envelope tracking and AM/AM, AM/φM predistortion options for full testing and verification of ET modulator chipsets
Bring reality to your lab
- Optional integrated fading section for channel emulation with up to 160 MHz bandwidth
- All important fading scenarios available as presets
- Installation of up to four fading modules, providing as many as 16 ”logical“ faders
- Implementation of all key MIMO fading scenarios such as 2x2, 3x3, 4x4, 8x2 and 2x8 using a single instrument
- Support of complex applications such as dual-carrier HSPA, LTE carrier aggregation with MIMO and multi-user LTE
- Connection of R&S®SGS100A signal generator modules to provide up to four RF paths
- Phase coherence option, e.g. for beamforming applications
Make your device even better
- Excellent signal quality for high accuracy in spectral and modulation measurements
- I/Q modulator with up to 2 GHz RF modulation bandwidth
- 160 MHz I/Q modulation bandwidth (in RF) with internal baseband
- Exceptional modulation quality, e.g. –49 dB EVM (meas.) with 160 MHz wide WLAN IEEE 802.11ac signals
- High-end pulse modulation with on/off ratio > 80 dB and rise/fall time < 10 ns
- Excellent spectral purity (SSB phase noise –139 dBc (typ.) at 1 GHz, 20 kHz offset)
- Phase coherence option, e.g. for beamforming applications
Speed up your development
- Intuitive operating concept and clever help functions for quick success
- Block diagram as key operating element to visualize signal flow
- Adaptive GUI for overview of both simple and complex scenarios
- Graphical signal monitoring at practically every point in the signal flow
- Context-sensitive online help system with complete user documentation
- SCPI macro recorder and code generator for generating executable remote control code from manual operating steps (for MATLAB®, CVI, etc.)
Grows with your needs
- Customizing of instrument to accommodate virtually every application
- Advanced plug-in system for retrofitting baseband modules without instrument recalibration
- Software upgrades possible at any time, simple and quick activation via key codes
This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
