Tektronix AWG7102 20GS/s Dual Channel Arbitrary Waveform Generator with Options 01 and 06 - CALIBRATED!
You are bidding on a Tektronix AWG7102 10GS/s (20GS/s) Dual Channel Arbitrary Waveform Generator with Options 01 (Waveform Length Expansion from 32 M to 64 M) and 06 (High Bandwidth Output with 20 GS/s Interleaved Sample Rate) installed.

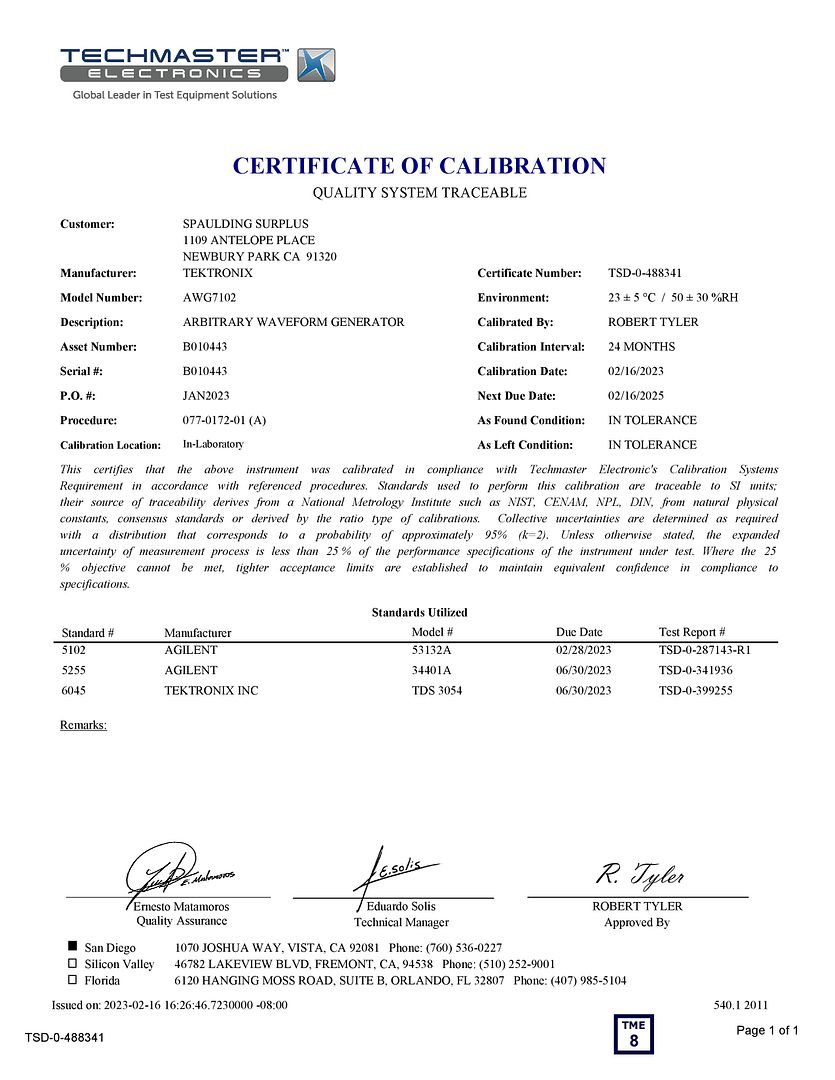

The unit was just calibrated by an ISO17025 calibration lab and will come with a fresh certificate and full test data! All standard accessories (detailed below) will be included. With up to 20 GS/s, you can create high-speed test signals at up to 10 gigabits per second. The AWG7000 Series' exceptional versatility and easy-to-use interface lets you streamline your design process and find answers fast. High performance for testing and characterizing today's electronic and RF devices, with up to 20 GS/s sample rate, independent selection of waveforms and frequencies with 2 output channels. Generation of signals spanning a wide frequency spectrum and that change rapidly over time, with up to 5.8 GHz output bandwidth One instrument that generates the signals you need via mixed analog and digital signal outputs. Flexibility and productivity with an integrated PC, large color display, touch screen, removable hard drive, CD/DVD drive and USB port. THE LIST PRICE FOR THE TEK AWG7102 WITH OPTIONS 01 AND 06 IS $146,000 USD!
Features:
10 GS/s (20 GS/s Interleaved) Sample Rate (Opt. 06 - Installed)
Option 01 (Waveform Length Expansion from 32 M to 64 M)
2 Arbitrary Waveform Outputs
Accurate Timing with only 20 psp-p Total Jitter (at 10-12 BER, Typical)
45 ps Tr/Tf (20% to 80%)
100 ps Range (1 ps Resolution) Inter Channel Skew Control
2 or 4 Variable Level Marker Outputs
Up to 300 ps Range (1 ps Resolution) Delay Control
Vertical Resolution up to 10-Bit
Up to 64 M (64,800,000) Point Record Length Provides Longer Data Streams (Opt. 01)
Down to 100 fs Resolution Edge Timing Shift Control
Real-time Sequencing Creates Infinite Waveform Loops, Jumps, and Conditional Branches
Intuitive User Interface
Integrated PC Supports Network Integration and Provides a Built-in DVD, Removable Hard Drive, LAN, and USB Ports

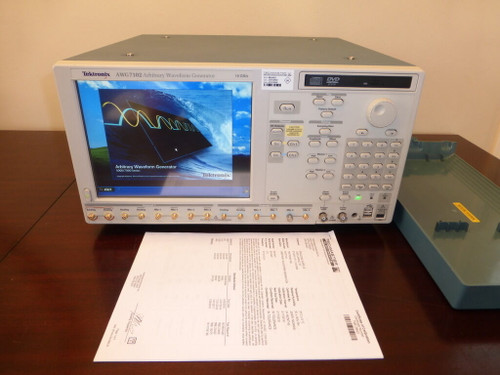

This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes w/ a 14 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.
We will accept payment for this item by company check, cashier’s check and wire transfer only.
If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.
Please note that shipping and insurance costs are non-refundable.
Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.
Make sure that you check out our other auctions for more great deals on test and measurement equipment.
Thank you and good luck bidding.
