Tektronix DSA72004 20GHz 50GS/s 4Ch Oscilloscope Serial Analyzer, LOADED & CAL'D

$64,500.00
(No reviews yet) Write a Review
SKU:
354068416217
Model:
DSA72004
Bandwidth:
20 GHz
Maximum Real-Time Sampling Rate:
50 GSa/s
MPN:
DSA72004
Brand:
Tektronix
Tektronix DSA72004 20GHz 50GS/s 4Ch Oscilloscope Serial Analyzer, LOADED & CAL'D

Product Description

Tektronix DSA72004 20 GHz, 50 GS/s, 4 Channel Oscilloscope, LOADED with FRESH CALIBRATION!

Tektronix DSA72004 20 GHz, 50 GS/s, 4 Channel Oscilloscope, LOADED with Options - FRESH CALIBRATION!

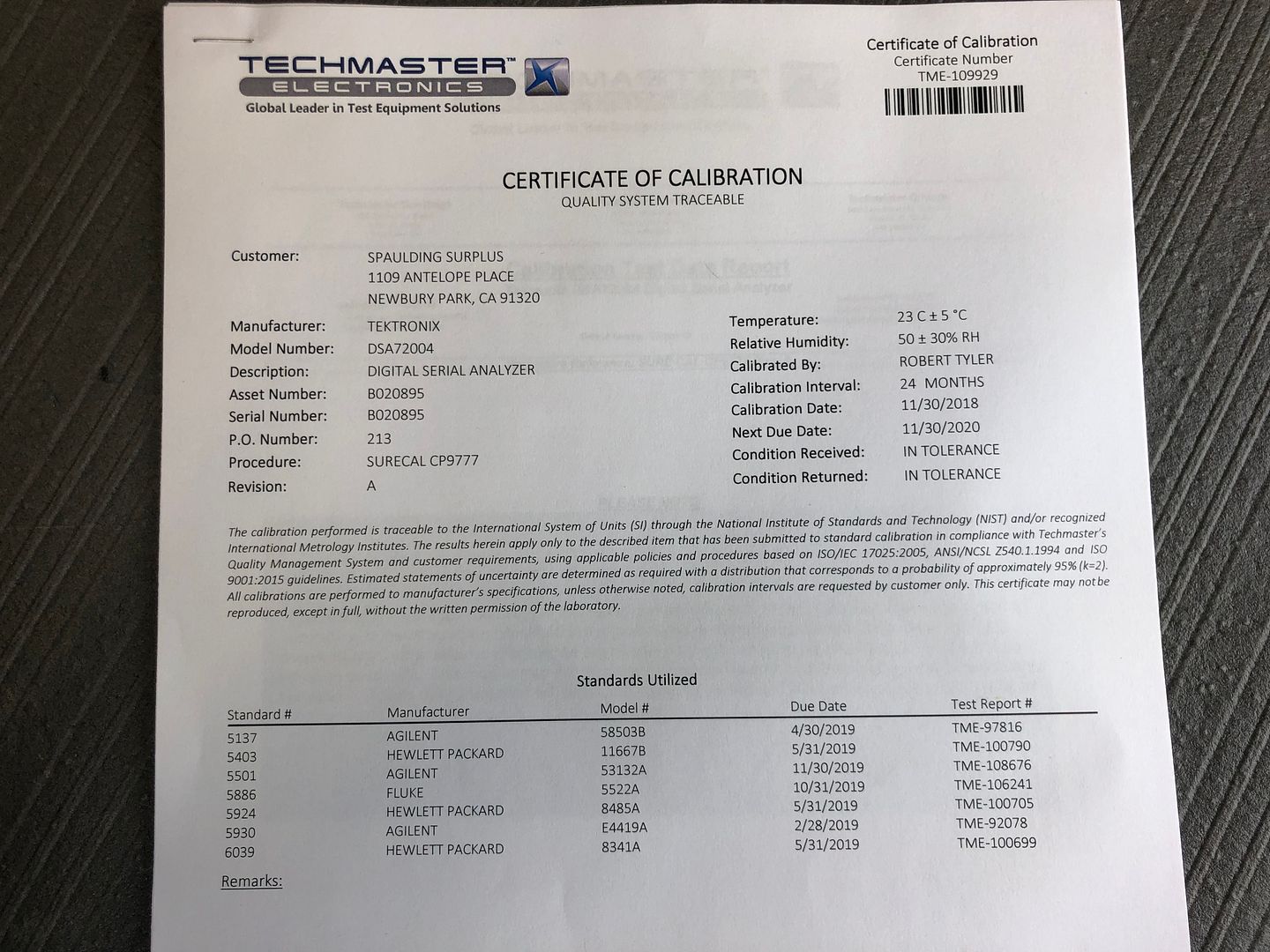

You are bidding on a Tektronix DSA72004 20 GHz, 50 GS/s, 4 Channel Oscilloscope.  It is absolutely loaded with options, and will arrive with a fresh calibration performed by an ISO 17025 accredited lab.  The DSA72004 with this option configuration has a list price of $230,000 USD!



The Tektronix DSA72004 Oscilloscope delivers exceptional signal acquisition performance and analysis capability. Discover your real signals and capture more signal details with the industry's highest waveform capture capability. Automate setup, acquisition and analysis of high-speed serial data signals with a toolset engineered to deliver faster design and compliance testing. The DSA72004 features exceptional performance in signal acquisition and analysis, operational simplicity and unmatched debugging tools to help accelerate your day to day tasks. A combination of a huge screen and intuitive user interface provides the user with easy access to the maximum amount of info.

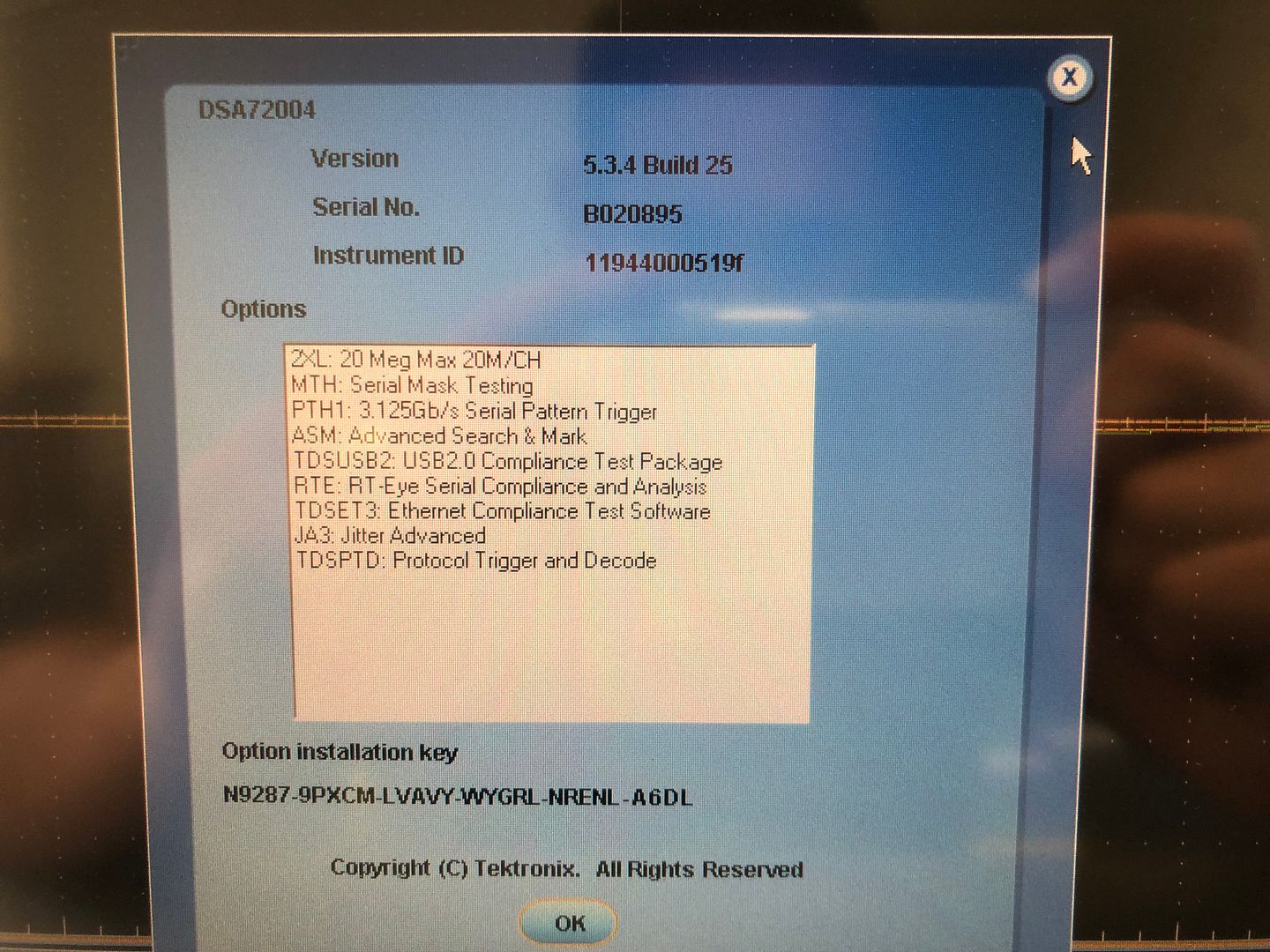

Installed Options:

  • 2XL: 20 Meg Mx 20M/Ch
  • ASM: Advances Search & Mark
  • JA3: Jitter Advanced
  • MTH: Serial Mask Testing
  • PTH1: 3.125 Gb/s Serial Pattern Trigger
  • RTE: RT-Eye Serial Compliance Module
  • TDSET3: Ethernet Compliance Test Software
  • TDSPTD: Protocol Trigger and Decode
  • TDSUSB2: USB 2.0 Compliance Test Software only


Features & Benefits:

20 GHz Bandwidth

Up to 50 GS/s Real-time Sample Rate

Up to 200 Megasamples Record Length with MultiView Zoom Feature for Quick Navigation

Fastest Waveform Capture Rate with >300,000 wfms/s Maximum per Channel

Digital Serial Analyzer Model with Dedicated Configuration for High Speed Serial Design and Compliance Testing

Enhanced Bandwidth to the Probe Tip Extended to Support Multiple Bandwidth Steps for Advanced Signal Integrity

Pinpoint Triggering, with over 1400 Combinations to Address Virtually Any Triggering Situation

Unique Serial Pattern Triggering up to 3.125 Gb/s and 8b/10b Standard Protocol Triggering for Isolation of Pattern-dependent Effects

Serial Data Analysis and Compliance for PCI Express, Serial ATA, FB-DIMM, SAS, Fiber Channel, IEEE1394b, RapidIO, XAUI, HDMI, DVI, Ethernet, USB 2.0

Most Popular Jitter and Timing Measurement and Analysis Package

12.1in Largest XGA Touch Screen Display in the Industry

MyScope Custom Windows Enhance Productivity

Right-Mouse-Click Menus for Exceptional Efficiency
OpenChoice Software with Microsoft Windows XP OS Enables Built-in Networking and Extended Analysis




This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes w/ a 14 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.

Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.

We will accept payment for this item by company check, cashier’s check and wire transfer only.

If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.

Please note that shipping and insurance costs are non-refundable.

Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.

Make sure that you check out our other auctions for more great deals on test and measurement equipment.



Thank you and good luck bidding.

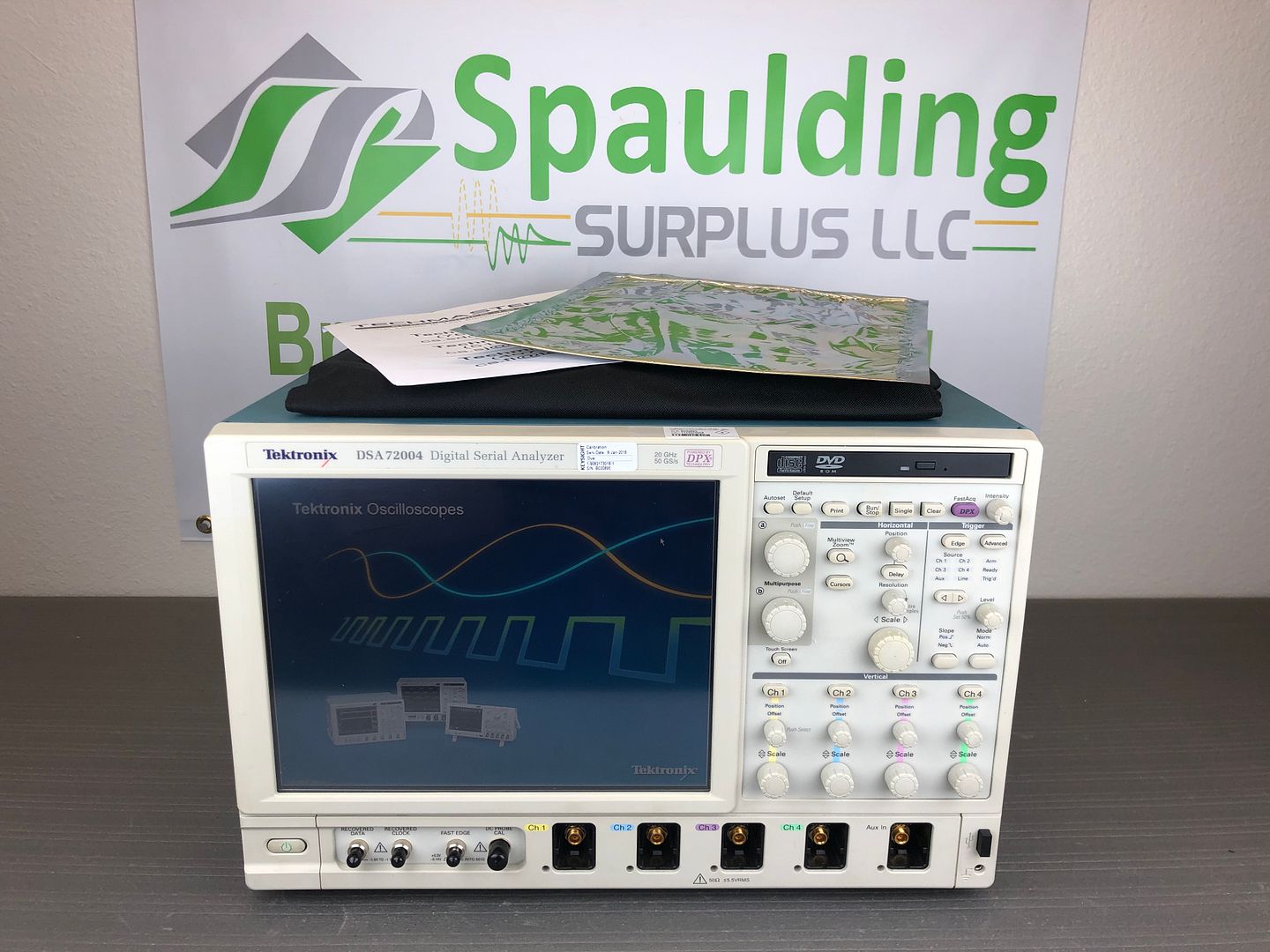

  photo IMG_7252_zpseuo5xu5l.jpg

 photo IMG_7264_zpstogredfv.jpg

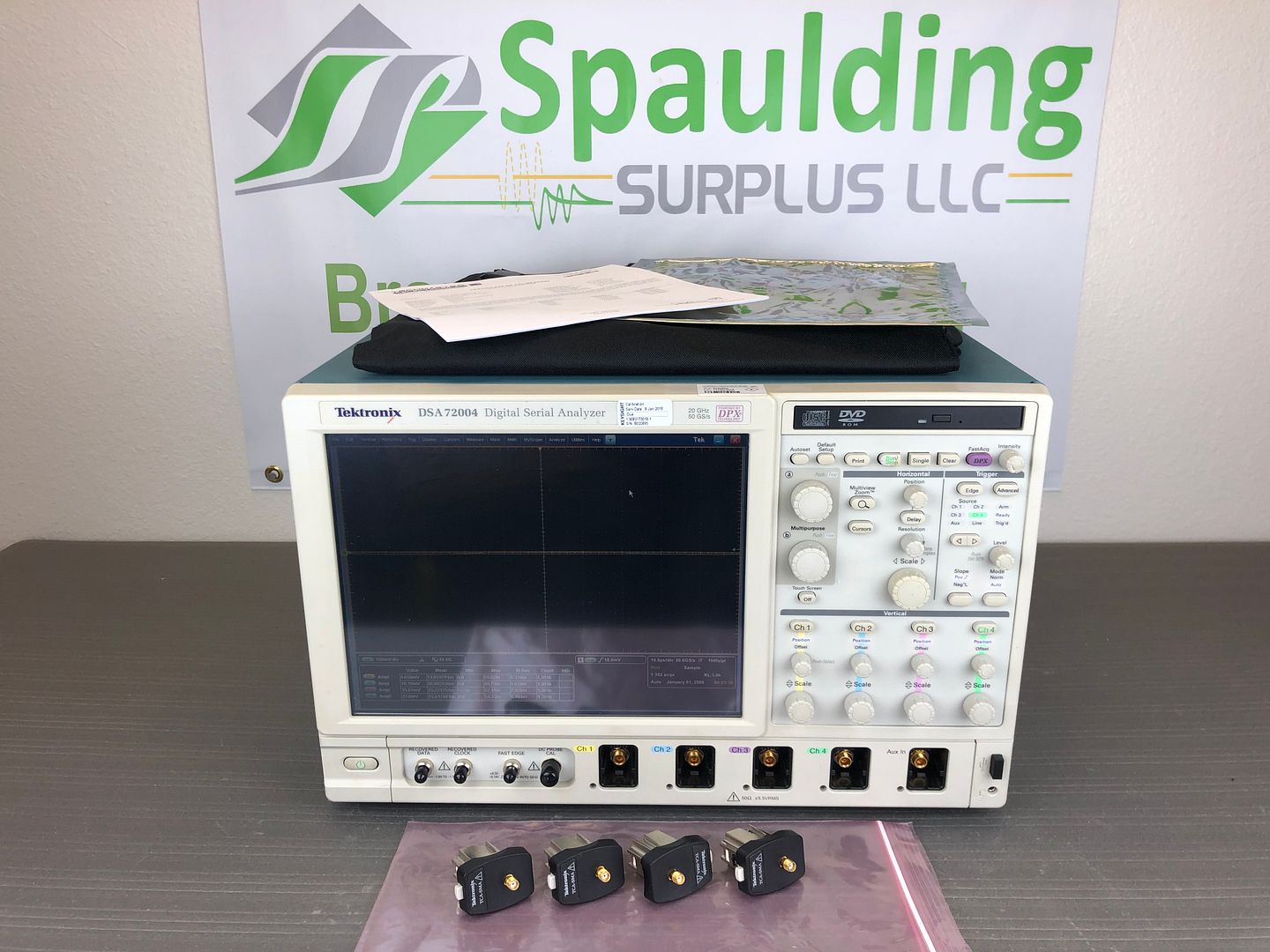

 photo IMG_7259_zps0jtsnxf4.jpg

 photo IMG_7261_zpsaxrcwaay.jpg

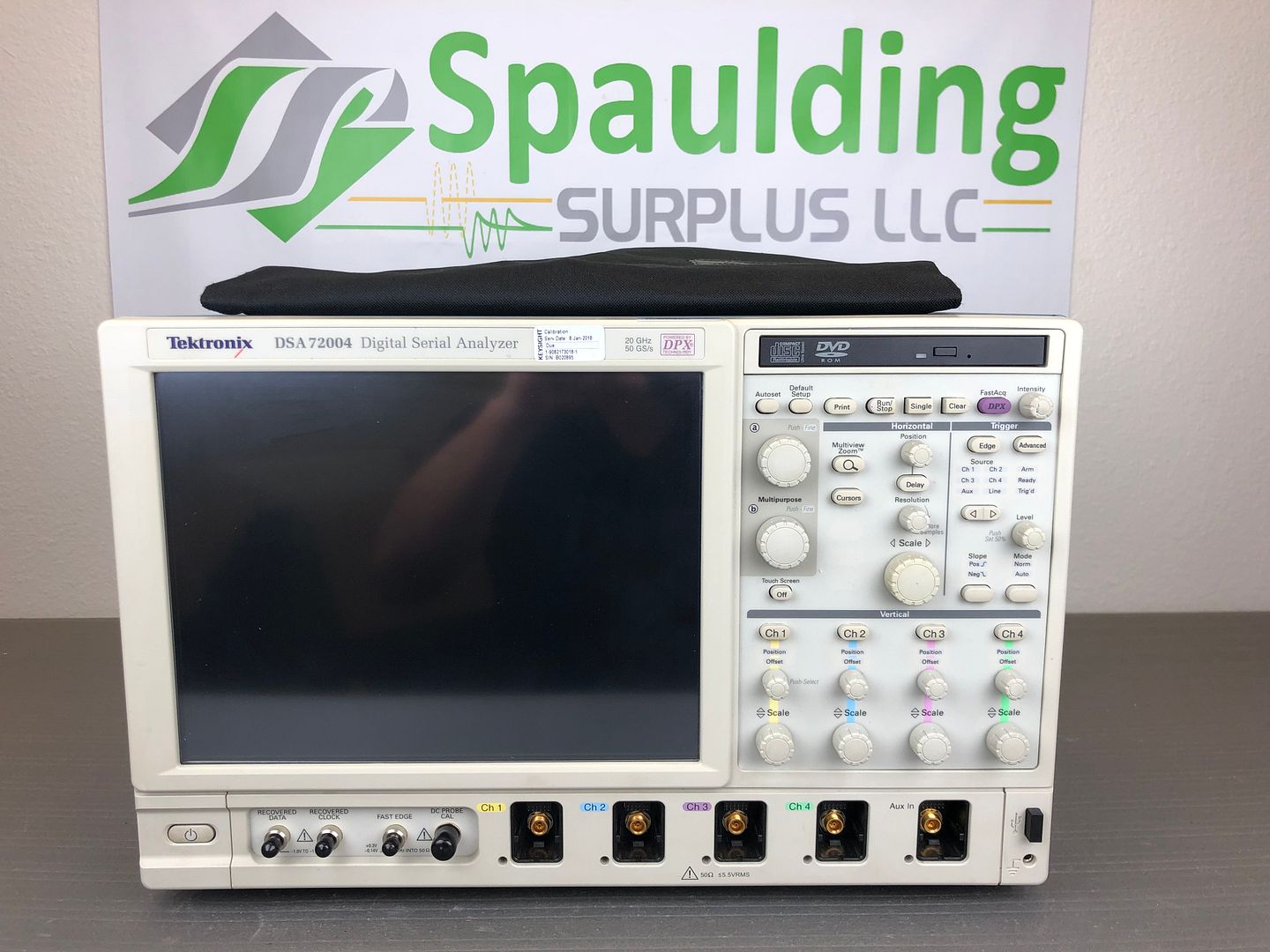

 photo IMG_7250_zpsy2cpr5tx.jpg

 photo IMG_7256_zps6da1qase.jpg

 photo IMG_7258_zpsspvnbvnt.jpg

 photo IMG_7260_zpsgl7kydit.jpg

 photo IMG_7265_zpsidilfunr.jpg photo IMG_7265_zpsidilfunr.jpg

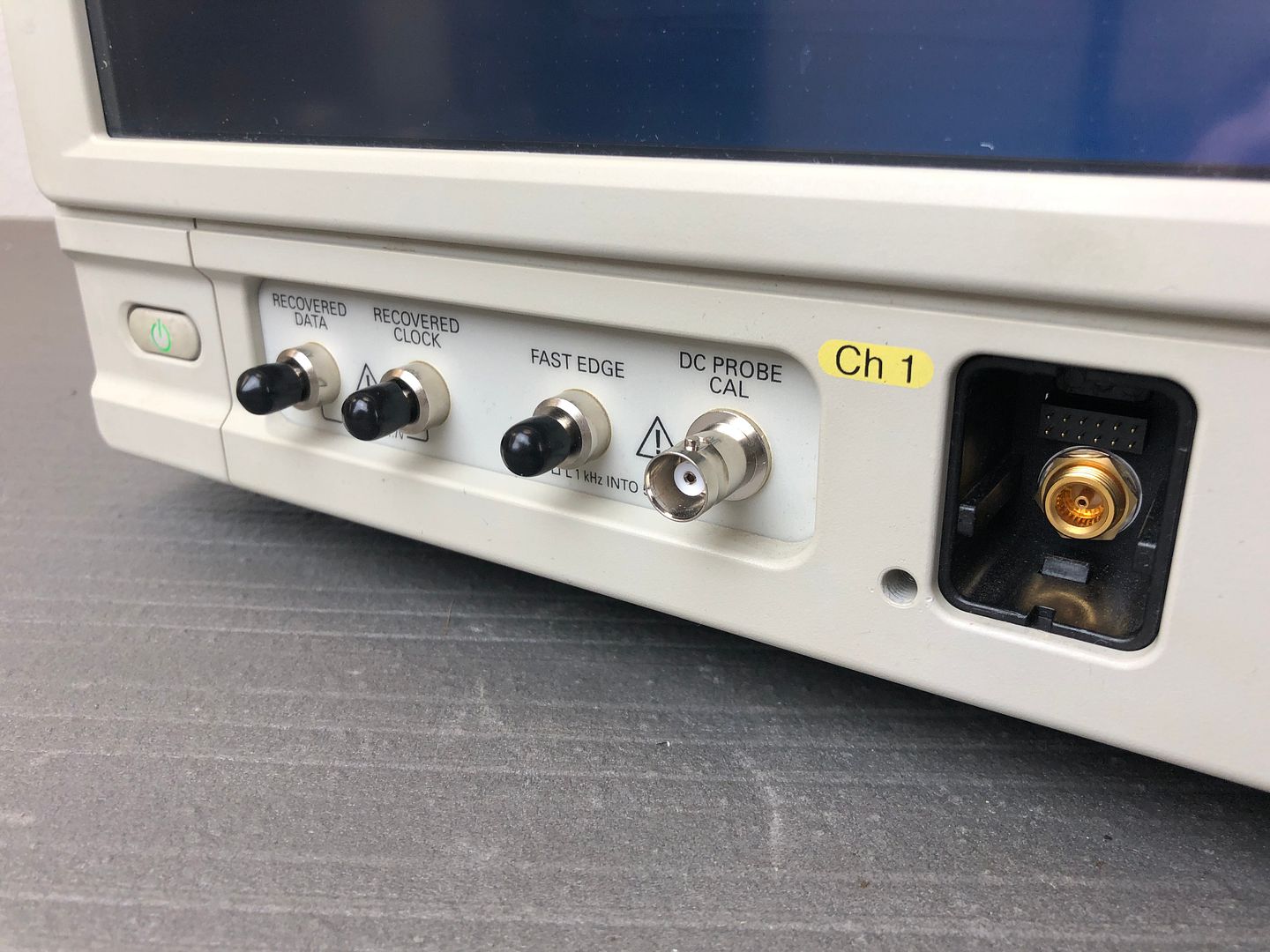

 photo IMG_7268_zpszpxpeyzl.jpg

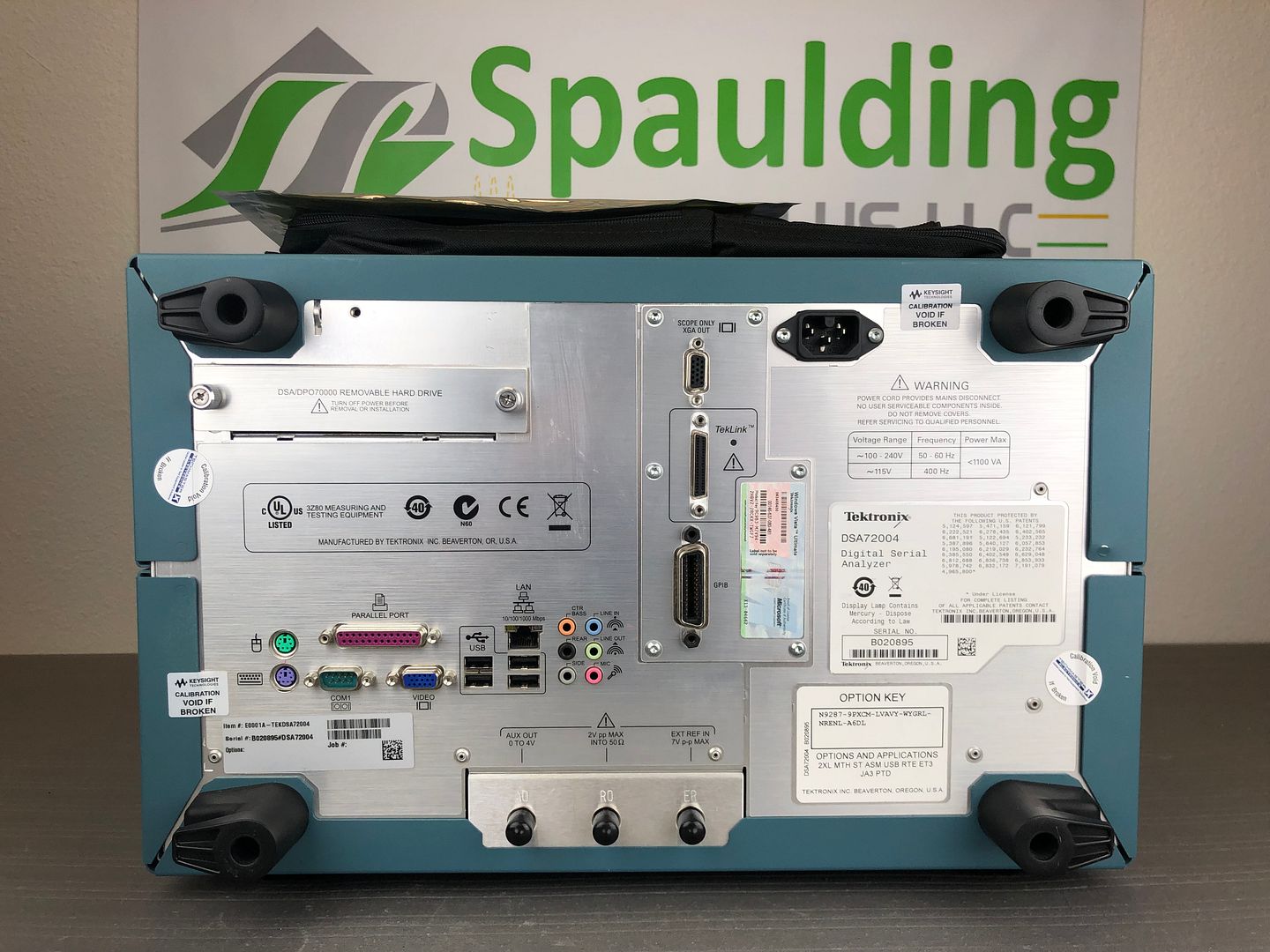

 photo IMG_7271_zpsrk1rsqn8.jpg

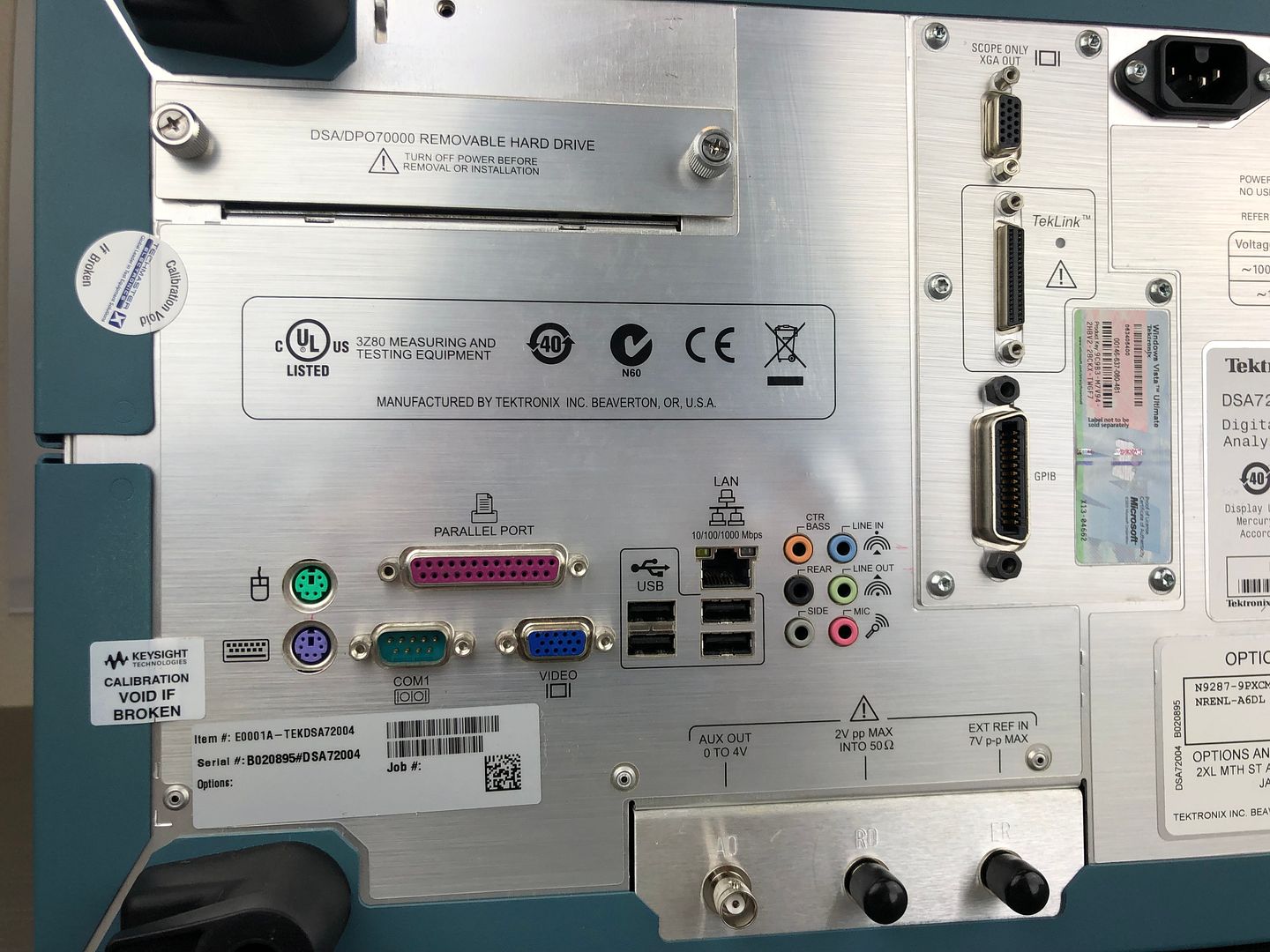

 photo IMG_7272_zpskqfrbtth.jpg

 photo IMG_7276_zps1yxk6vlt.jpg

 photo IMG_7279_zpsgrjo5d6x.jpg

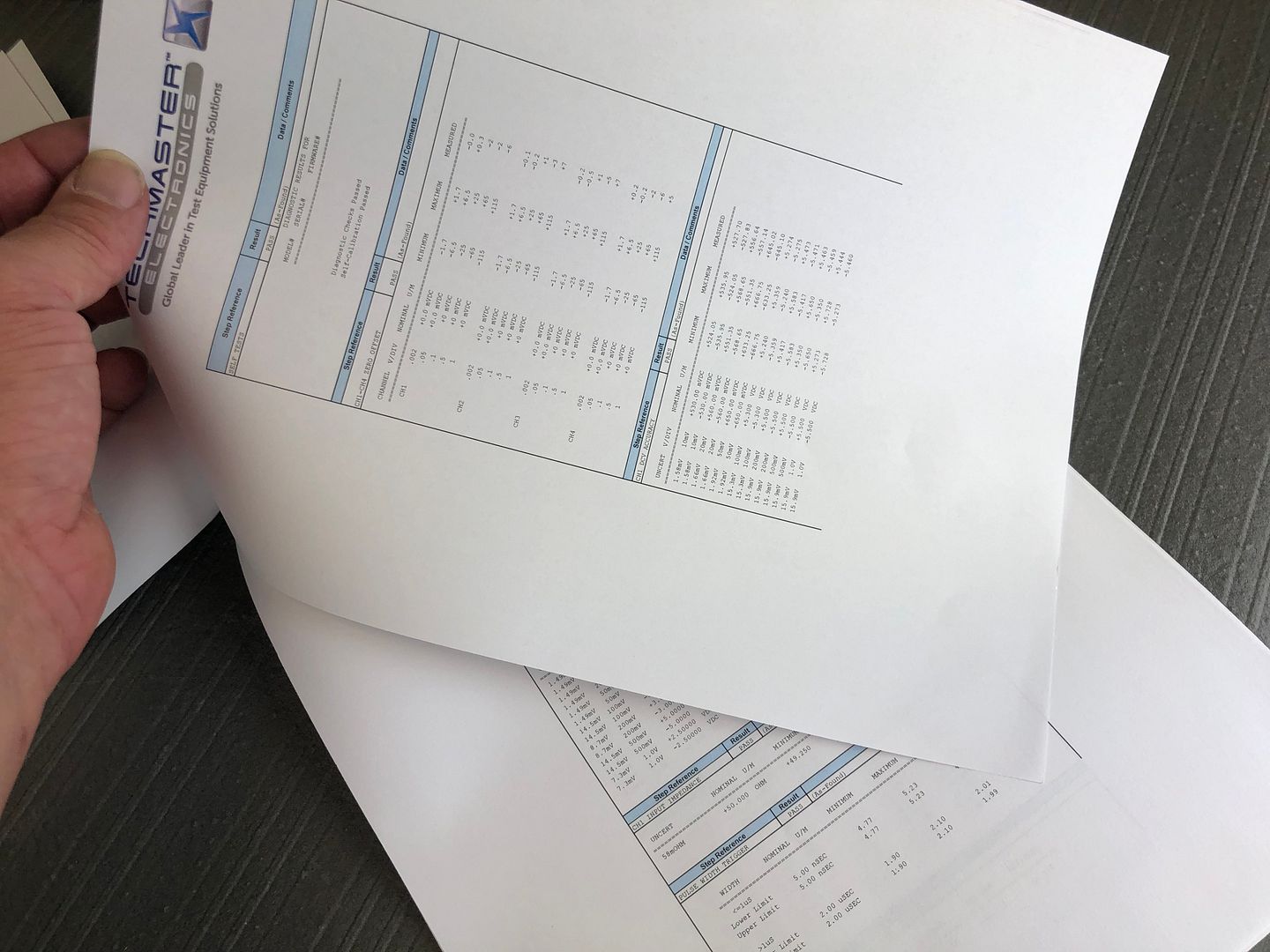

 photo IMG_7280_zpsqqu2n927.jpg

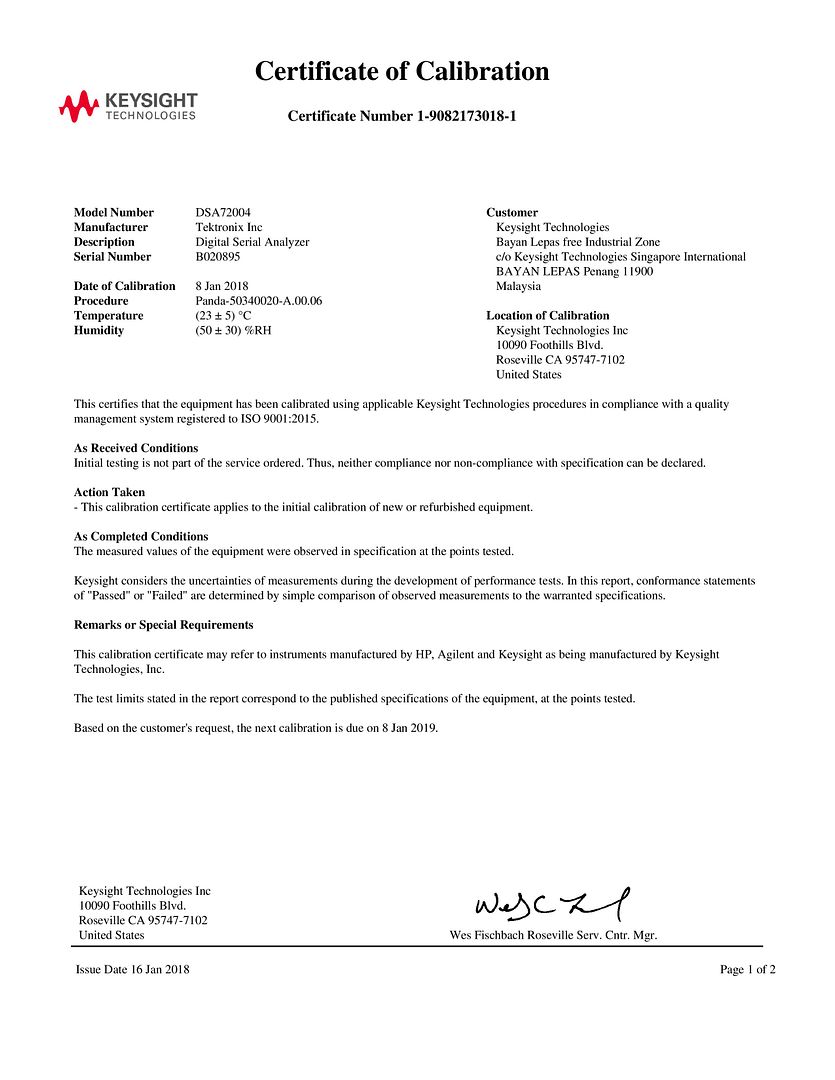

 photo dsa72004cert2_zpsmpffxgej.jpg
