Tektronix MDO4104B-6 1 GHz 4 Channel Mixed Domain Oscilloscope - CALIBRATED!

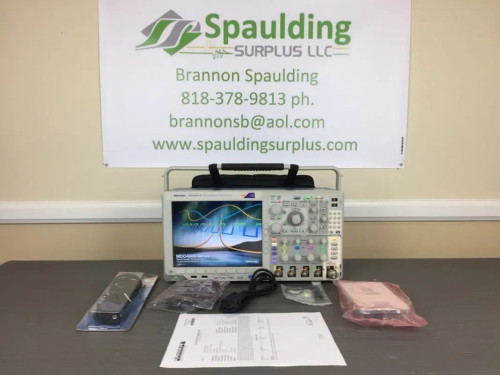

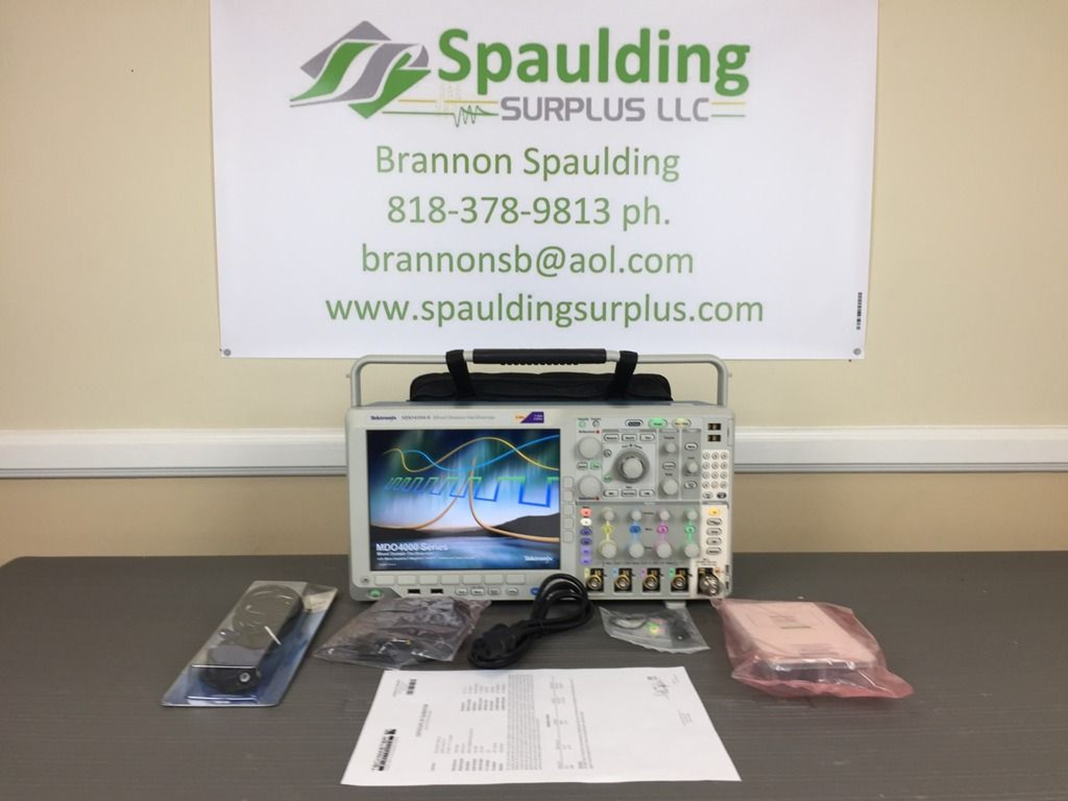

You are bidding on a Tektronix MDO4104B-6 1 GHz 4 Channel Mixed Domain Oscilloscope. It will arrive with a fresh calibration performed by an ISO 17025 accredited lab.
The Tektronix MDO4104B-6 Mixed Domain Oscilloscope provides 4 analog channels of 1 GHz bandwidth with a 350ps rise time. This unit offers an RF channel frequency range from 9 kHz to 6 GHz. Time coordinated analog, digital and RF signal acquisitions are available in this single instrument. Solve complicated design issues quickly and efficiently with an oscilloscope integrated into your design.
Observe the frequency domain, and correlate events with the time that domain phenomena caused them. The spectrum shown in the Frequency Domain view is taken from the period of time indicated by the short orange bar in the time domain view – known as the Spectrum Time. With the MDO4104B-6, Spectrum Time can be moved through the acquisition to investigate how the RF spectrum changes over time. And this can be done while the oscilloscope is live and running or on a stopped acquisition.
With traditional oscilloscope FFTs, you can typically either get the desired view of the FFT display, or the desired view of your other time domain signals of interest, but never both at the same time. This is because traditional oscilloscopes only have a single acquisition system with a single set of user settings such as record length, sample rate, and time per division that drive all data views. But with the Tektronix MDO4104B-6, the spectrum analyzer has its own acquisition system that is independent, but time correlated, to the analog and digital channel acquisition systems. This allows each domain to be configured optimally, providing a complete time correlated system view of all analog, digital, and RF signals of interest.
- Mixed-domain analysis
- Time-correlated analog, digital, and RF signal acquisitions in a single instrument
- Wave Inspector controls provide easy navigation of time-correlated data from both the time and frequency domains
- Amplitude, frequency, and phase vs. time waveforms derived from RF input
- Selectable spectrum time to discover and analyze how RF spectrum changes over time - even on a stopped acquisition
- Spectral analysis
- Dedicated front-panel controls for commonly performed tasks
- Automated peak markers identify frequency and amplitude of spectrum peaks
- Manual markers enable non-peak measurements
- Trace types Include: Normal, Average, Max Hold, and Min Hold
- Detection types include: +Peak, -Peak, Average, and Sample
- Spectrogram display enables easy observation and insight into slowly changing RF phenomena
- Automated measurements include: Channel Power, Adjacent Channel Power Ratio (ACPR), and Occupied Bandwidth (OBW)
- Trigger on RF power level
- Triggered or Free Run spectral analysis
This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.
We will accept payment for this item by company check, cashier’s check and wire transfer only.
If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.
Please note that shipping and insurance costs are non-refundable.
Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.
Make sure that you check out our other auctions for more great deals on test and measurement equipment.
Thank you and good luck bidding
