Product Description

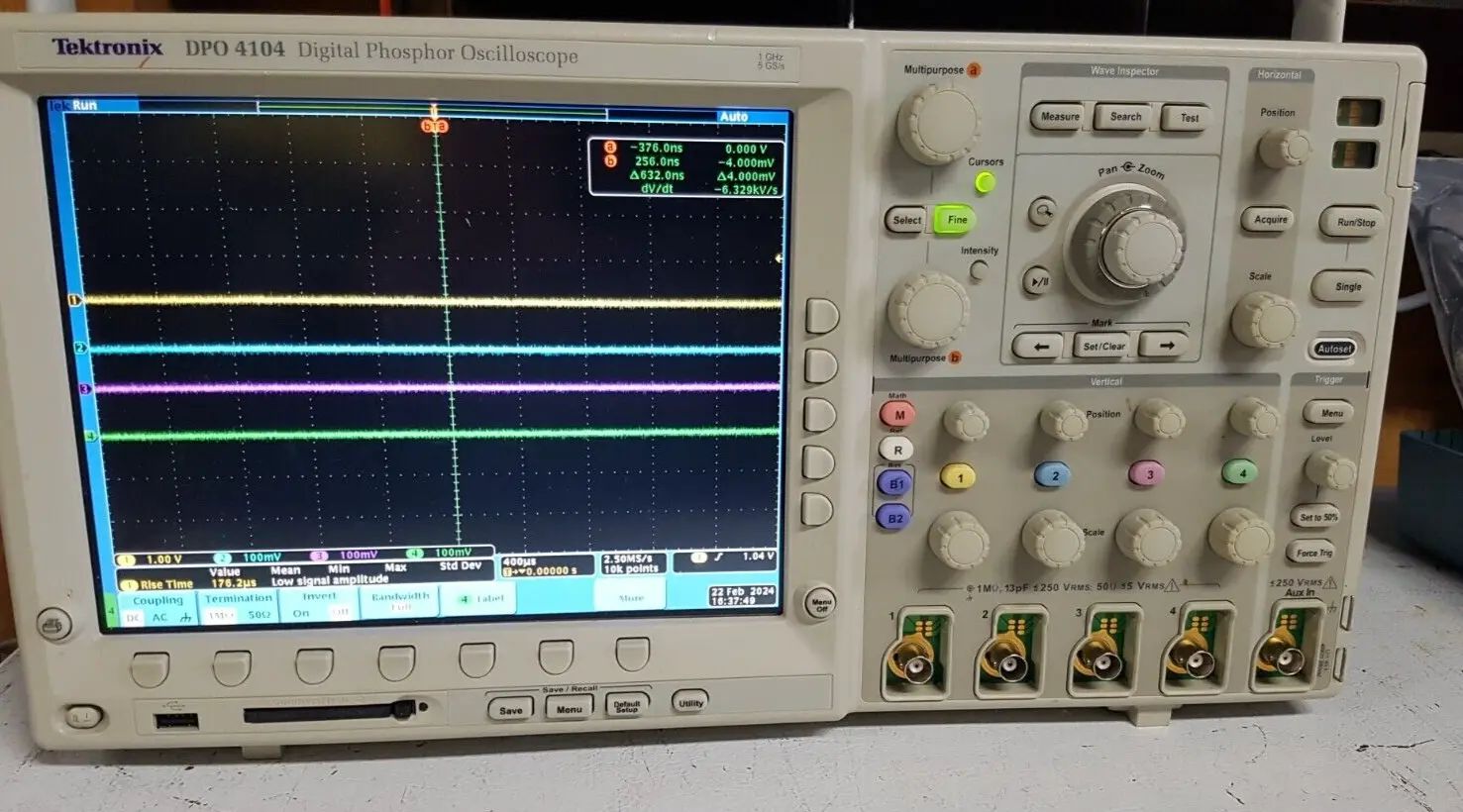

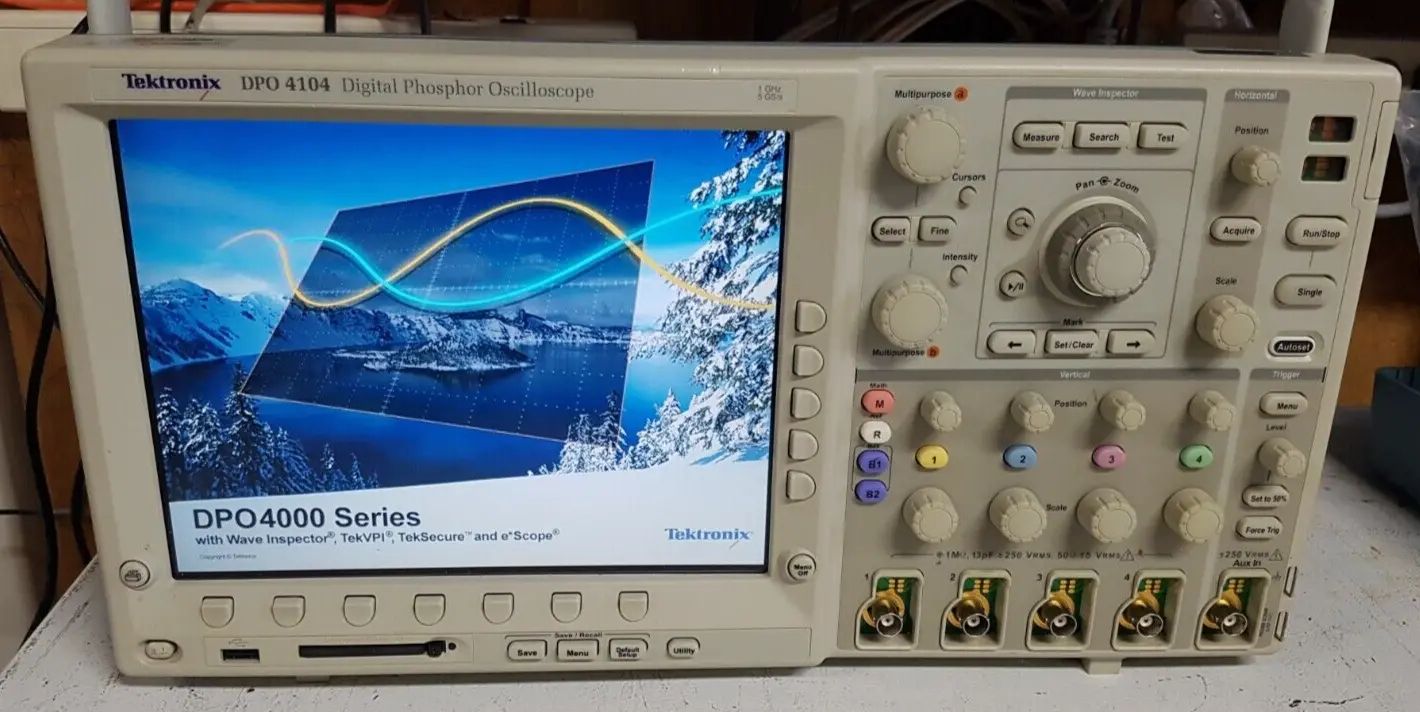

Tektronix DPO4104, 4 Channel, 5 GS/s Digital Oscilloscope with Probes, Accessories, ALL OPTIONS and FRESH CALIBRATION!

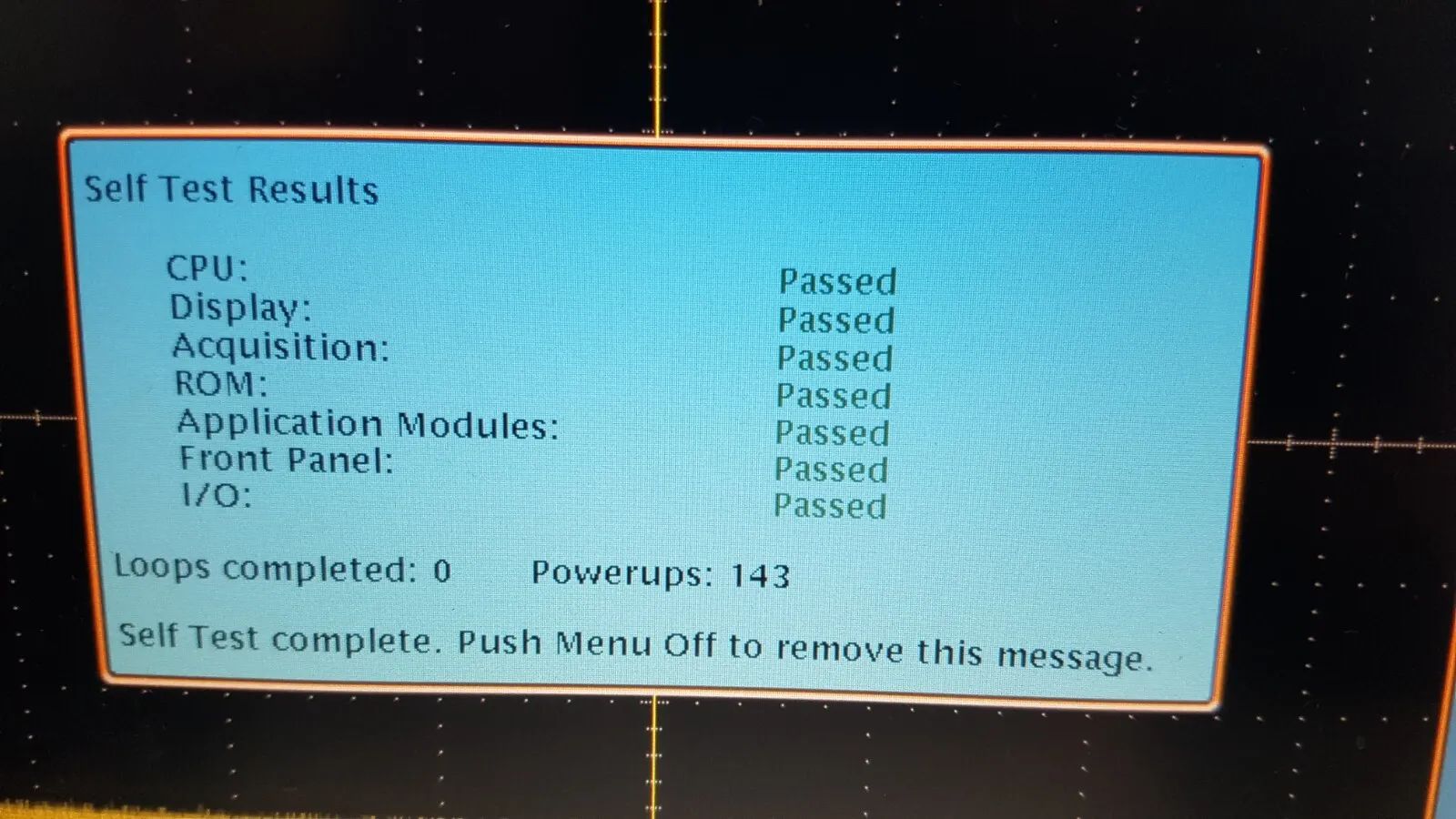

You are bidding on a Tektronix DPO4104, 4 Channel, 5 GS/s Digital Oscilloscope complete with Front dust cover, 4x P6139A Probes and Probe Accessories, 1x P6243 1 GHz Active Probe, Pouches, Manual and CD, etc. ALL 10 OPTIONS are installed on this scope and it only has 143 powerups. It is in excellent condition and will arrive with a fresh calibration performed by an ISO 17025 accredited lab.
DPO4000 Series Digital Phosphor Oscilloscopes are the first oscilloscopes to offer usable deep memory on all channels, excellent performance, serial trigger and analysis options and all in the most compact form factor in their class. The 4000 Series has a large 10.4 in. XGA display and a clean front panel with familiar knobs - all in a package that is only 5.4 in. deep and weighs only 11 lbs. With USB plug-and-play operation and PC connectivity, acquiring data and measurements from the instrument is as simple as connecting a USB cable from the oscilloscope to the PC.

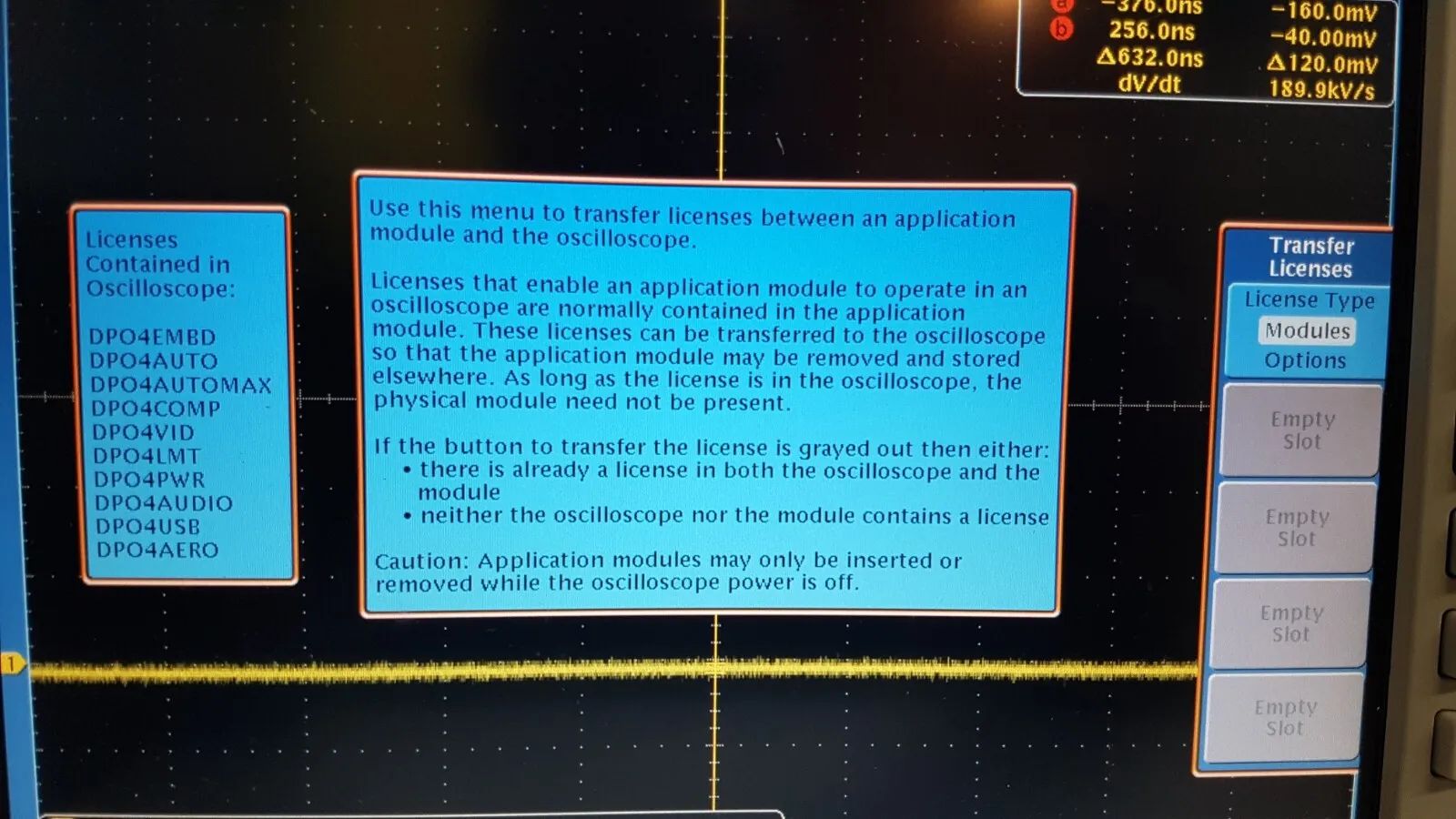

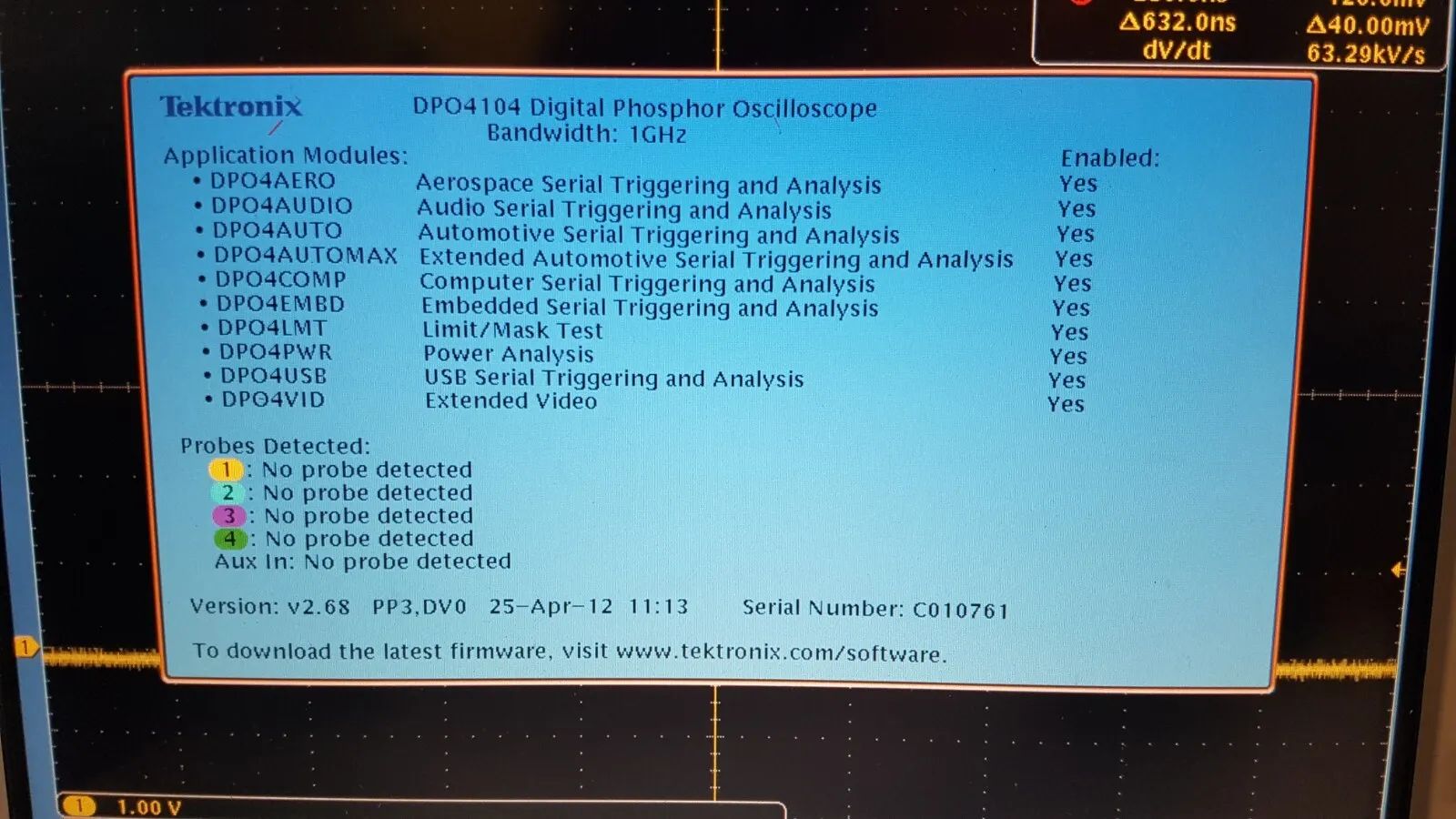

It comes complete with the following personalities loaded:
- DPO4AERO
- DPO4AUDIO
- DPO4AUTO
- DPO4AUTOMAX
- DPO4COMP
- DPO4EMBD
- DPO4LMT
- DPO4PWR
- DPO4USB
- DPO4VID

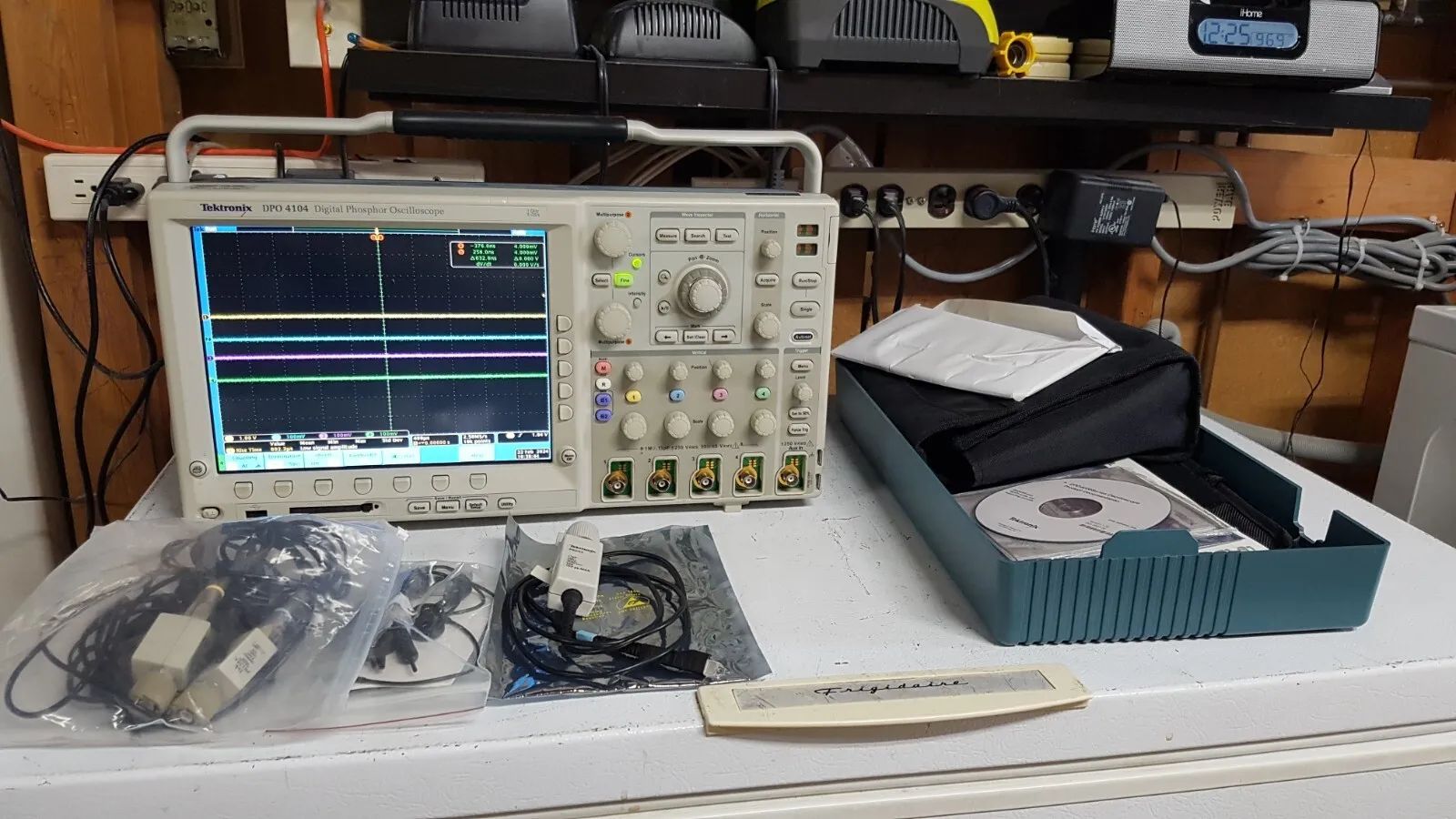

It has the following included (as originally shipped):
- Front dust cover
- 4x P6139A probes and probe accessories
- Pouches
- Manual and CD as shipped
Additionally it has:
- P6243 1 GHz Active probe (not checked for the auction) Quantity 1
Features:
Input Channels: 4
1 GHz
Sample Rates Up to 5 GS/s on All Channels
10 Megasample Record Length on All Channels
Wave Inspector Controls Provide Unprecedented Efficiency in Waveform Analysis
I2C, SPI, CAN Serial Triggering and Analysis
10.4 in. (264 mm) XGA Color Display
Small Footprint and Lightweight Only 5.4 in. (137 mm) Deep and 11 lbs. (5 kg)
USB and CompactFlash on Front Panel for Quick and Easy Storage
Built-in Ethernet Port
Plug n Play Connectivity and Analysis Software Solutions
USB 2.0 Device Port for Direct PC Control of Oscilloscope Using USBTMC
Suite of Advanced Triggers
Scope Remote Viewing and Control
Interoperability with Tektronix Logic Analyzers
TekVPI Probe Interface Supports Active, Differential and Current Probes
This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.
We will accept payment for this item by company check, cashier’s check and wire transfer only.
If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.
Please note that shipping and insurance costs are non-refundable.
Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.
Make sure that you check out our other auctions for more great deals on test and measurement equipment.
Thank you and good luck bidding
