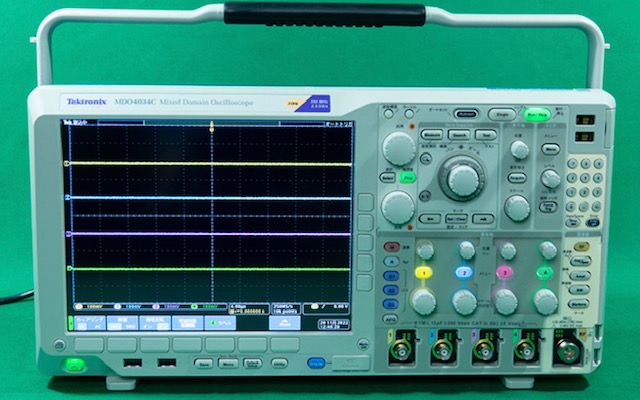

Tektronix MDO4034C-SA3 350 MHz 4 Channel 5 GS/s Oscilloscope with Qty 4 TPP0500B 500 MHz Probes - CALIBRATED!
You are bidding on a Tektronix MDO4034C-SA3 350 MHz 4 Channel 2.5 GS/s Oscilloscope with Qty 4 TPP0500B 500 MHz Probes included. The SA3 Option gives the scope 9 kHz - 3 GHz Spectrum Analyzer capabilities. It will arrive with a fresh calibration performed by and ISO 17025 accredited lab. The MDO4034C with the SA3 option is currently sold by Tektronix for $22,740 USD!
The Tektronix MDO4034C 350 MHz, 4-Channel, 5 GS/s Mixed Domain Oscilloscope, 20M Record Length includes a spectrum analyzer, arbitrary/function generator, logic analyzer, protocol analyzer and DVM/frequency counter.
The MDO4034C has the performance you need to solve the toughest embedded design challenges quickly and efficiently. When configured with an integrated spectrum analyzer, it is the only instrument that provides simultaneous and synchronized acquisition of analog, digital and spectrum, ideal for incorporating wireless communications (IoT) and EMI troubleshooting. The MDO4034C is completely customizable and fully upgradable so you can add the instruments you need now, or later.
Features:
- Base unit with SA3 Option: 9 kHz - 3 GHz Spectrum Analyzer
- Bandwidth: 350 MHz
- Bandwidth is upgradeable up to 1 GHz
- 4 Analog Channels
- Sample Rate: 2.5 GS/s
- Record Length: 20 M record length on all channels
- > 340,000 wfm/s maximum waveform capture rate
- Performance 6-in-1 integrated oscilloscope with synchronized insights into analog, digital and spectral signals
- Digital Voltmeter / Frequency Counter (Free with product registration)
- TPP0500B: 500 MHz bandwidth, 10X, 3.9 pF. One passive voltage probe per analog channel
- Warranty: Three-year warranty covering all parts and labor on the MDO4000C instrument. One-year warranty covering parts and labor on included probes.
Typical Applications:
- Embedded design
- Power design
- EMI troubleshooting
- Wireless troubleshooting
- Education
- Manufacturing Test and Troubleshooting
Spectrum Analyzer: Option SA3
- Frequency range of 9 kHz - 3 GHz
- Ultra-wide capture bandwidth ≥1 GHz
- Time-synchronized capture of spectrum analyzer with analog and digital acquisitions
- Frequency vs. time, amplitude vs. time, and phase vs. time waveforms
Arbitrary/Function Generator (Optional)
- 13 predefined waveform types
- 50 MHz waveform generation
- 128 k arbitrary generator record length
- 250 MS/s arbitrary generator sample rate
Logic Analyzer (Optional)
- 16 digital channels
- 20 M record length on all channels
- 60.6 ps timing resolution
Protocol Analyzer (Optional)
- Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, Ethernet, CAN, CAN FD, LIN, FlexRay, MIL-STD-1553, and Audio standards
Digital Voltmeter / Frequency Counter (Free with product registration)
- 4-digit AC RMS, DC, and AC+DC RMS voltage measurements
- 5-digit frequency measurements
The MDO4034C SA3 has the performance you need to solve the toughest embedded design challenges quickly and efficiently. When configured with an integrated spectrum analyzer, it is the only instrument that provides simultaneous and synchronized acquisition of analog, digital and spectrum, ideal for incorporating wireless communications (IoT) and EMI troubleshooting. The MDO4034C SA3 is completely customizable and fully upgradeable so you can add the instruments you need now-or later.

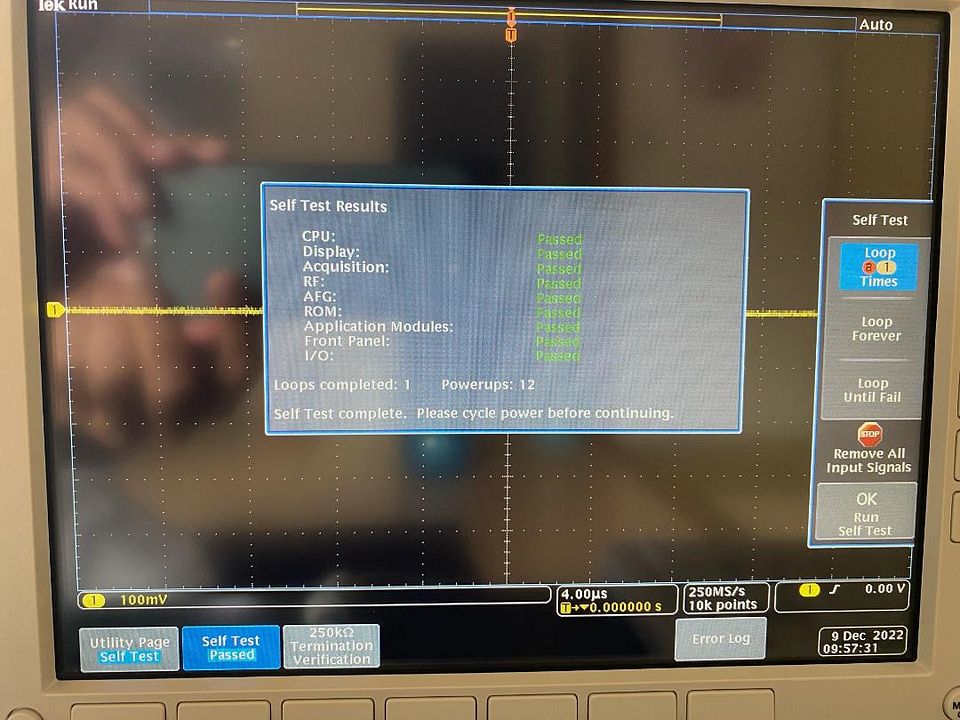

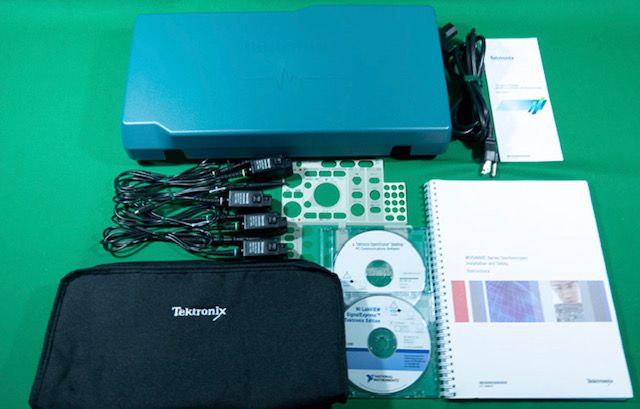

This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.
We will accept payment for this item by company check, cashier’s check and wire transfer only.
If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.
Please note that shipping and insurance costs are non-refundable.
Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.
Make sure that you check out our other auctions for more great deals on test and measurement equipment.
Thank you and good luck bidding
