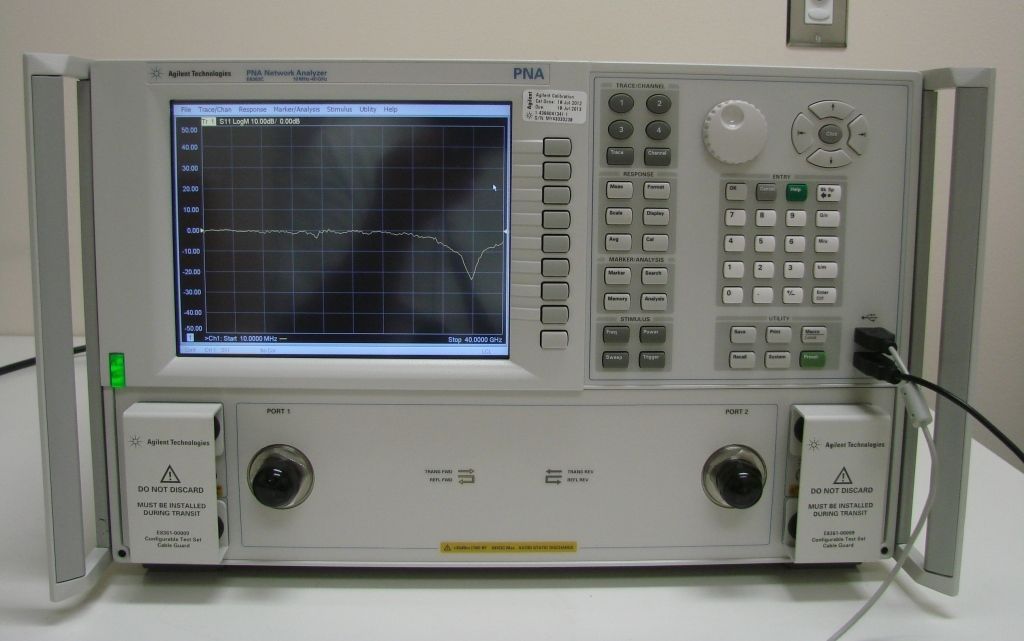

You are bidding on an Agilent / Keysight E8363C 10 MHz - 40 GHz PNA Vector Network Analyzer with Options 014 (Configurable Test Set), 016 (Add Receiver Attenuators) and UNL (Extended Power Range with Bias Tees) Installed. It will arrive with a fresh manufacturer calibration with full test data performed by Keysight Technologies!

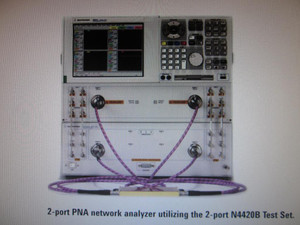

The Agilent E8363C Network Analyzer is part of Agilent's PNA series of network analyzers (Performance Network Analyzers) and features the highest levels of accuracy for your critical needs. The Agilent E8363C has a wide frequency range of 10 MHz to 40 GHz and has 2-Ports (4 with the N4420B Test Set) and 4 Receivers. An integrated S-parameter test set with four receivers allows true TRL calibration. TRM/LRM calibration, on-wafer, in-fixture, waveguide and antenna measurements are all part of this Network Analyzers capabilities. A large 8.4 LCD front panel display with touch screen (1024x768 resolution) is integrated into the instrument. Enhanced Windows graphical user interface. Hard keys and soft keys for simple operation without a mouse are featured. The Agilent N4420B S-parameter test set combined with 2-port PNA or PNA-L network analyzer and Option 550, offers a complete solution for 4-port measurements. THIS SYSTEM HAS A LIST PRICE OF OVER 140K!
Agilent E8363C Features:
< 26 usec/point measurement speed
Measurement channels: 32 independent measurement channels
Measured number of points per sweep: User definable from 2 to 20,001
110 dB Dynamic Range
Amplifier gain compression, harmonic, IMD, and pulsed-RF
Mixer conversion loss, return loss, isolation, and absolute group delay
Trace noise: < 0.006 dB rms at 1 kHz IF bandwidth standard and with option 14
Nominal power: -12 dBm standard, -17 dBm with options 14 and UNL
Frequency resolution: 1 Hz
Phase noise: -50 dBc at 1 kHz offset nominal
Test port noise floor: < -114 dBm 10 Hz IF bandwidth standard
IF bandwidth range: 1 Hz to 40 kHz, nominal
RF connectors 2.4mm male (50ohm)
VGA video output-15-pin mini D-Sub
Interfaces:
-GPIB-Two ports: dedicated controller and dedicated talker/listener
-USB-1 port on front panel and 4 ports on rear panel
-LAN-10/100 BaseT Ethernet; 8-pin configuration auto selects
This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes w/ a 14 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
