Agilent E8363C 10 MHz - 40 GHz PNA Vector Network Analyzer w/ N4420B Test Set

$95,000.00

(No reviews yet) Write a Review

SKU:: 352451938353
Condition:: Refurbished
Brand:: Agilent / HP
Model:: E8363C & N4420B
MPN:: E8363C & N4420B
Unit Type:: Complete Systems & Mainframes
Manufacturer:: Agilent / HP
Analyzer Type:: Network Analyzers
Country of Manufacture:: United States

Agilent E8363C 10 MHz - 40 GHz PNA Vector Network Analyzer w/ N4420B Test Set

Current Stock:

Quantity:

Product Description

Seller refurbished

Shop Categories

All Categories

We buy, sell and rent general purpose, optical and RF test and measurement equipment. We pay top dollar for your unwanted, surplus or defective gear. Let us make you an offer on your new or used Agilent, Tektronix, Anritsu, Fluke, Rohde & Schwarz and IFR instruments.

Agilent E8363C 10 MHz - 40 GHz PNA Vector Network Analyzer w/ N4420B Test Set

Item Description

Agilent E8363C 10 MHz - 40 GHz 4-Port PNA Vector Network Analyzer w/ N4420B Test Set - CALIBRATED!

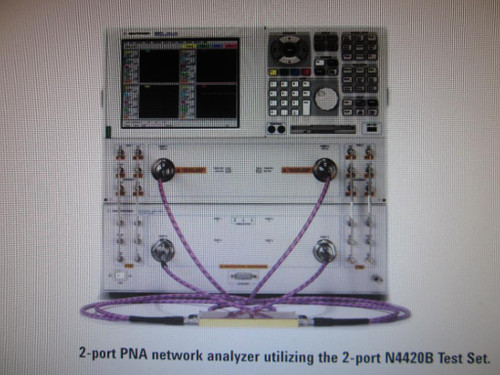

You are bidding on a complete 4-port, 10 MHz to 40 GHz Vector Network Analyzer System consisting of an Agilent E8363C 40 GHz PNA Vector Network Analyzer with Option 550 (Enables full, 4-port error correction and differential measurements on a 2-port network analyzer) and an Agilent N4420B S-Parameter Test Set. This system is currently being calibrated at Agilent's Roseville, CA facility and it will come with a fresh Agilent calibration with certificate and data. Pictures of the actual system to follow. The Agilent E8363C Network Analyzer is part of Agilent's PNA series of network analyzers (Performance Network Analyzers) and features the highest levels of accuracy for your critical needs. The Agilent E8363C has a wide frequency range of 10 MHz to 40 GHz and has 2-Ports (4 with the N4420B Test Set) and 4 Receivers. An integrated S-parameter test set with four receivers allows true TRL calibration. TRM/LRM calibration, on-wafer, in-fixture, waveguide and antenna measurements are all part of this Network Analyzers capabilities. A large 8.4 LCD front panel display with touch screen (1024x768 resolution) is integrated into the instrument. Enhanced Windows graphical user interface. Hard keys and soft keys for simple operation without a mouse are featured. The Agilent N4420B S-parameter test set (also included), combined with 2-port PNA or PNA-L network analyzer and Option 550, offers a complete solution for 4-port measurements. THIS SYSTEM HAS A LIST PRICE OF OVER 160K!

Agilent E8363C Features:

< 26 usec/point measurement speed

Measurement channels: 32 independent measurement channels

Measured number of points per sweep: User definable from 2 to 20,001

110 dB Dynamic Range

Amplifier gain compression, harmonic, IMD, and pulsed-RF

Mixer conversion loss, return loss, isolation, and absolute group delay

Trace noise: < 0.006 dB rms at 1 kHz IF bandwidth standard and with option 14

Nominal power: -12 dBm standard, -17 dBm with options 14 and UNL

Frequency resolution: 1 Hz

Phase noise: -50 dBc at 1 kHz offset nominal

Test port noise floor: < -114 dBm 10 Hz IF bandwidth standard

IF bandwidth range: 1 Hz to 40 kHz, nominal

RF connectors 2.4mm male (50ohm)

VGA video output-15-pin mini D-Sub

Interfaces:

-GPIB-Two ports: dedicated controller and dedicated talker/listener

-USB-1 port on front panel and 4 ports on rear panel

-LAN-10/100 BaseT Ethernet; 8-pin configuration auto selects

Agilent N4420B Features:

Frequency range: 10 MHz to 40 GHz

Supports balanced measurement

Solid-state switches for fast and reliable measurement Controlled directly by network analyzer when used with PNA/PNA-L option 550

Recommended PNA series E8363C

Analyze eye diagram for high bit rates

Extract RLCG for differential transmission line modeling

Improve design with spatial resolution of 18ps

You can view the specs for the Agilent E8363C here: Data Sheet

You can view the specs for the Agilent N4420B here: Data Sheet

This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes w/ a 14 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
