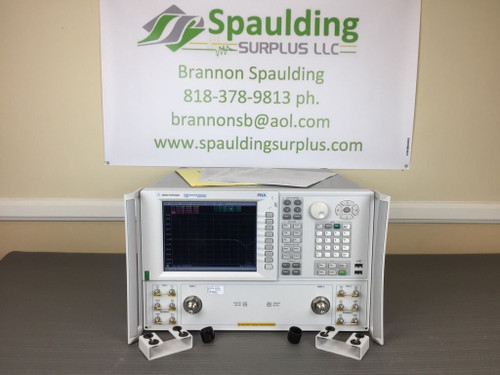

Agilent E8363C 10 MHz - 40 GHz PNA Vector Network Analyzer w/ Opts 014/016/UNL

You are bidding on an Agilent / Keysight E8363C 10 MHz - 40 GHz PNA Vector Network Analyzer with Options 014 (Configurable Test Set), 016 (Add Receiver Attenuators) and UNL (Extended Power Range with Bias Tees) Installed.  It will arrive with a fresh manufacturer calibration with full test data performed by Keysight Technologies!

The Agilent E8363C Network Analyzer is part of Agilent's PNA series of network analyzers (Performance Network Analyzers) and features the highest levels of accuracy for your critical needs. The Agilent E8363C has a wide frequency range of 10 MHz to 40 GHz and has 2-Ports (4 with the N4420B Test Set) and 4 Receivers. An integrated S-parameter test set with four receivers allows true TRL calibration. TRM/LRM calibration, on-wafer, in-fixture, waveguide and antenna measurements are all part of this Network Analyzers capabilities. A large 8.4 LCD front panel display with touch screen (1024x768 resolution) is integrated into the instrument. Enhanced Windows graphical user interface. Hard keys and soft keys for simple operation without a mouse are featured. The Agilent N4420B S-parameter test set combined with 2-port PNA or PNA-L network analyzer and Option 550, offers a complete solution for 4-port measurements. THIS SYSTEM HAS A LIST PRICE OF OVER 140K!

Agilent E8363C Features:

< 26 usec/point measurement speed

Measurement channels: 32 independent measurement channels

Measured number of points per sweep: User definable from 2 to 20,001

110 dB Dynamic Range

Amplifier gain compression, harmonic, IMD, and pulsed-RF

Mixer conversion loss, return loss, isolation, and absolute group delay

Trace noise: < 0.006 dB rms at 1 kHz IF bandwidth standard and with option 14

Nominal power: -12 dBm standard, -17 dBm with options 14 and UNL

Frequency resolution: 1 Hz

Phase noise: -50 dBc at 1 kHz offset nominal

Test port noise floor: < -114 dBm 10 Hz IF bandwidth standard

IF bandwidth range: 1 Hz to 40 kHz, nominal

RF connectors 2.4mm male (50ohm)

VGA video output-15-pin mini D-Sub

Interfaces:

-GPIB-Two ports: dedicated controller and dedicated talker/listener

-USB-1 port on front panel and 4 ports on rear panel

-LAN-10/100 BaseT Ethernet; 8-pin configuration auto selects

You can view the specs for this unit here: Product Specs
